Bluetooth 5.0 Digital Power Amplifier HiFi Class D Amplifier 50Wx2 USB TF Card Player w/ Power Adapter+3pcs Cables
Specification:
Channel: 2.0 stereo
Output power: 50W+50W
Power requirements: DC 9V-24V
Bluetooth distance: at least 12m ( no obstacles)
Bluetooth protocol: Bluetooth 5.0
Size: 110*90*50mm
Weight: 160g
Audio input: 3.5mm stereo input, RCA stereo input, TF card, USB audio input (can be connected to computer, mobile phone/OTG/pad OTG)
Supported equipment: mobile phone, pad, TV, computer, set-top box, CD player, music player
Functions:
-U disk play
-TF card play
-AUX audio
-Lossless sound quality
-Drive-free, plug and play
-USB interface
Features:
-Bluetooth 5.0 transmission, stable signal, long transmission distance, intelligent compatibility with more than 99% of devices.
-Support U disk and TF card playback, support multiple format decoding (MP3/WAV/APE/FLAC). MP3: sampling rate/8~48K, bit rate/8-448Kbps, bit width/16bts channel/mono stereo ; WAV: sampling rate/8~48K, format/WAV ima/ Microsoft AD PCM/WAV PCM, bit width/16bts; FLAC: sampling rate/8-48K, bit width/16bits; APE: FAST/ NORMAL encoding, bit width /16bits.
-Support mobile phones, tablets, TVs, computers, set-top boxes, CD players, music players and other devices.
How to Connect Bluetooth:
Step 1: Switch the amplifier to Bluetooth mode;
Step 2: Turn on the device Bluetooth, search for APPJ mimidamp play and connect;
Step 3: Bluetooth connection is successful.
Power:
The power amplifier adopts TPA3116 chip, the actual output power can reach 50W per channel, 2 channels total 100W (24V power supply), equipped with 12V 5A power supply. The output power is 30W*2 (4 ohms). If 8 ohm sound is connected, the output will be about 15W*2. If you need more power, you can configure the power supply by yourself. Be careful not to exceed 24V, otherwise the chip will be burned. The power supply can not be too small, because power = voltage * current, if the current power is less than 50W, there may be a power failure.
Amplifier Output:
The power amplifier is a constant resistance power amplifier, which supports 4/6/8/16 ohm passive speakers/speakers. It cannot be connected to active speakers such as computer audio, and is not suitable for passive subwoofers. The 4 pillars behind the amplifier are output interfaces, and 3.5mm headphone plugs or lotus plugs cannot be connected.

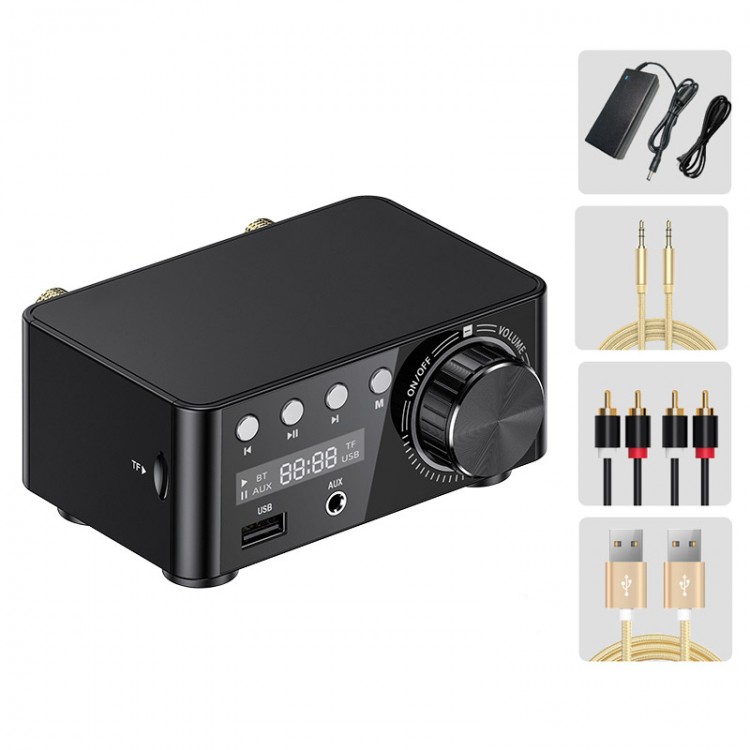

Package List:
-1 x Power Amplifier
-1 x Power Adapter
-1 x3.5mm Audio Signal Cable
-1 x RCA Audio Signal Cable
-1 x USB Data Cable
Note:
-The power amplifier is available in black and silver.
-If you want to retrofit to the car or use battery power, etc., it must be limited to 24V 5A or less. The power amplifier plug specifications are 5.5*2.5 or 5.5*2.1.
