Bluetooth 5.0 Version CSR8675 Bluetooth Module Lossless Decoder Support for APTX-HD and LDAC
Description:
- For APTX-HD + LDAC version: support SBC/AAC/APTX/APXT-LL/APTX-HD/LDAC
- In APTX-HD connection mode, it operates with high fidelity at a high transmission rate of 24bit/48khz/576kbps.
- Fully sealed linear power supply ensures a good foundation for sound quality.
- It uses a large number of fever components, such as the power supply using a 220VAC linear power supply for Yaohua sealed square transformer power supply. (Please leave a message if you need the 110V power supply)
- It adopts the capacitors of filter electrolysis for ELNA, SMD capacitors for SAMSUNG and resistors for PANASONIC.
- High speed rectifier bridge, high-quality all-copper gold-plated output terminals for CMC imported from the United States and connected with silver plated signal cables for Teflon to ensure the sound quality output.

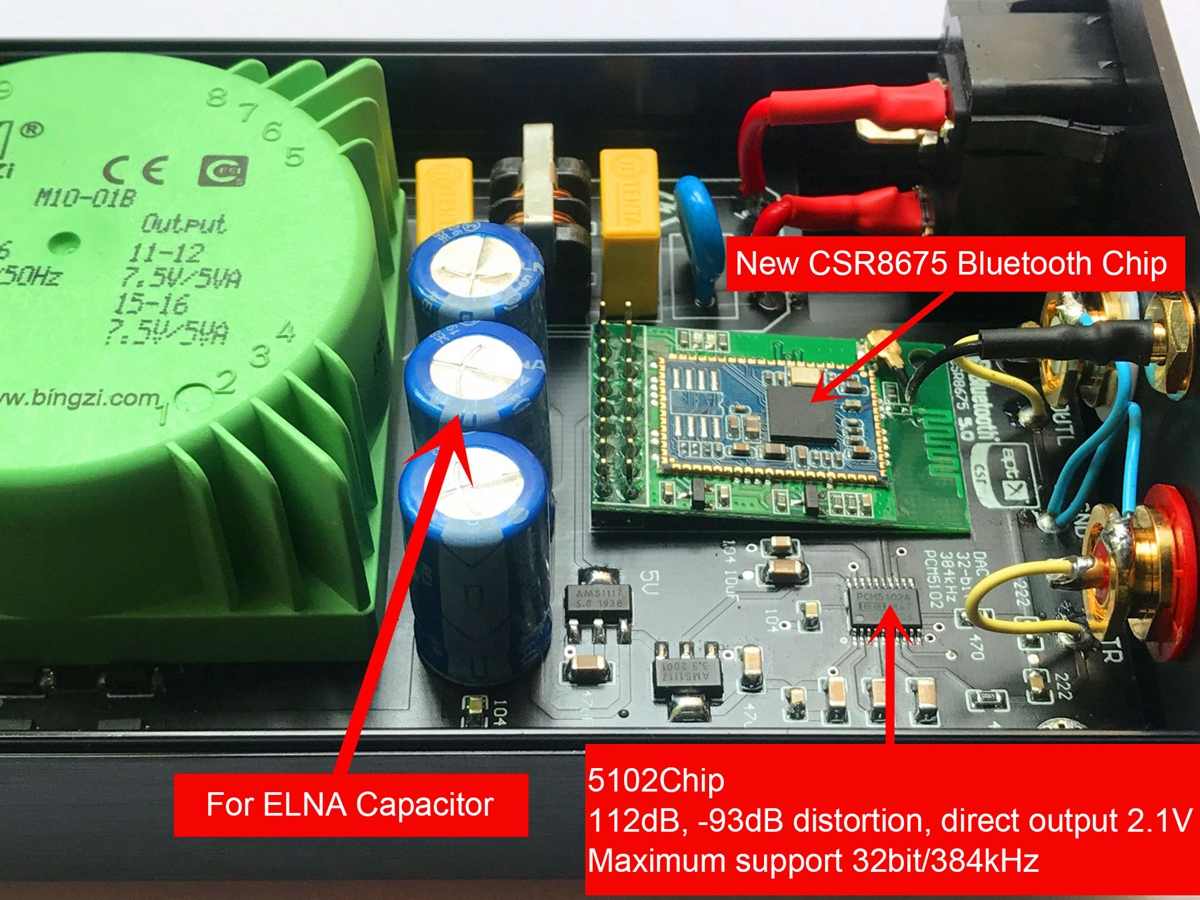

- The digital to analog conversion DAC uses the new 5102A decoding core for BB Company. It is a 24-bit stereo sound frequency digital to analog conversion chip (DAC).
- The dynamic range reaches 112dB, with a distortion of - 93dB, and a direct output of 2.1V (no operational amplifier required for the output) RMS audio voltage.
- All aluminum alloy housing eliminates external electromagnetic interference.
- Size: 92 x 47 x 160mm
Package Included:
- 1 x Decoder Board
- 1 x Power Adapter
- 1 x Bluetooth Antenna
Attention:
- If it is a mobile phone that supports for APTX-HD, for APTX-HD audio will be displayed directly in developer mode after connecting to the native Bluetooth. For APTX-HD is a 24 bit lossless Bluetooth protocol with much higher audio quality than ordinary Bluetooth. If it is an unsupported mobile phone or Bluetooth device, even it is equipped with the option for APTX-HD, it will jump back to normal mode after selection.
