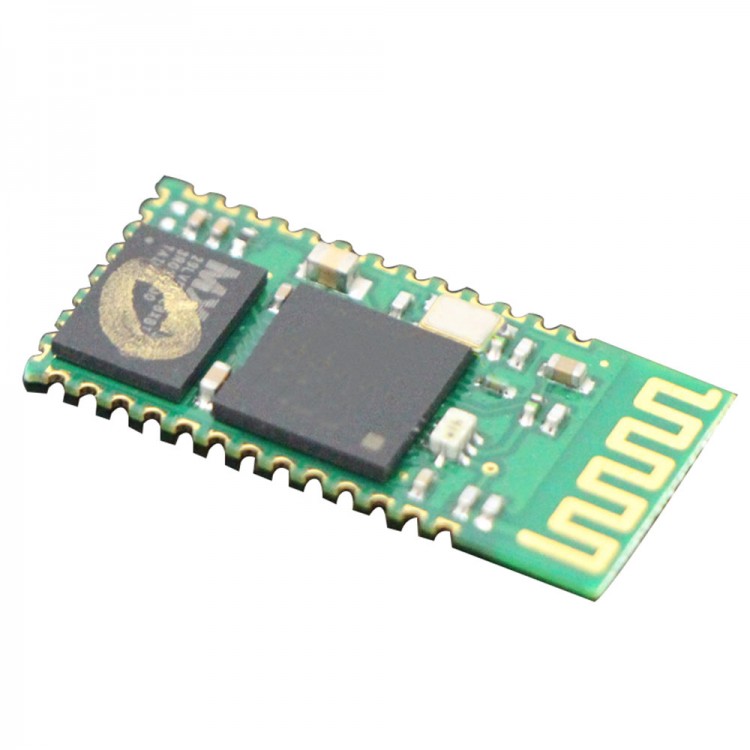

Bluetooth Module Bluetooth Serial Interface Adapter Bluetooth Turn Serial HC-06 Wireless Module
| Item Name |
Bluetooth UART RS232 serial converter Module |
| Operating Frequency Band | 2.4GHz unlicensed ISM band |
| Bluetooth Specification | V2.0+EDR |
| Output Power Class | Class 2 |
| Operating Voltage | 3.3V |
| Host Interface | USB/UART |
| Audio Interface | None |
| Flash Memory Size | 8Mbit |
| Dimensions | 27.2mm x 12.8mm x 2.5mm |
| Net Weight | 9.6 g / 0.3 oz |
Key Features
*support Master and Slave mode, modify by AT commander
1. CSR Bluetooth Chip Solution
2. Bluetooth Spec v2.0+EDR Compliant
3. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes
4. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
5. Increadible samll size with 3.3V input, and RoHS Compliant
6. UART interface and with baudrate setup function
7. Support for 8Mbit External Flash Onboard
8. Support for 802.11Co-Existence
Product Description
The Bluetooth UART RS232 serial Converter Module can easily transfer the UART data through the wireless Bluetooth, without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system:
* MCU, ARM or DSP systems.
* SOC systems.
* Personal Digital Assistants (PDAs)
* Computer Accessories
* Other systems your want to use under bluetooth functions.
[Hardware]
CSR solution, Bluetooth V2.0 protocol
support AT commander
support Master and Slave mode, modify by AT commander
support 1200-115200 baudrate
3.3V single supply
Size: core module: 28mm*15mm*2.35mm, whole module:35.33mm*19.6mm*3.7mm
current: 30mA MAX
can be used with all MCU by UART port
2 indicator lights
[Software]
user manual
AT commander manual
