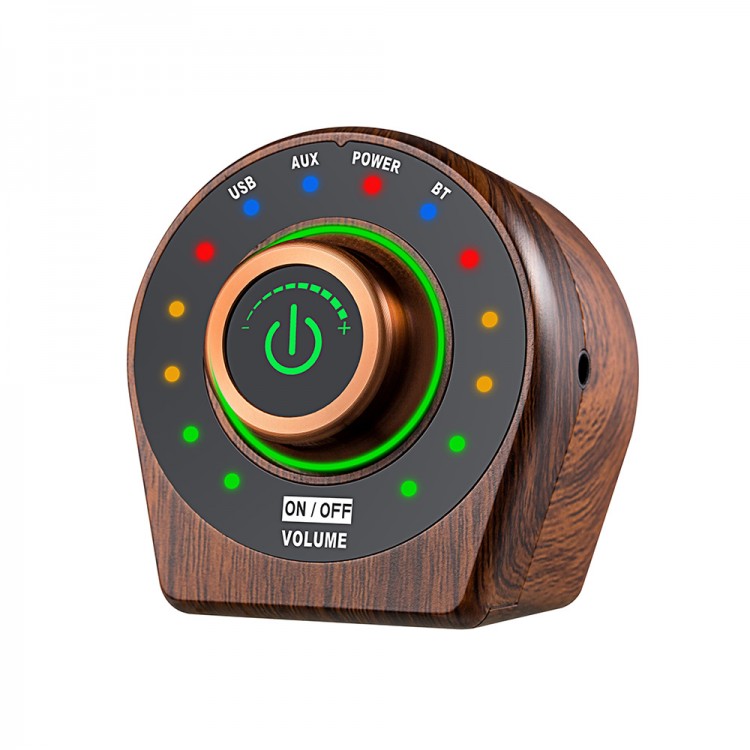

Bluetooth Power Amplifier Wood Grain HiFi 100W Class D Amplifier Digital Mini Pow Amp for Home Audio

Bluetooth Power Amplifier Wood Grain HiFi 100W Class D Amplifier Digital Mini Pow Amp for Home Audio

Description:
-The power amplifier comes with 3 modes of Bluetooth/wired/USB sound card input. The power amplifier can be connected to mobile phones, computers, tablets, notebooks, MP3, TVs and projectors with AV audio (RCA socket) or 3.5mm headphone output jacks, etc. All mainstream Bluetooth devices on the market can be connected to achieve wireless transmission.
-In the Bluetooth input mode, the audio input cable must be unplugged, then the power amplifier can be searched and connected; the audio input cable will automatically switch to the wired input mode when the audio input cable is plugged, and Bluetooth does not work at this time; the USB port on the front panel is the sound card input interface. Connect the computer and the power amplifier with the type-c data cable. The power of the power amplifier still needs to be turned on, and the power amplifier becomes a USB sound card to realize the external sound card playback of the computer, and the sound quality is very good.
-USB input can be connected to computer (no driver required) and smartphone (must have OTG function).

Specification:
Audio input: Bluetooth/USB/3.5mm AUX
Audio output: banana speaker jack
Bluetooth version: 5.0
Maximum output power: 50W×2 (24V/4Ω load)
Speaker impedance: 4Ω-16Ω
Working voltage: DC 9V-24V
Power specification: 5.5mm/2.1-2.5mm
Frequency response: 20Hz-20KHz (±1dB)
Signal to noise ratio: ≥98dB
Dimensions (height x length x width): 60×40×55mm

Features:
-Bluetooth 5.0: Achieve stable high-speed transmission speed and larger wireless range. Adapt the classic TPA3116 chip, the maximum output power reaches 50W*2, which can easily drive most home desktop/bookcase/indoor passive speakers (4-16Ω).
-HiFi Sound Quality: Use simple circuit layout and high-quality components (such as pure copper gold-plated terminals, etc.), the sound is very clear, clean and natural, and there is no cracking or audible noise even at high output.
-Multi-color Indicator: With ultra-compact and exquisite shell, and the unique processing technology makes it look high-end and have a texture. With power, input and volume LED indicators, the working status is clear and it is very convenient to use while providing dynamic visual enjoyment.
-Mini and Small: DC 9-24V wide voltage input allows it to be used in cars or motorcycles, enriching your travel experience.

Package List:
1 x Power Amplifier

Note: If you want to retrofit to the car or use battery power, etc., it must be limited to  below 24V. The standard power amplifier plugs are 5.5*2.5 or 5.5*2.1mm.
