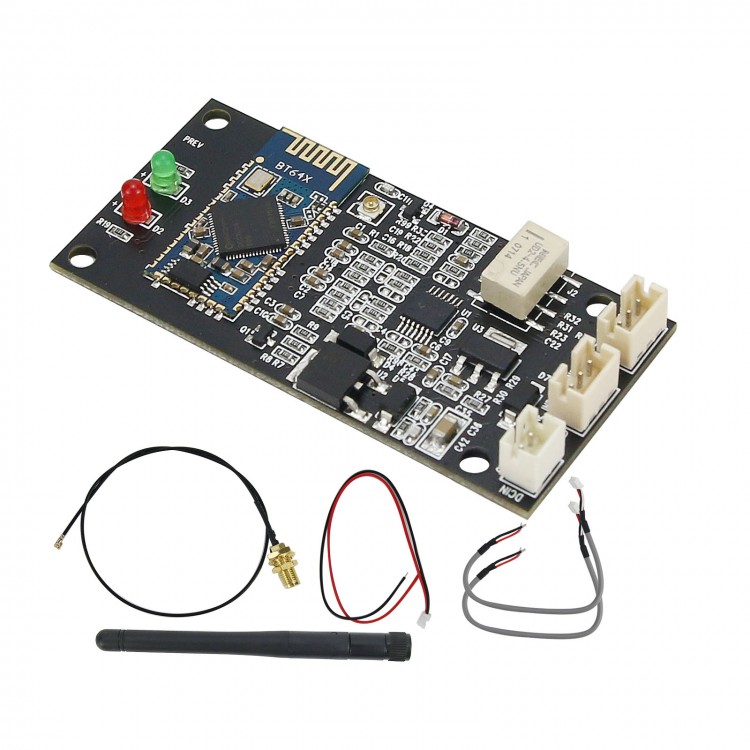

Bluetooth Receiver Board Module Lossless Bluetooth 5.0 Receiver QCC3008 B Type w/ External Antenna Kit
Advantages:
- QCC3008 Bluetooth 5.0 solution.
- Support for APTX, SBC, AAC, A2DP bluetooth protocols.
- Includes external antenna kit.
- The antenna base wire is about 300mm long.
- Audio cable and power cable are about 200mm long.
- B Type: Supports extended external antennas and has an antenna buckle seat, which can be buckled directly for easy disassembly and assembly.

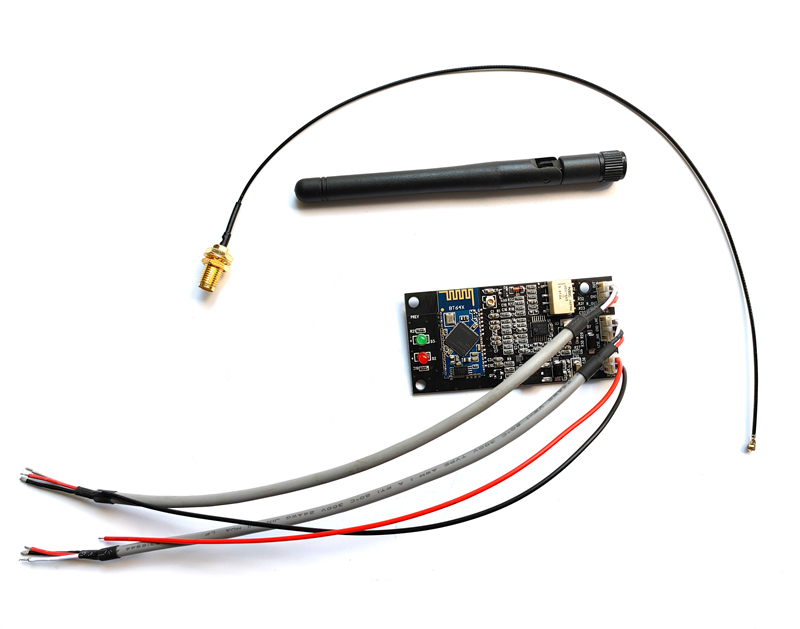

Package Included:
Correct Way to Install Bluetooth Antenna:

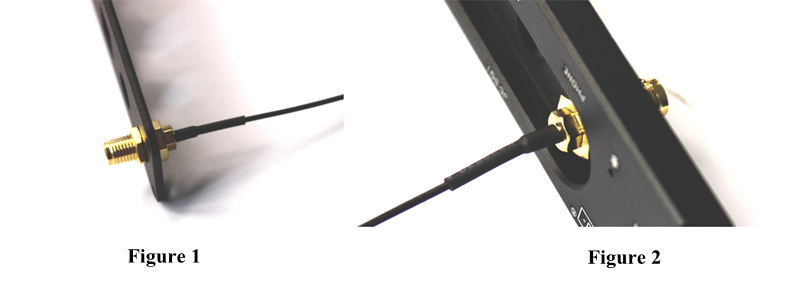

The panel thickness of Bluetooth antenna holder should be between 1-3mm, as shown in Figure 1. If the installed panel is too thick, it will affect the external antenna and cannot touch the contacts of antenna base, which will cause the external antenna to fail. For installation on a panel with a thickness greater than 3mm, the thickness of the mounting position of the panel's Bluetooth antenna holder needs to be reduced, as shown in Figure 2. Reduce the thickness to the remaining 3m or less, and measure the size by yourself. Images are for reference only.
Note: Other items pictured are not included, for demonstration purposes only.
