BM1660H Full HD Video Encoder HDCP HDMI 1080P H265 Encoder H264 Encoder For IPTV Live Broadcast

BM1660H Full HD Video Encoder HDCP HDMI 1080P H265 Encoder H264 Encoder For IPTV Live Broadcast

Description:
Video encoder is a HD audio and video encoding device with powerful functionality. It supports HDMI (audio build-in) and external stereo audio (3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, for ONVIF, HLS (M3U8), FLV, RTMPS etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as for YouTube Live, Ustream, Twitch, Facebook Live etc.

If you input external audio, you can choose HDMI embedded audio or external audio as output audio.

We provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

Typical Connection:

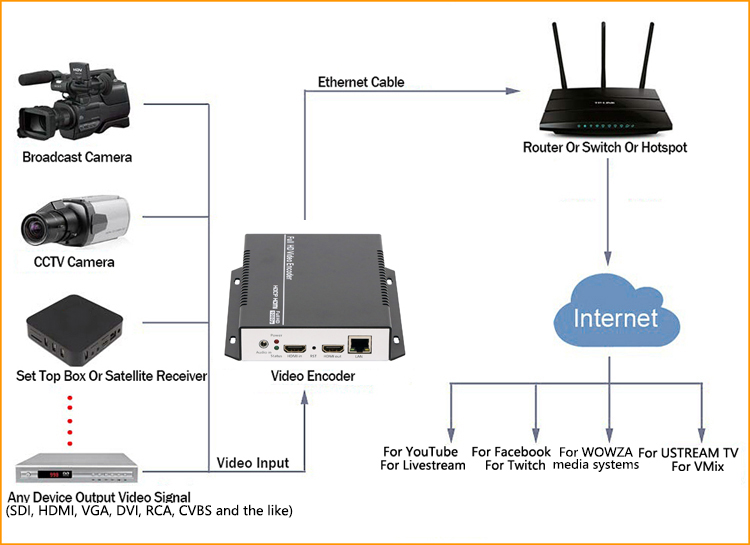

1). For Live Streaming Online Connection


2). For Multi-purpose Connection


3). For IPTV Project Connection


Features:
- Embedded system for HiLinux, stable and effective
- Support wide area network remote management (via port forwarding)
- Support HEVC /H.265 and MPEG-4 /H.264 AVC and MJPEG video encoding for selection
- Support AAC, AAC+, AAC++,MP3, MP2, AC3, G.711 audio encoding for selection
- The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s (CBR or VBR bitrate controlling mode)
- Support SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS (M3U8), FLV, for ONVIF, Unitcast, Multicast etc streaming protocol
- Support insert image, logo, text, roll text, time on the output video stream
- Support output video processing (Rotate, Flip, Mirror, Clipping etc)
- Support output displayed video resolution and frame rate setting (max 1920x1080P at 60fps)
- Support different protocol transmission for the 4 output video streams
- Support choose HDMI embedded audio or external audio as output audio
- Support upgrade device by upgrading new firmware
- Support configure the encoder via webpage or APP
-  Support 1 channel HDMI local loop out
- Provide SDK and API and CGI for secondary development
- Network interface full-duplex mode with 1000M speed
- Support HDCP and HD blue-ray
- English webpage operating interface, language is customizable
- A click to restore the default configuration
- Stable and effective, support 7 x 24h working time
- Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack
- Provide many kinds of customization (logo print, language customization, firmware or function customization etc.)

Package Included:
- 1 x Set of Video Encoder

Multi platforms live streaming
This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, such as for Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as for Wowza or Xtream codes. It supports multi-stream output, up to 4 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.


Multi type video stream URL play
Not only pushing video streams to online platforms, you can also use video software or APP such as for VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.


Specifications:
Video:
- Input: HDMI (Support HDCP)
- Input Resolution: Max. 1080P or 1080i resolution, Max. 60fps frame rate
- Encoding Type: HEVC /H.265 and H.264 /AVC and MJPEG for selection
- Encoding Levels: H.265 main profile; H.264 high /main /baseline profile
- Video Bitrate: Adjustable from 32kbit /s to 32mbit /s
- Bitrate Control: CBR or VBR or Strong CBR for selection
- Output Resolution: It is adjustable, max. 1920x1080P /60fps
- Video Pre-processing: De-interlacing, noise reducing and sharpening

Audio:
- Input: HDMI embedded audio or external stereo audio(3.5mm)
- Audio Encoding: AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
- Sampling Rate: 44.1KHz, 48KHz
- Bitrate Control: Adjustable from 48000~320000
- Sampling Accuracy: 24bit
- For ONVIF: G.711

Network:
- Interface: 1000M Ethernet port (RJ45)
- Streaming Protocol: SRT, HTTP, UDP, RTSP, RTMP, HLS (M3U8), Multicast, for ONVIF, RTP, Unitcast, RTMPS etc.
- Control Panel: Webpage control panel (language customizable) or APP
- Firmware Upgrade: Firmware is upgradeable

General:
- Dimensions: 170 x 105 x 30mm (W x L x H)
- Net Weight: 0.4kg
- Temperature: 0℃ to 45℃ (For working), -20℃ to 80℃ (For storing)
- Input Voltage: DC 12V /1A
- Power Consumption: 5w

Package Included:
- 1 x Set of Video Encoder

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!

Control Panel
1. Status


2. Encoder - Main Stream


3. Encoder - Video


4. Encoder - Audio


5. Encoder - Advanced


6. OSD - Main Stream


7. OSD - Logo Upload


8. System - Network


9. System - WIFI


10. System - Upgrade Firmware


APP Control
