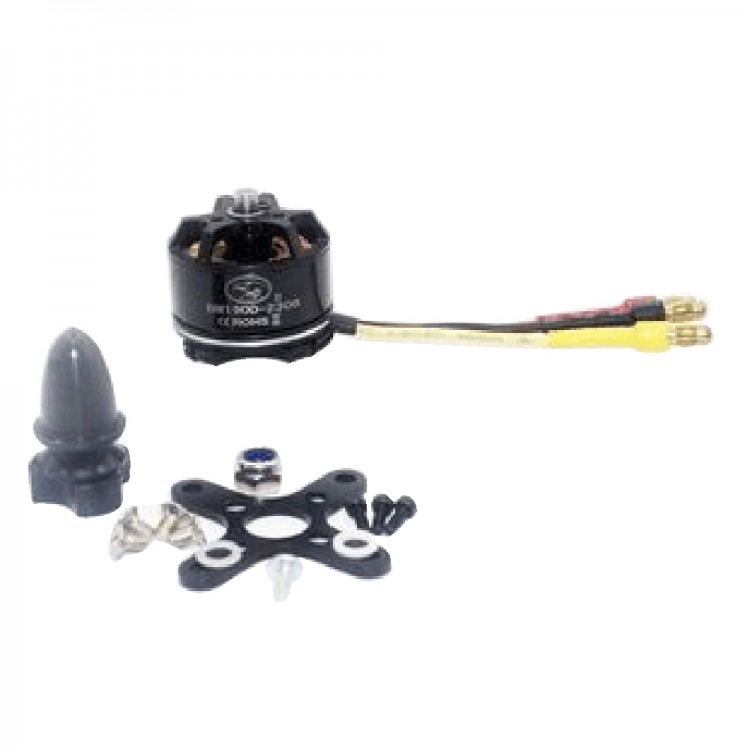

BM2312 (2212) 1000KV 220W 20A Brushless Motor for RC FPV Fixed Wing Multicopter
Specification:
- 0.2MM 1200# coiled silicon steel sheet
- Motor main rotor: 4mm
- KV: 1000
- Iron core size: 2312

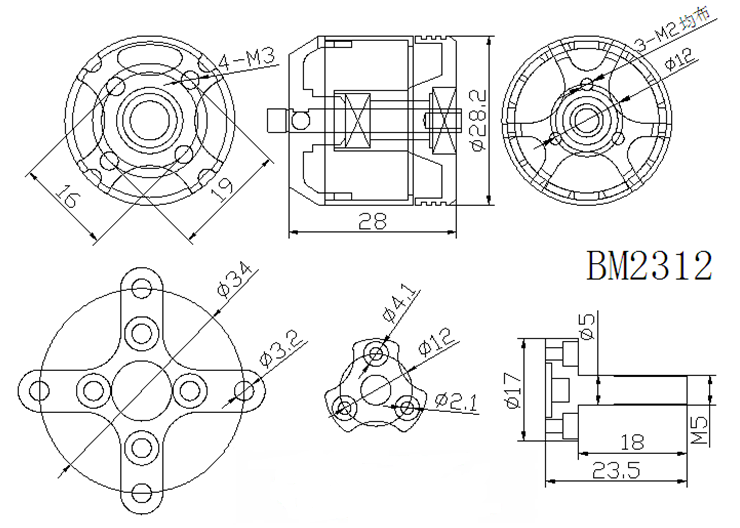

- Motor size: 28.2*28
- Weight: 56g
- Idle current: 0.6A 7.4V
- Support lithium battery: 3-4s Lipo
- Max. continuous current: 20A
- Max. continuous power: 220W
- Interbal resistance: 0.121Ohm
Test parameters and assembly:
- Lithium battery: 3S
- Propeller: 10*6
- ESC: 20A
- Take-off weight: 0.35-0.5kg
- For aircraft: 400 class
Package included:
- 1* Motor
- Accessories
