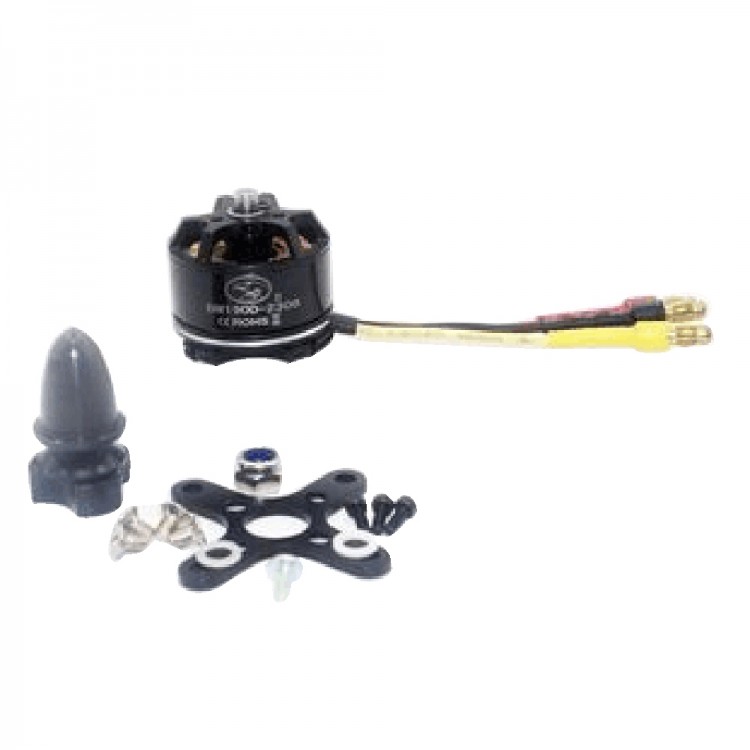

BM2312 (2212) 1480KV 260W 28A Brushless Motor Brushless Motor for RC FPV Fixed Wing Multicopter
Specification:
- 0.2MM 1200# coiled silicon steel sheet
- Motor main rotor: 4mm
- KV: 1480

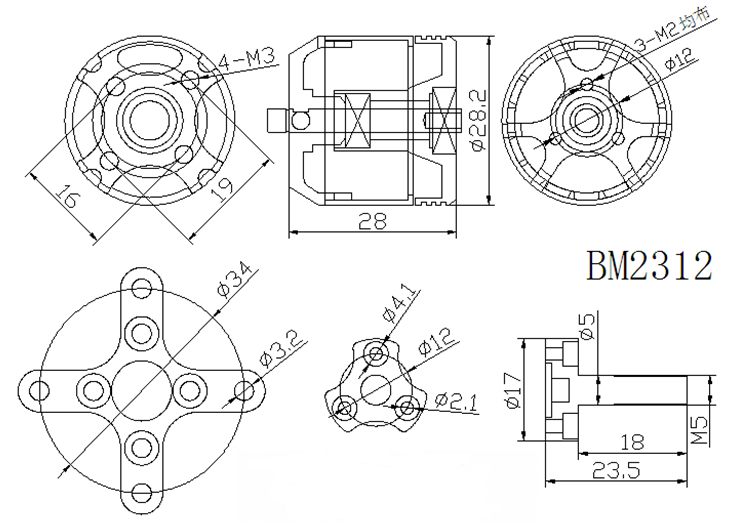

- Iron core size: 2312
- Motor size: 28.2*28
- Weight: 56g
- Idle current: 1.1A 7.4V
- Support lithium battery: 2-3s Lipo
- Max. continuous current: 28A
- Max. continuous power: 260W
- Interbal resistance: 0.061Ohm
Test parameters and assembly:
- Lithium battery: 3S
- Propeller: 8*4
- ESC: 20A
- Take-off weight: 0.4-0.55kg
- For aircraft: 400 class
- Lithium battery: 2S
- Propeller: 9*4.5
- ESC: 20A
- Take-off weight: 0.4-0.55kg
- For aircraft: 400 class
Package included:
- 1* Motor
- Accessories
