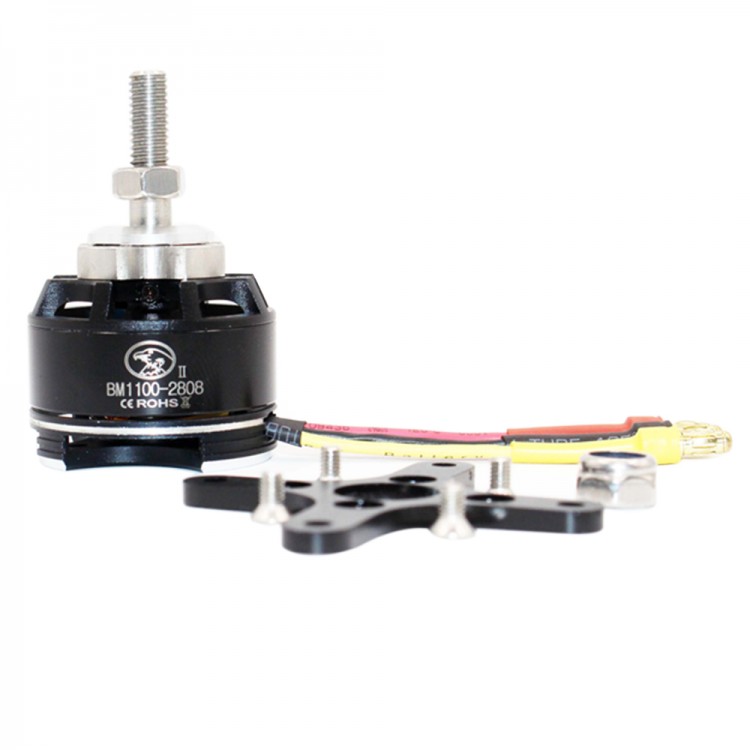

BM2808 (W3530) 1100KV 260W 23A Brushless Motor Dynamic Balance for FPV Fixed Wing Multicopter
Specification:
- 0.2MM 1200# coiled silicon steel sheet
- Motor main rotor: 4mm
- KV: 1100KV
- Iron core size: 2808

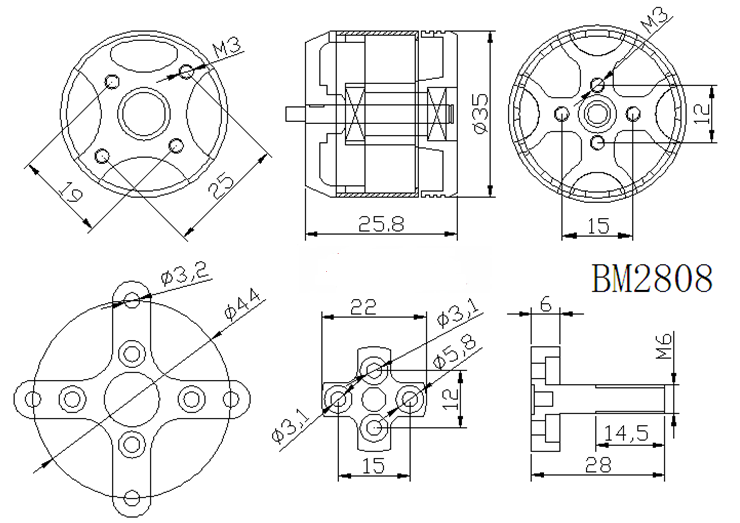

- Motor size: 35*25.8
- Weight: 67g
- Idle current: 0.7A 10V
- Support lithium battery: 2-3s Lipo
- Max. continuous current: 23A
- Max. continuous power: 260W
- Interbal resistance: 0.0625Ohm
Test parameters and assembly:
- Lithium battery: 2S
- Propeller: 13*6.5
- ESC:25A
- Take-off weight: 0.55-0.65kg
- For aircraft : 15E/480 class
- Lithium battery: 3S
- Propeller: 10*5.5
- ESC:25A
- Take-off weight: 0.55-0.65kg
- For aircraft : 15E/480 class
Package included:
- 1* Motor
