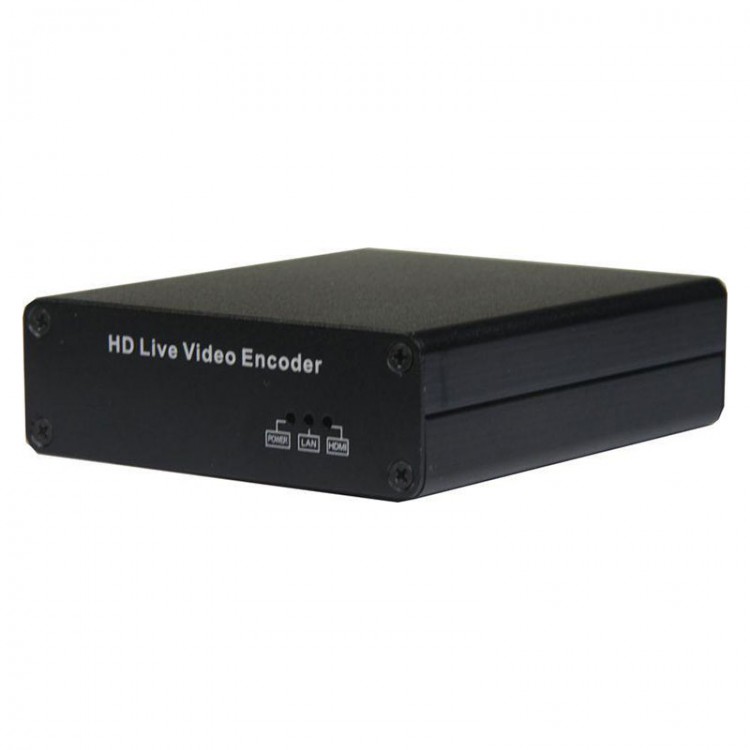

BM3000-HDMI H.264 Video Encoder Support HDCP HDMI To IP Live Streaming Encoder IPTV Streamer

BM3000-HDMI H.264 Video Encoder Support HDCP HDMI To IP Live Streaming Encoder IPTV Streamer

Video:
- Input:1x HDMI(1.4)HDCP
- Resolution:1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i
- Code:H.264/AVC Baseline/Main/High Profile Level 4.2
- Code frame rate:1080P60(only input 1080P60)
- Code rate:0.16Mbps~32Mbps
- Code rate control:CBR/VBR
- GOP:IBBP
- Advanced features:De-interlacing,Image Enhancement,Noise Reduction,Sharpening
- Latent time:300ms

Audio:
- Input:1xHDMI
- Code:AAC/AAC+/MP3
- Sampling rate:44100/48000 Hz
- Code rate:32K/48K/64K/96K/128K/160K/192K/384K
- Sampling accuracy:24 bit

System:
- Network port:100 Base-T Ethernet interface
- Protocol:HTTP RTSP RTMP HLS FLV UDP unicast/multicast
- Control interface:WEB Manager

General:
- Size:(LxWxH):89x103x29mm (100x70mm PCBA)
- N.W:0.3kg
- Temperature:0-45(work),-20-80(storage)
- Power:12V DC 1A
- Power consumption:5w
