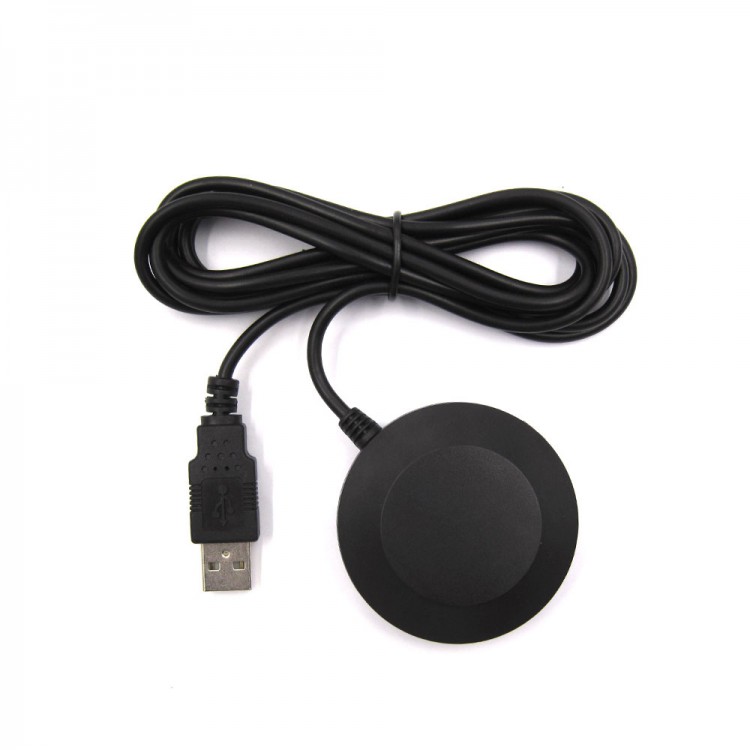

BN-808 GPS Antenna Module USB GPS Receiver Compatible with BU-353S4 BU353N5 Dual Mode for GLONASS and GPS

BN-808 GPS Antenna Module USB GPS Receiver Compatible with BU-353S4 BU353N5 Dual Mode for GLONASS and GPS

Specification:
Electric characteristics:
- Chip: M8030-KT
- Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
- Receiving format: GPS, GLONASS, BDS, GALILEO, SBAS, QZSS. Default GPS, GLONASS, SBAS, QZSS.
- Channels: 72 searching channel

Sensitivity:
- Tracking: -167dBm
- Re-acquisition: -160dBm
- Cold start: -148dBm
- Hot start: -156dBm

Accuracy:
- Horizontal: 2.0m CEP 2D RMS SBAS enable (typical open sky)
- Velocity: 0.1m/sec 95% (SA off)
- Timing: 1us

Acquisition time:
- Cold start: 26s
- Warm start: 25s
- Hot start: 1s

Data output:
- Support rate: 4800bps to 921600bps, auto adapted baud rate
- Data level: USB level

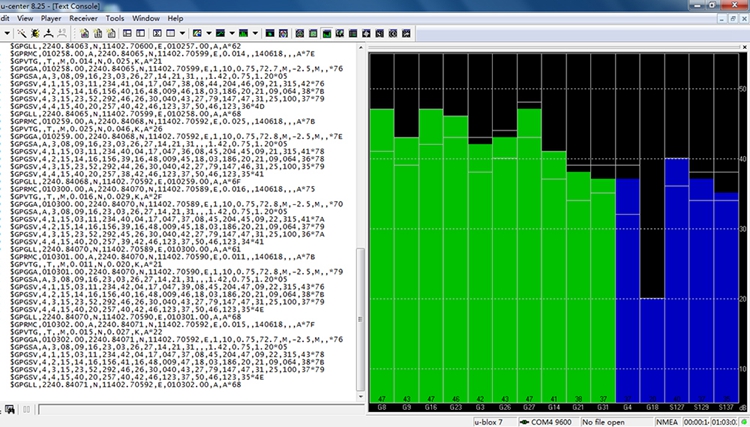

- Data protocol: NMEA-0183 protocol
- NMEA message: RMC, VTG, GGA, GSA, GSV, GLL
- Update rate: 1Hz - 10Hz, default 1Hz
- Flash: 4M flash, store the configuration permanently

Operational limits:
- Altitude: < 50000m
- Velocity: < 515m/s
- Acceleration: <4g

Power consumption:
- VCC: DC voltage 3.6 - 5.5V, typical: 5V
- Current: 50mA/5V

Mechanical specification:
- Size: 56.7 x 18mm
- Weight: 70g
- Connector: USB 2.0 male interface

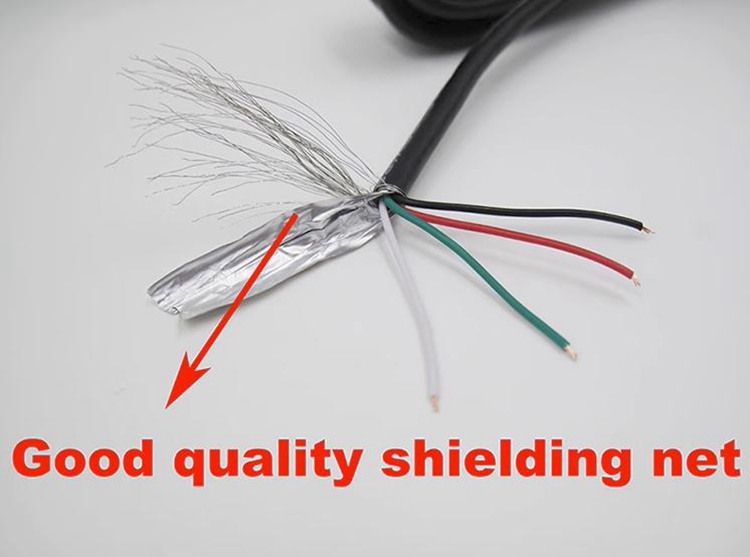

- Cable length: 2m

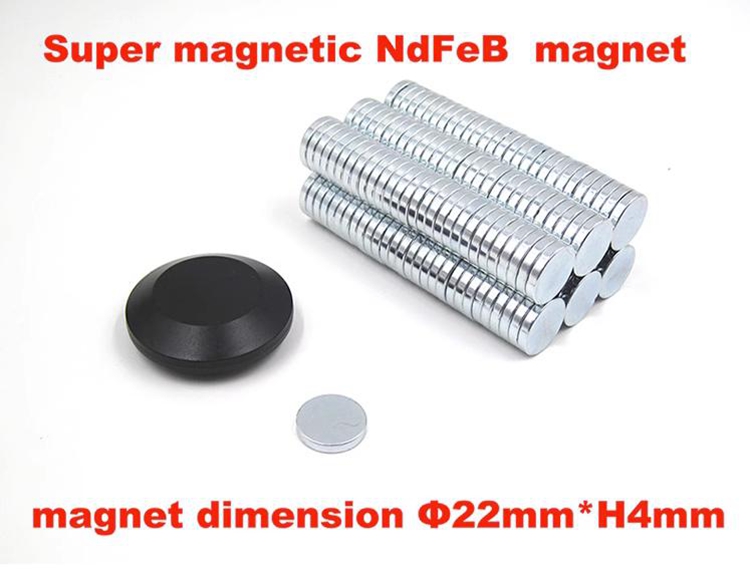

- Installation: magnetic
- Waterproof level: IP67

Environment:
- Operating temperature: -40℃ ~ +85℃
- Storage temperature: -40℃ ~ +105℃

Note:
- This GPS receiver requires a driver to be installed for data communication. It supports numerous systems for Windows, for Linux, for CE, etc.

Package Included:
- 1 x GPS Antenna Module
