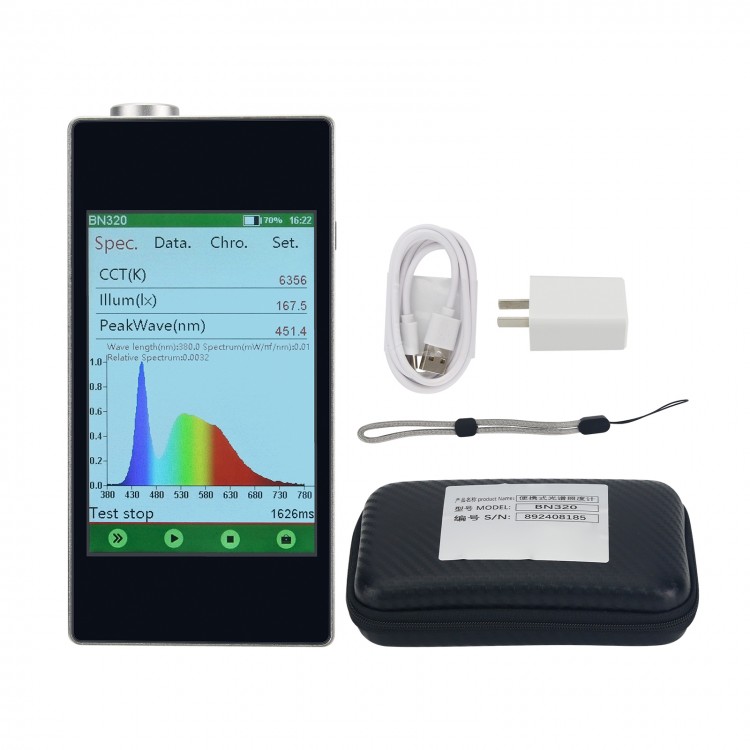

BN320 380-780nm Handheld LED Spectral Illuminometer CCT/Lux/Ra Testing with 3.5-inch IPS Touch Screen

BN320 380-780nm Handheld LED Spectral Illuminometer CCT/Lux/Ra Testing with 3.5-inch IPS Touch Screen

Description:
- Adopting high speed CPU processor for LINUX system with high precision electronic CCD optical sensor, using long cross asymmetric CT spectral principle of system development and design, with a lightweight design, stable performance, high precision, high cost performance, easy to carry, etc, and with a 3.5-inch high-definition capacitive touch screen lets you familiar with freely like operating mobile phone. Completely subvert the old high precision spectrum analyzer volume is huge, cumbersome operation, high price and other concepts.Sampling and measurement of light source parameters can be carried out anytime and anywhere.
With the help of PC software, efficient analysis and processing of test data can be carried out. With extremely high measurement linearity and accuracy, it is widely used in on-site lighting measurement fields such as household, shopping malls, schools, factories, greenhouse and outdoor.It can also be used in the research and development of light source products, production line quality control and other links.

Features:
- Small size, light weight, easy to carry.
- 3.5-inch IPS HD LCD touch screen, easy to operate.
- 2500mA high capacity battery, a single charge can be last more than 6 hours.
- Long focal cross asymmetric CT spectroscopic system has good linearity and accuracy of measurement.
- Spectrum, illuminance, chroma and other measurement functions all in one.
- Independent research and development of LINUX operating system platform, friendly interface, simple and smooth operation.

Measurable Parameters:
- Correlated Color Temperature TC (K), Blackbody Deviation DUV
- Illuminance E (LX), Candela E (FC) and Irradiance EE (W/M2)
- Chromaticity coordinates (X, Y), (U, V) and (U', V')
- Relative spectral power distribution P(λ)
- Color rendering index RA, RI (I=1~15)
- Color Tolerance SDCM (McAdam Ellipse, Rectangle Box and CIE UV' Circle)
- Dominant wavelength, peak wavelength, center wavelength, centroid wavelength, half width
- Light to dark vision ratio S/P
- Color Purity, Red Ratio, Green Ratio, Blue Ratio, CIE1931 Tristimulus Values X, Y, Z
- More function parameters can be customized

Specification:
- Wavelength range: 380 - 780nm
- Display: 3.5-inch IPS LCD touch screen
- Battery capacity: 2500mA

Package Included:
- 1 x Illuminometer
