BNC Port 0-5Vpp Frequency Divider Square Wave Distributor Amplifier with 8 Channel Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$78.96
  • Price in reward points: 790 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.38 $75.80 $73.43 $70.27 Contact US
Quantity:

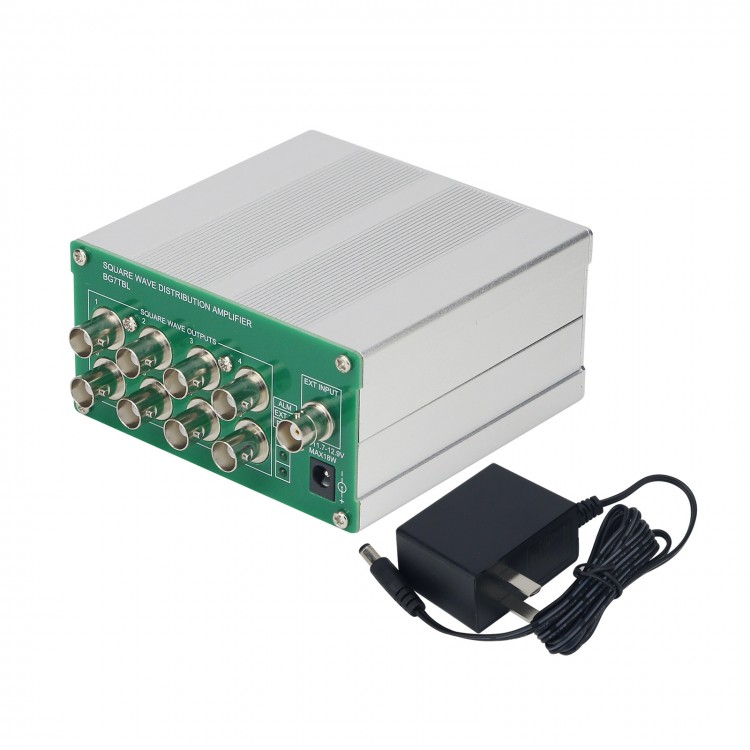

BNC Port 0-5Vpp Frequency Divider Square Wave Distributor Amplifier with 8 Channel Output

Specification:

- Power supply: DC11.7-12.9V, Max: 12W, 5.5/2.1 socket
- Input: external AC couple, 0.5Hz-200MHz, 0.1Vpp-5Vpp
DC couple, DC-200MHz, 1.65V/2.5V, 3.3Vpp-5Vpp
- Output: 8 channel, square wave, 0-3.3Vpp/5Vpp
- Input/output port: BNC or SMA
- LED: PWR: Power indicator
  EXT IN: external input signal indicator, it is always bright if the output signal >3Hz
  ERROR: the indicator is always bright when then the output signal >0.5 Hz or without output
- Size: 100 x 55 x 120
- Weight: 400g (packaging is not included)

FAQ:
Q: What’s the application of internal OCXO?
A: It can be used as a clock source without external input. Internal OCXO is automatically selected.

Package Included:

- 1 x Frequency Divider
- 1 x Adapter (AC110-220V-DC12V/1.0A)

Note:
- 10M/13M/26M/100M OCXO can be purchased at an additional charge. Please leave a message when ordering this accessory.
