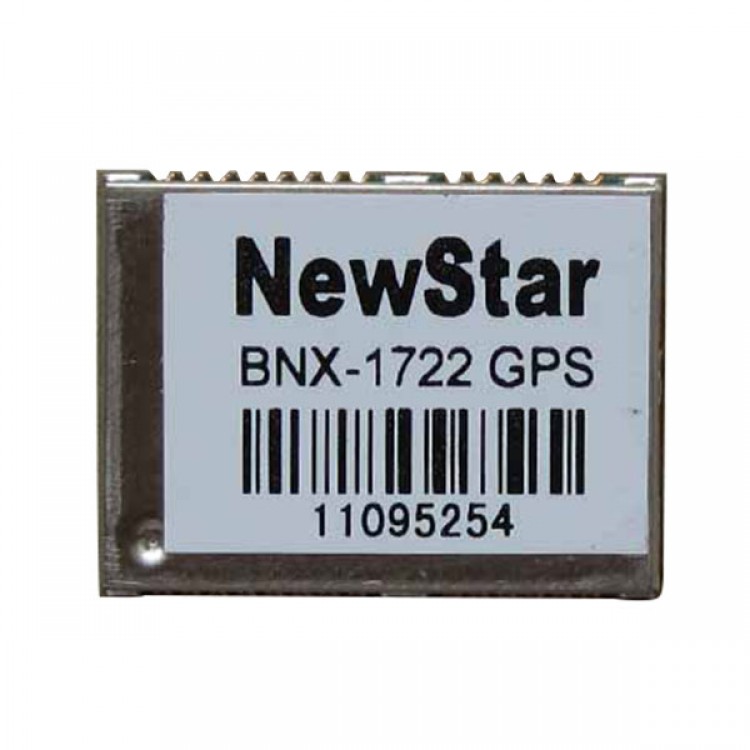

BNX-1722 High-precision Positioning Measurements Dedicated GPS Module
Description:
Positioning function:
- Open wild: 2m
- Open wild: :1.5m, has WAAS assist
- Drift: :＜0.02m/s
- Timing accuracy: 100ns
- Reference coordinate system: WGS-84
- Max altitude height: 18000M
- Max speed: 515m/s
- Acceleration: ＜4g
Electrical performance:
- Tracking sensitivity: :-159dBm
- Acquisition sensitivity: :-147dBm
- Cold boot time: 38s
- Warm boot time: 36s
- Hot time: 1s
- Recollection time: 0.1s
- Operating temperature:-30℃ to +80℃
- Size: 22*17*2.5mm
Interface electrical properties:
- Wide voltage range: main power supply is +3.3V+/-10%,RTC power supply is +2.5-3.6V
- Adopting active antenna (15~26dB/3.3V), or passive antenna
- Output data baud rate: 4800bps or 9600bps or can be customized
- The output of SiRF binary data type or NMEA 0183 V3.0(GGA,GSA,GSV,RMC,VTG) agreement number
