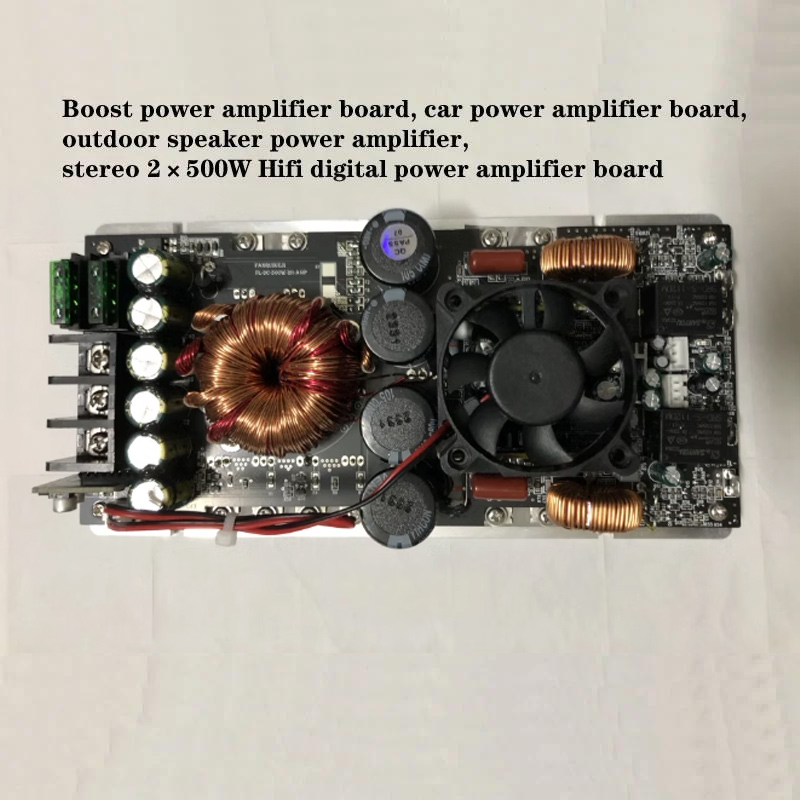

Boost Power Amplifier Board Dual Channel Vehicle Outdoor Stereo 2x500W HiFi Digital Power Amplifier for UCD700 Solution
Description:
- UCD700 solution, two-channel car amplifier, professional outdoor karaoke amplifier, outdoor speaker amplifier, boost amplifier 4 ohms dual 500 watts, music maximum dual 750 watts. 8 ohms dual 400 watts, music maximum dual 570 watts. Bridged 8 ohms 800 watts music max 1000 watts.

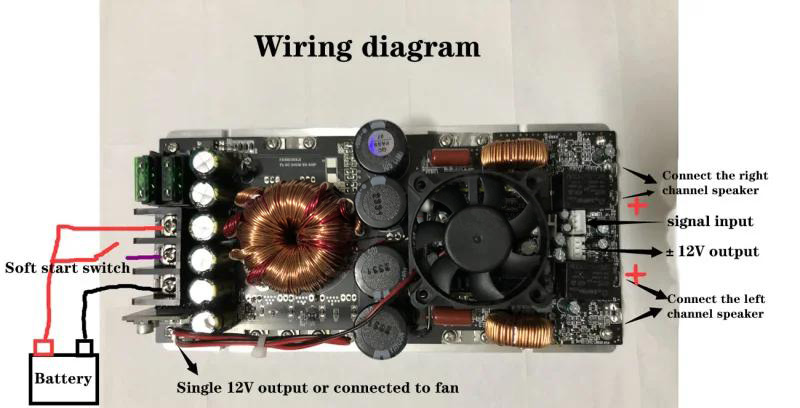

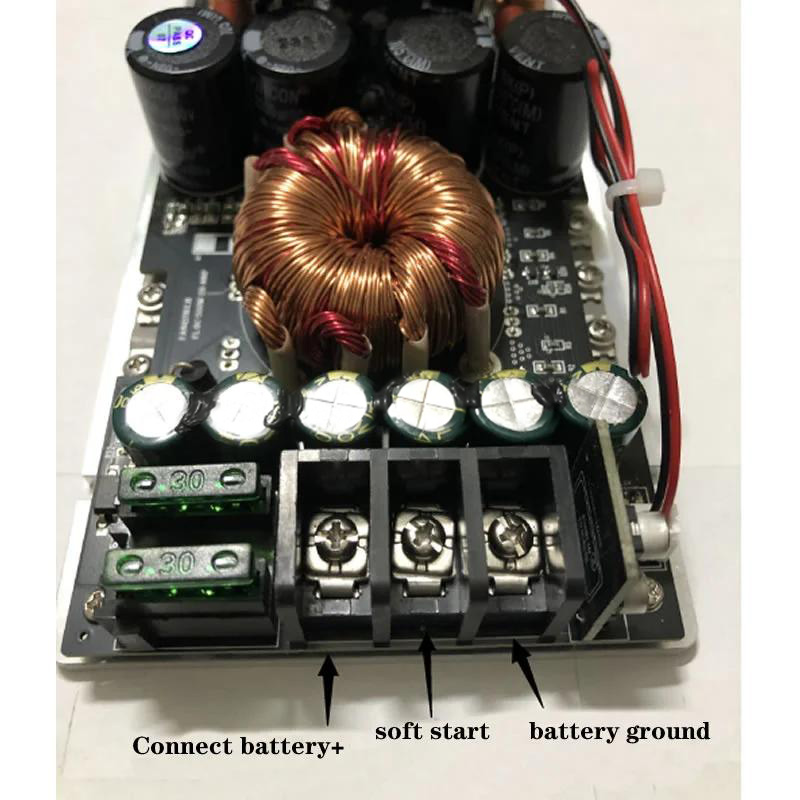

- It is powered by a 10-14.4V battery and comes with dynamic voltage stabilization. The power will not be reduced due to the reduction of battery power. The power supply voltage will not be reduced when it is fully loaded, achieving constant power output. The power amplifier comes with a low voltage of 9.8V battery, for a high voltage of 16V battery, it will automatically shuts down.
- DC protection shutdown, overload protection self-locking, temperature protection and automatic recovery function when cooling.
- The total capacitance of the power supply input is 13200UF, and the total capacity of the power supply capacitor of the power amplifier is 8800UF, which makes the power amplifier output a thick and powerful bass and a clear and soft high-pitched sound. The boost MOS tube uses the original imported IRF3205/120A MOS tube with a total current of 480A. The power amplifier uses original imported IR 91A MOS tube, which enables the power amplifier to continuously and stably output.

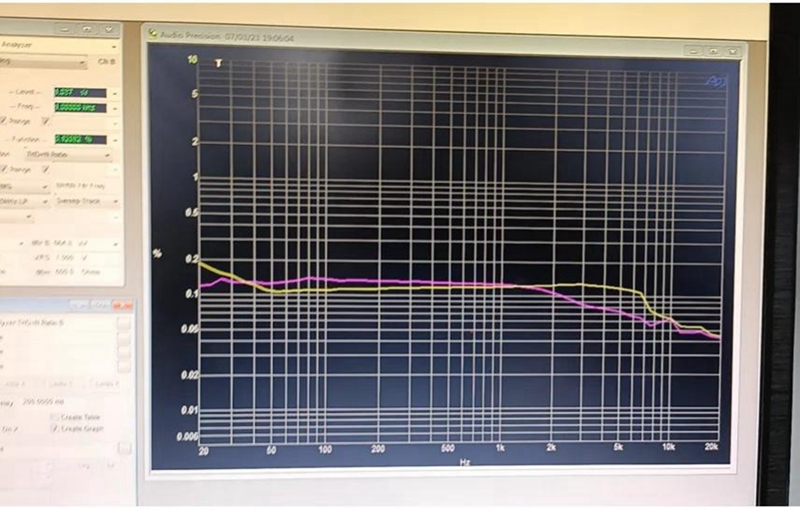

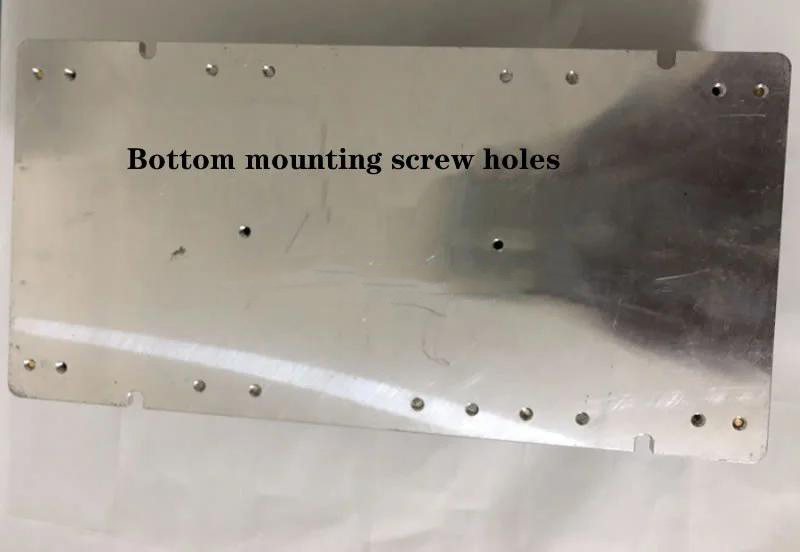

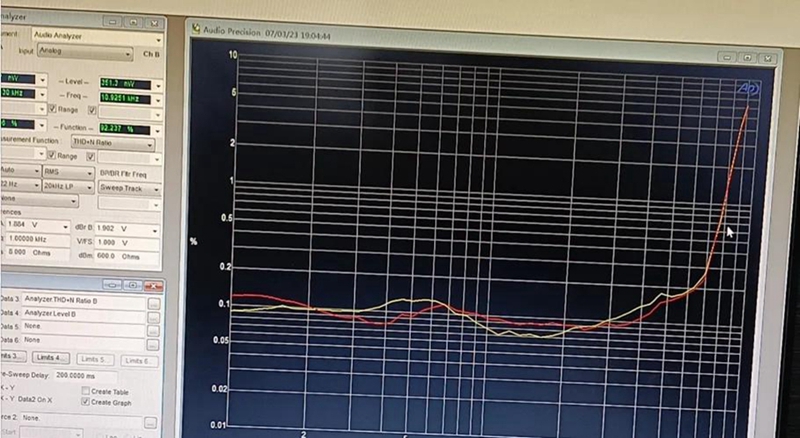

- Overall size of power amplifier: 210x95x45MM. The AP curve shows ultra-low power distortion and frequency response distortion. It perfectly restores the characteristics of the original sound and brings the degree of restoration to a very high standard, so the vocals sound clear and the scene is wide and substantial.
Package Included:
- 1 x Power Amplifier Board
