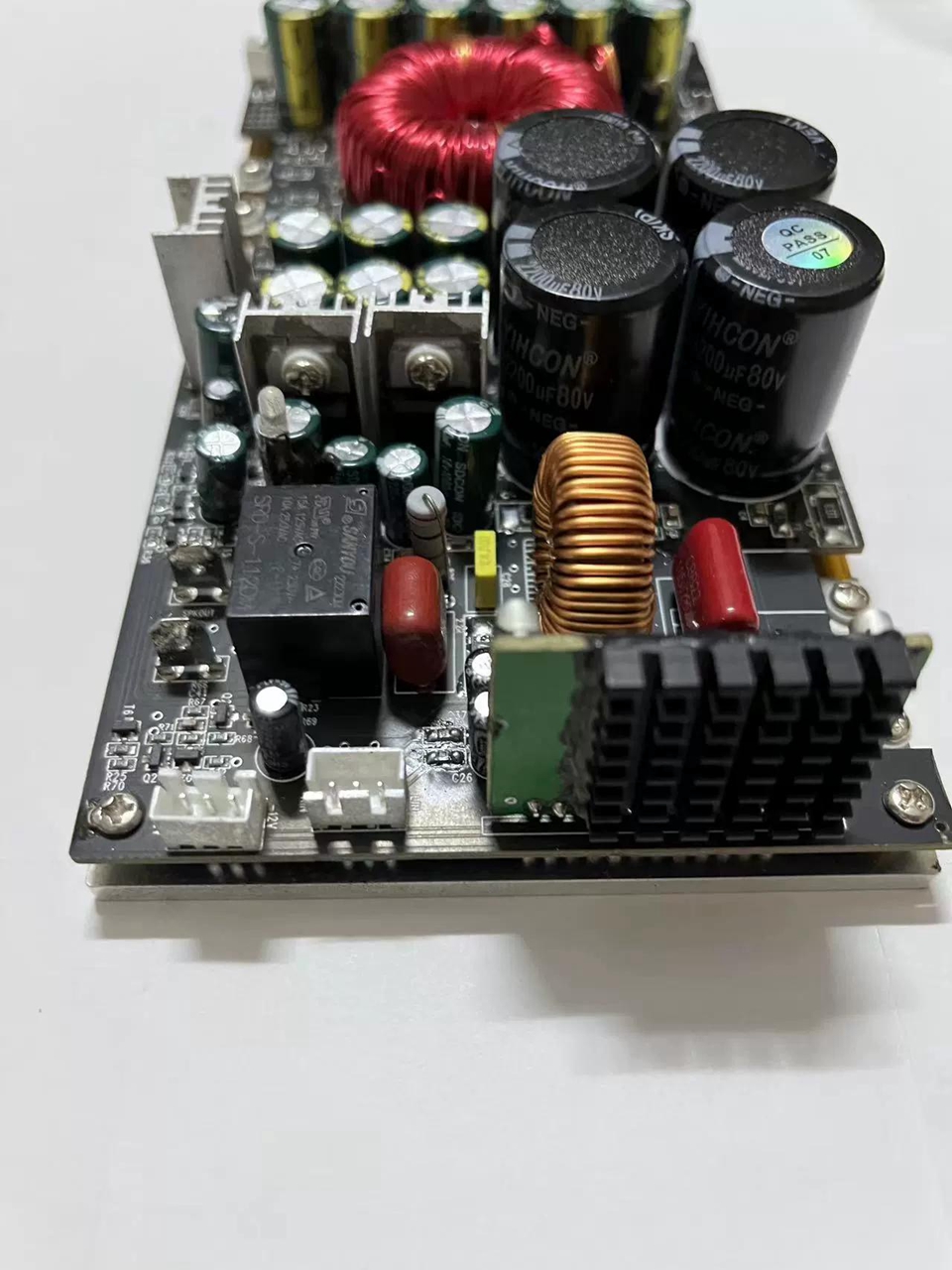

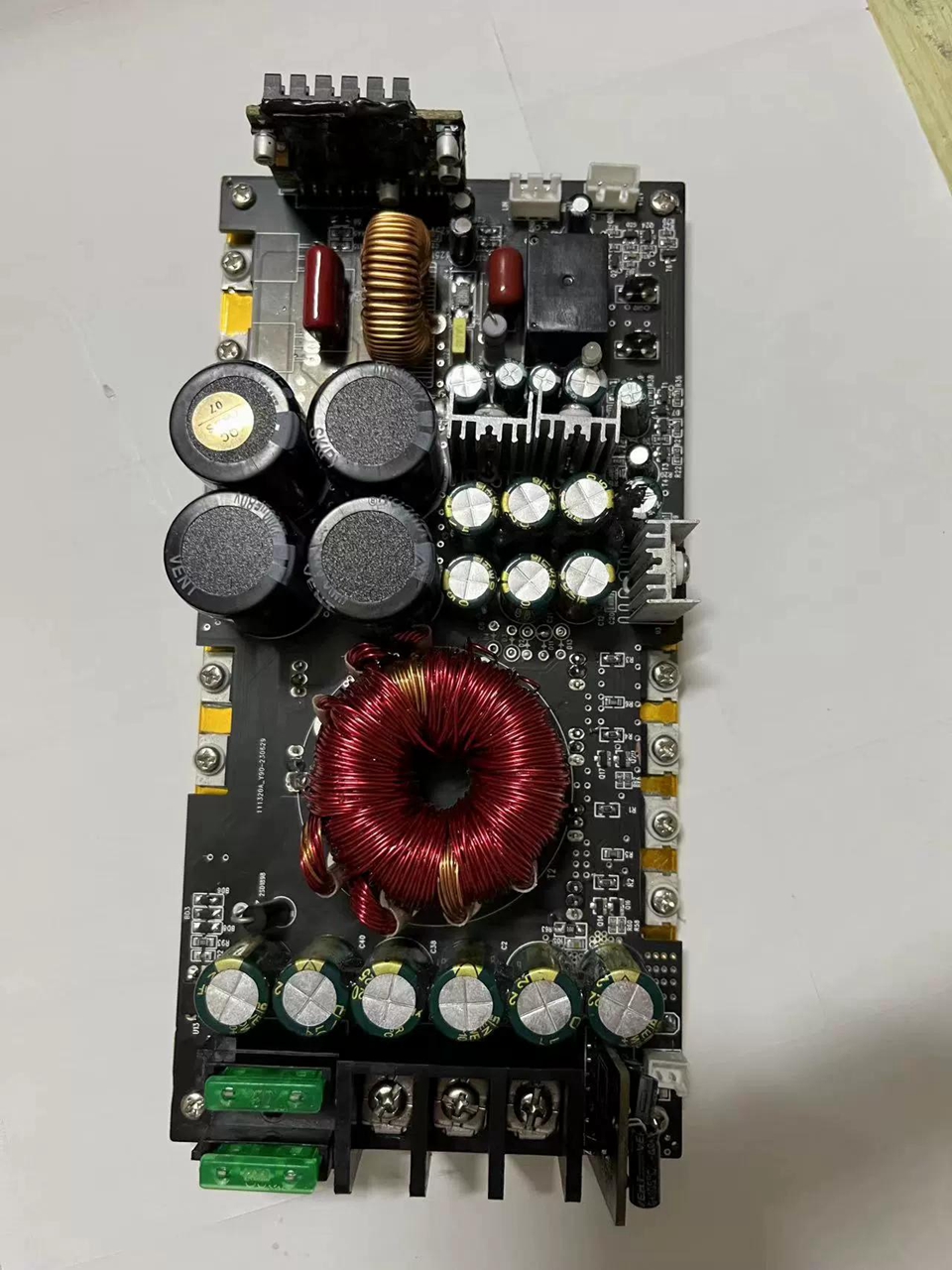

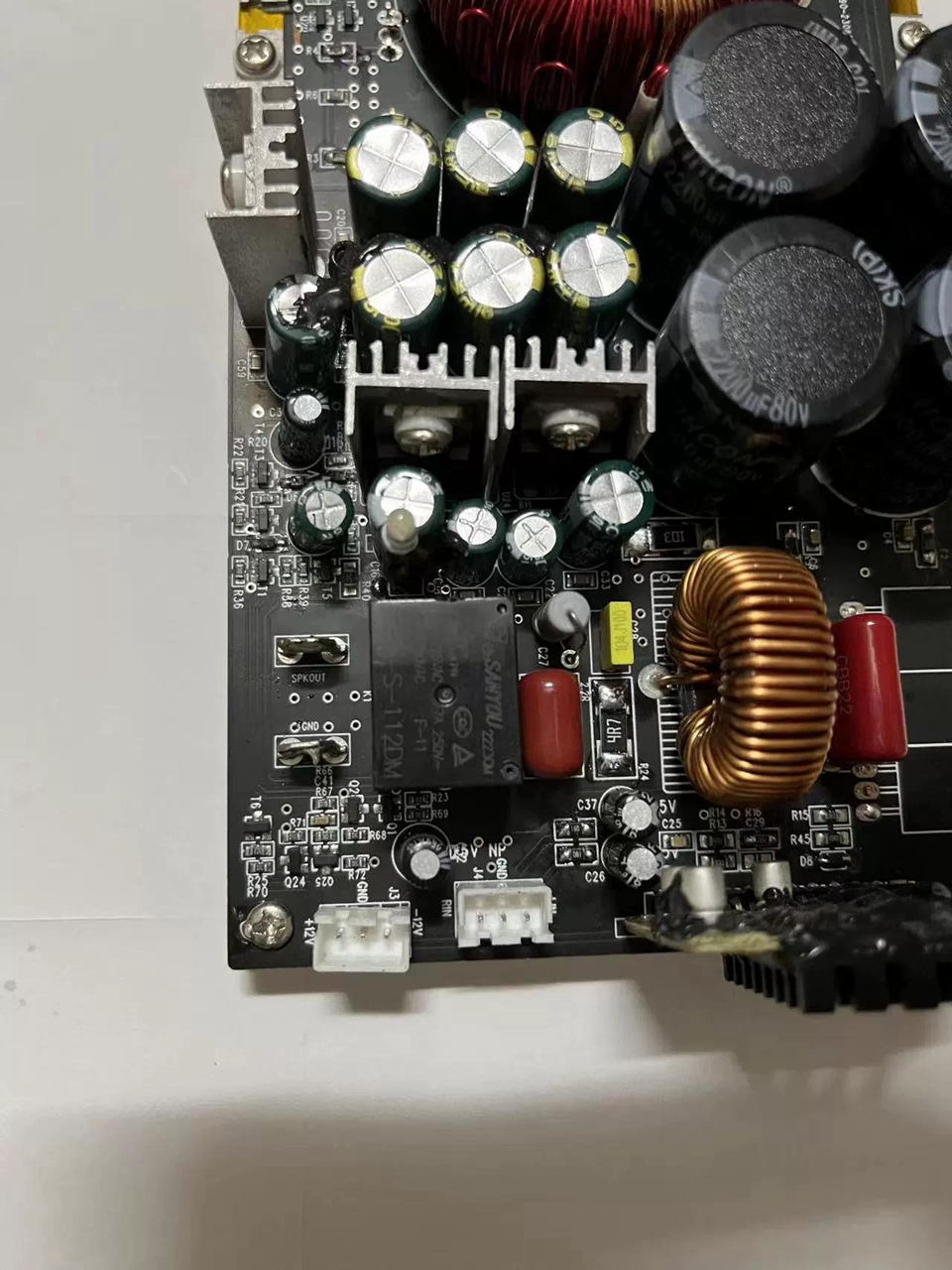

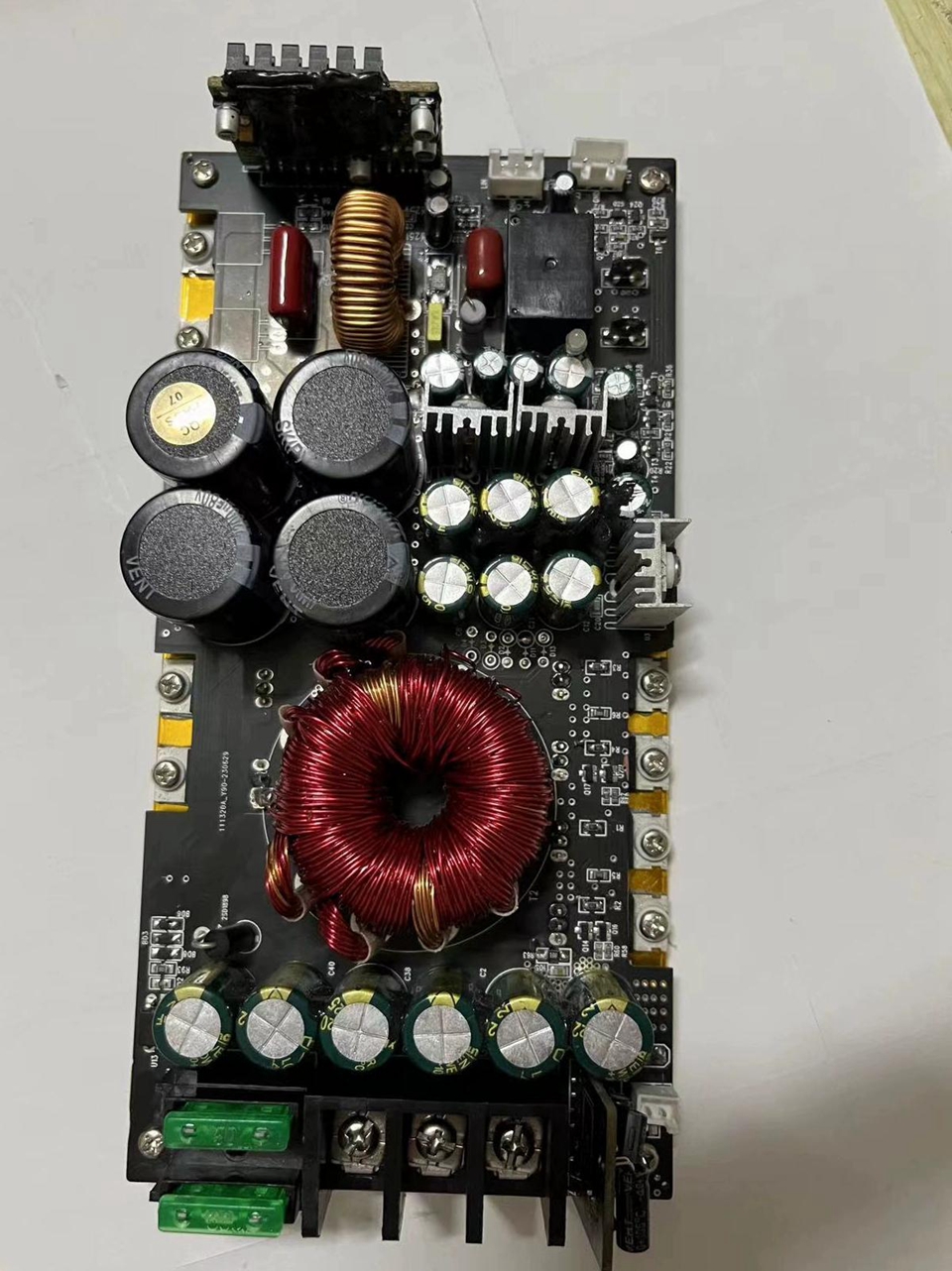

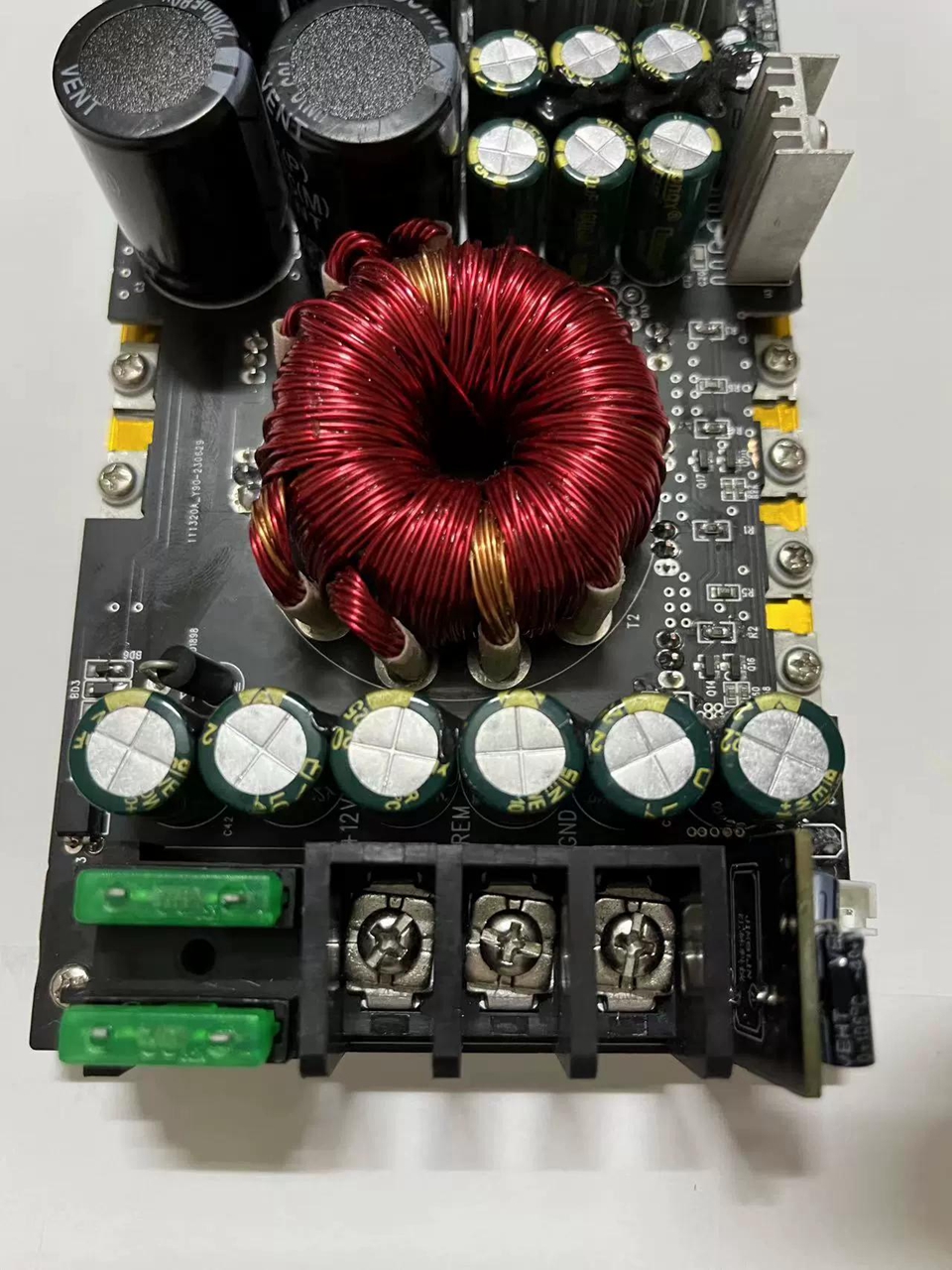

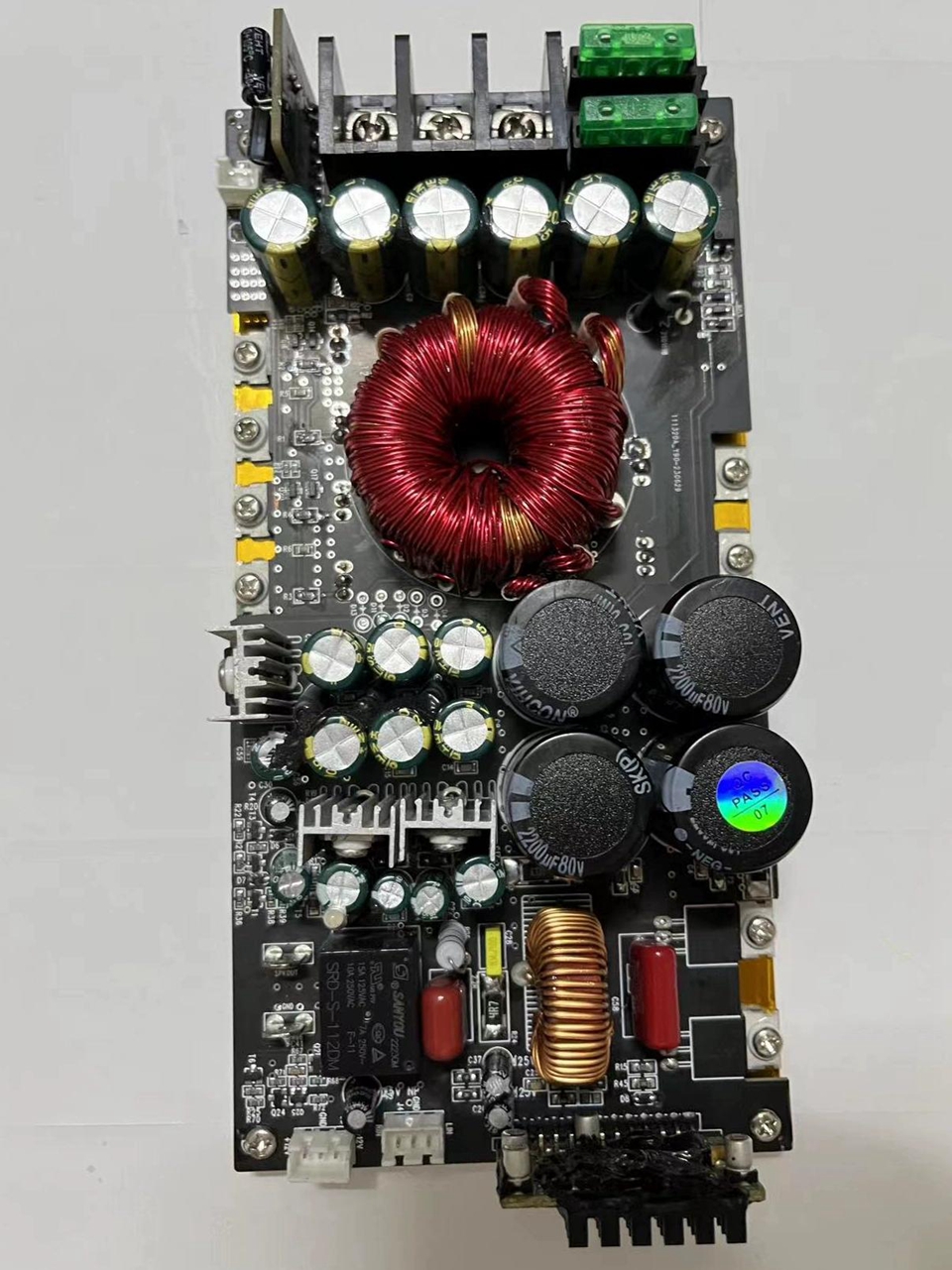

Boost Power Amplifier Board Mono 500W HiFi Digital Audio Amplifier Board for Outdoor Vehicle Speakers

Boost Power Amplifier Board Mono 500W HiFi Digital Audio Amplifier Board for Outdoor Vehicle Speakers

Description:
- Mono car power amplifier, professional outdoor karaoke amplifier, outdoor speaker amplifier, boost amplifier, 4ohms 500W, music maximum 750W. 8ohms at 400W, maximum 570W for music.

- 10-14.4V battery power supply, with built-in dynamic voltage stabilization, the power will not be reduced due to the reduction of battery power, and the power supply voltage will not be reduced when it is fully loaded, achieving constant power output. The power amplifier comes with a low voltage of 9.8V battery and a high voltage of 16V battery that automatically shuts down. DC protection shutdown, overload protection self-locking, temperature protection; temperature automatic recovery function.

- The total capacitance capacity of the power input is 13200UF, and the total capacity of the power supply capacitor of the power amplifier is 8800UF, making the power amplifier output a thick and powerful bass and a clear and soft treble. The boost MOS tube uses the original imported IRF3205/120A MOS tube with a total current of 480A. The power amplifier uses original imported IR 91A MOS tube, which enables the power amplifier to continuously and stably output.

- Overall size of the power amplifier: 190 x 95 x 45MM. The AP curve shows ultra-low power distortion and frequency response distortion. It perfectly restores the characteristics of the original sound and brings the degree of restoration to a very high standard, so the vocals sound clear and the scene is wide and substantial.

Package Included:
- 1 x Power Amplifier Board
