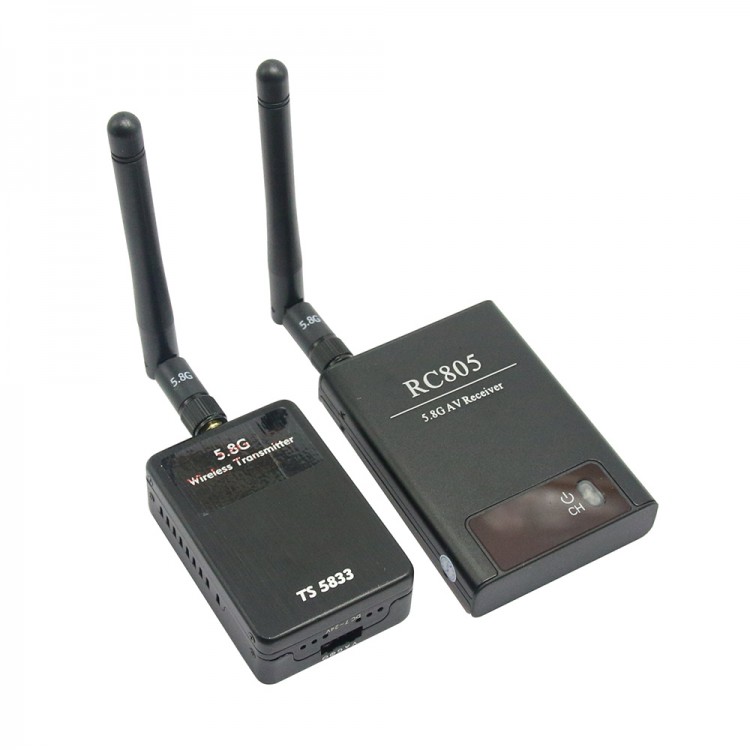

Boscam 2000mW 5.8G FPV Wireless Transmitter TS5833 + 8CH RX RC805 Receiver FPV

Boscam 2000mW 5.8G FPV Wireless Transmitter TS5833 + 8CH RX RC805 Receiver FPV

Description:
- Power: 2000mW(33dB+-1dB) of certified output power
- Power on working: Plug and PlayInput voltage7-24VDC, 2-6 cells battery
- Cooling system: whole body heat sink and cooling fan
- Channel switching: channel button and channel display
- Antenna: RP-SMA female 50ohm connector
- Size & Weight: 62mm*42mm*20mm, 57g

Frequencies: 8 Channels from 5.645 to 5.945GHz:
CH1 5705   CH2 5685
CH3 5665   CH4 5645
CH5 5885   CH6 5905
CH7 5925   CH8 5945

RC805 FPV 5.8G Video Receiver 8CH with LED Display DJI Phantom F450 F550

Description:
- FPV 5.8G A/V Receiver (RX) W/Channel Number Display
- Power supply: 12V ± 5%
- Receiving current: 100mA
- Receive Frequency: 5725-5865MHz; 8 channels
- Receiver sensitivity:-90dBm
- Frequency Control: Built-in PLL
- Dual AV output: output analog audio and video signals directly
- Antenna interface: SMA (the pin)
- 8-channel receiver
- Dimension: 61 * 52 * 13mm; aluminum alloy


Working frequency:
CH1: 5705   CH2: 5685
CH3: 5665   CH4: 5645
CH5: 5885   CH6: 5905
CH7: 5925   CH8: 5945

Package Contents:
- 1 x TS5833 Transmitter
- 1 x Antenna
- 1 x Cable
- 1 x User Manual

- 1 x RC305 Receiver
- 1 x Antenna
- 1 x AV Output Cable
- 1 x Power Supply (JST) Cable
