Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $48.42 | $47.43 | $45.95 | $43.97 | Contact US |
Boscam 5.8Ghz 400mW 8 Channel FPV Audio Video Transmitter&Receiver TS353+RC805 For RC Car MultiCopter 4Km Range
TS353
- 5.8G 400mW AV wireless transmitter
- Transmitter frequency:5645-5945MHz;8CH
- Transmitting Power:400mW/25dBm
- Transmitting distance:>3500m(open area)
- Frequency control:built-in frequency and phase lock loop
- AV input:analog AV signal input
- ANT connector:SMA(inside the needle)
- Power supply:6.5-12volts
- Current supply:300mA
- Size:55*26*17mm
- Net weight:43g
- Gross weight:52g
RC805
- New version 5.8G wireless AV receiver
- Receiving frequency:5645-5945MHz;8CH
- Receiving sensitivity:-90dBm
- Frequency control:built-in frequency and phase lock loop
- Double lines AV output:analog AV signal output
- Antenna connector:SMA(Inside the needle)
- Power supply voltage: 5-12V
- Supply current: 150mA
- Dimension:75*54*15mm
- Gross weight: 130g

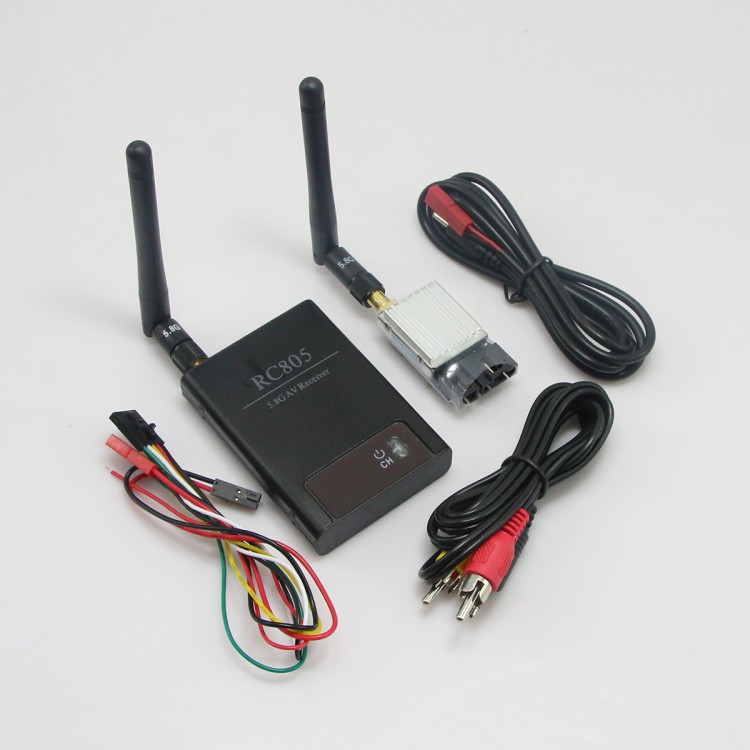

Package List:
- 1 X 5.8G 400mW transmitter(TS353)
- 1 X 5.8G receiver(RC805)
- 2 X 5.8G antennas
- 1 X AV-OUT cable
- 1 X camera in data cable
- 1 X Power cable for transmitter
- 1 X Power cable for receiver
- 1 x English Manual
