Boscam FPV 5.8Ghz 200mw Wireless Audio Video Transmitter Receiver 5.8G RC MultiCopter DJI Phantom Gopro Hero3 CCTV Monitor

Boscam FPV 5.8Ghz 200mw Wireless Audio Video Transmitter Receiver 5.8G RC MultiCopter DJI Phantom Gopro Hero3 CCTV Monitor

Specification:
- Use:Vehicles & Remote Control Toys
- is_customized:Yes
- For Vehicle Type:Airplanes
- Brand Name:Boscam
- Material:Metal
- Remote Control Peripherals/Devices:Receivers
- RC Parts & Accs:Transmitters
- Model Number:TS351+RC305
- Brand:Boscam
- Output Power:200mW
- Frequncy:5.8GHz
- Channel: 8 channels
- Range:  2Km (open area)

- Boscam 5.8G 200mW 8 Channel FPV Audio Video Transmitter Receiver  2Km Range For RC Car MultiCopter DJI Phantom CCTV Monitor

- TS351 Transmitter from Boscam contains Audio and Video for FPV.

- There are many counterfeit fake products do not contain audio.

TS351Transmitter Features:
- High grade switch regulator.
- Built-in microphone with volume control.
- Working voltage: DC 12 volts
- 8 Selectable channels: DIP switches
- Working frequencies:
     CH1:5705 - CH2:5685 - CH3:5665 - CH4:5645
     CH5:5885 - CH6:5905 - CH7:5925 - CH8:5945
- Current consumption: 180mAh
- Digital phase-locked loop circuit, no channel drift issues.
- High quality noise filtering circuit.
- Regulated output voltage for the camera.
- Low profile circuit board.
- All Molex type of lathed plugs for safe connections.
- Dimensions:14 x 26 x 39 mm (0.45" x 1" x 1.5" inches).
- Weight 26 grams (0.9 oz).
Please check the color of every wires before operation, then you won't go wrong.

RC305 Receiver Features:
- Receiving frequecny:5725-5865MHz;8CH
- Receiving sensitivity:-90dBm
- Frequency control:built-in frequency and phase lock loop
- Double lines AV output:analog AV signal output
- Antenna connector:SMA(Inside the needle)
- Power supply voltage: 6.5-12V
- Supply current: 150mA
- Dimension:60*52*13mm

2-pin connector:
- Red: DC8-12 Volts Input
- Black: GND
- 5-pin connector:
- Red: V output for your camera, normally 0.5V less than the DC input from the 2-pin connector.
- Black:GND
- Yellow: VIDEO
- White: AUDIO (6.0MHz),normally no use
- Green:AUDIO(6.5MHz),normally no use

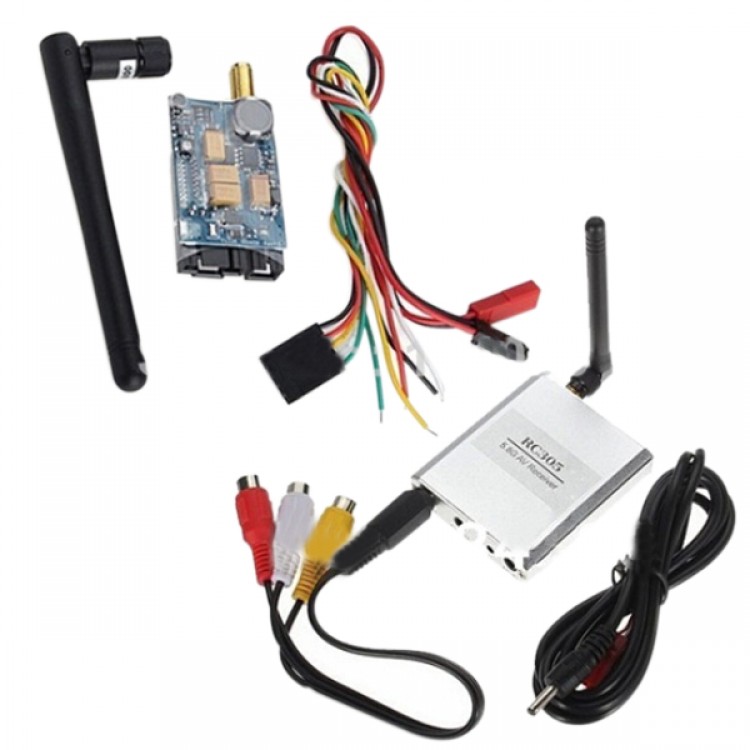

Package Includes:
- 1x 5.8GHz 200mw Transmitter TS351
- 1x 5.8GHz Receiver RC305
- 1x TX power cable and AV cable set
- 1x RX power cable and AV cable set
- 2x2dBi 5.8GHz omni-direction antenna
- 1x Manual
