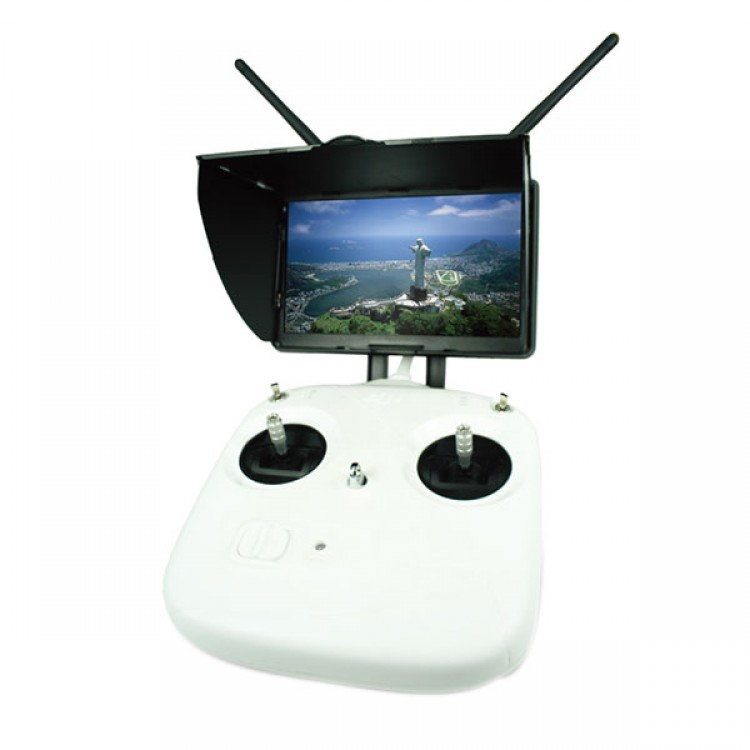

Boscam Galaxy D2 FPV 5.8G 7 Inch LCD Monitor Built-in 32CH 5.8Ghz Wireless Diversity Receiver and battery with Sun-hood

- The Boscam Galaxy D2 has been specially designed for radio mounting and includes a built in ball style monitor support and tilt mechanism that clamps directly to the handle of most RC transmitters allowing for adjustment of the screen to suit your preferred viewing angle. A standard tri-pod mounting bracket is also included if you need to transfer your setup to a tri-pod at any stage. The Built in sunshade keeps glare off the screen and collapses down after use to provide protection during transportation. The built in 4000mah battery provides plenty of operation time and eliminates the need for external batteries and messy wires. Offering 32 channels and Boscams renowned RF performance the Galaxy D2 is a great all in one package whether you are just starting in FPV or are an experienced UAV pilot looking for a reliable all in one solution to your video display needs.



Features:

- Built-in 5.8G Dual diversity receiver automatically for best reception

- Built-in 3 CH 5.8G AV output and 1CH AV input

- Supplied mounts work on most tripod or RC transmitter in the market



Spec.:

Channel: 32 CH

Frequency (MHz):

Band 1: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725

Band 2: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866

Band 3: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945

Band 4: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880

- Screen size: 7 inch(16:9)

- Screen type: TFT LCD screen/long life, LED backlight

- Resolution: 800X480

- Antenna Connector: RP-SMA

- Brightness: 400 cd/m2

- Contrast: 500:1

- View angle: 140/120degree(Horizontal/Vertical)

- Working Voltage: 7-24V

- Power consumption: <4w

- Size: 176x112X23mm (Height of light shield:102mm)

- Working Temp: -10 - +65 degrees

- Battery: 4000mah (Built in)
