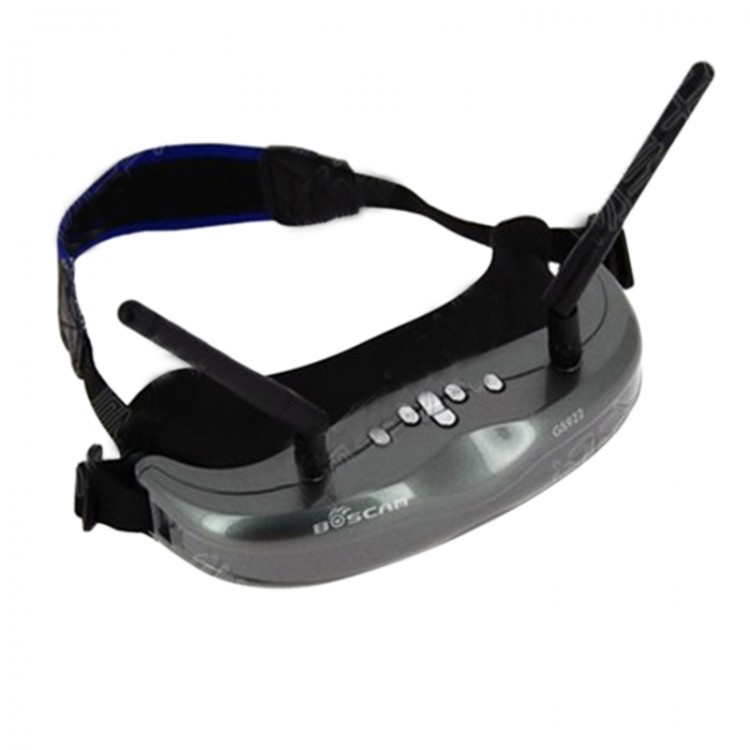

Boscam GS923 Wireless Video FPV Goggles with 5.8G Dual Diversity 32CH Receiver for RC Quadcopter Aerial Photography

Boscam GS923 Wireless Video FPV Goggles with 5.8G Dual Diversity 32CH Receiver for RC Quadcopter Aerial Photography

Specification:
- Resoltion:854*480(WVGA)
- Brightness:Adjustable
- Contrast:Adjustable
- Saturation:Adjustable
- Viewing Angle:30°(horizontal)
- Dual receiver,32CH
- Antenna Port:RP-SMA
- Frequency:5.8g dual diversity input,32 channel can be chosen,auto switch to the best signal channel.
- Auto Searching:Yes
- Size:172*88*60mm
- Power supply board:  support 2S and 3S power in,AV in/AV out
- Weight:about 142g
- Power:DC 5V/1A
- Power consumption:660mA  5A (maximum)
- Working Environment: -10°C ~+65°

2. Install Battery
a. Connecting 3S or 4S battery with data cable,
then connect data cable to the USB port of goggle glass.
3. Install Antenna
a. Can be installed with RP-SMA directional or omnidirectional antenna.
4. Video Switch
a. Short press OK button, the system will switch between two receivers
and AV IN, cycling in R1-R2-AV IN;
b. Long press OK button, choose to switch receiver automatically
(meanwhile the system will choose the receiver with best signal)
or switch receiver manually.

IV. Operation
1. Power On / Off
a. When finishing the steps above, short press power button,
the screen light on, then power on; Long press power button
above 3sec., the screen extinguishes, then power off.

2. Searching Frequency
a. When power on, receiving images by auto searching or manually
set frequency.
Auto. Searching: Press the searching button, the system starts
to search channel automatically. When search a channel, the system
will display the image automatically and lock the channel.

Remark: If no channel is searched, press the searching button again to search
the channel or set the frequency manually.

3. Menu Settings
a. Long press “M” button to enter into Menu setting.
b. Short press "M" button to select the Menu and set it by up-down button .
Long press M botton to exit .
MENU:
FREQUENCY       A1
BRIGHTNESS     30
SATURATION      25
CONTRAST         25
DEFAULT            NO
Display

Package list:
- 1 * Boscam GS923 FPV Wireless video Goggle
- 2 * 5.8G Antenna
