BOSCAM JS-MINI256-9 256*192 FPV Thermal Imaging Camera Drone Thermal Camera Supports HD Night Vision

Availability: In stock, usually dispatched in 1 business day

  • Price:$220.81
  • Price in reward points: 2208 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $216.39 $211.98 $205.35 $196.52 Contact US
Quantity:

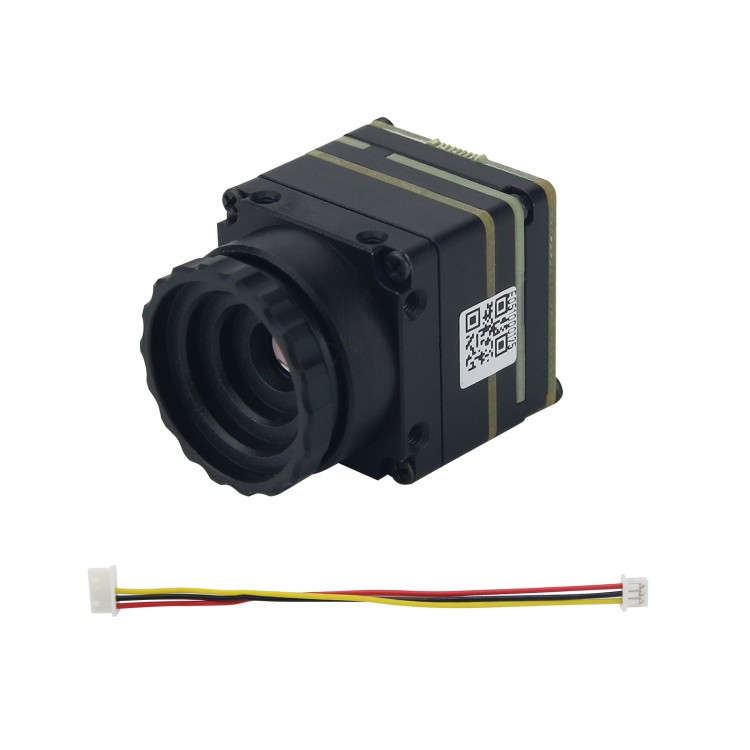

BOSCAM JS-MINI256-9 256*192 FPV Thermal Imaging Camera Drone Thermal Camera Supports HD Night Vision

Features:

- Thermal imaging camera for FPV drones
- With a resolution of 256*192
- Supports HD night vision
- Supports CVBS output
- Ideal accessory for your racing drones

Specifications:

1. Thermal Imaging Parameters:
- Model: JS-MINI256-9
- Resolution: 256*192
- Detector type: Vanadium oxide uncooled infrared focal plane array detector
- Frame rate: 25fps
- Minimum distance between adjacent picture elements : 12μm
- NETD: 40mk
- Response band: 8~14μm

2. Lens Specifications:
- Lens focal length: 4.0mm F1.0/6.8mm F1.0; 9.7mm F1.0
- Field of view (H*V):
 * 4mm: 45°(H)x33°(V)
 * 6.8mm: 26°(H)x20°(V)
 * 9.7mm: 18.1°(H)x13.6°((V)

3. Other Parameters:
- Color types (5 types can be set before leaving the factory): White Hot, Black Hot, Fusion, Iron Red and Fusion
- Power supply voltage: 5V-16V
- Power: ≤0.8W
- Output type: CVBS
- Analog output format: PAL
- Dimensions (without lens): 20mm x 20mm/0.8" x 0.8"
- Weight (without lens): ≤23g/ 0.05lb
- Operating temperature: -40°C to +80°C
- Storage temperature: -45°C to 85°C

4. Interface Definition:
1: POWER
2: GND
3: CVBS
4: UART TXD
5: UART RXD

Package Included:
- 1 x Infrared Thermal Imaging Camera

Packaging Details:
- G.W.: 0.25kg
