Product details
Reviews (0)

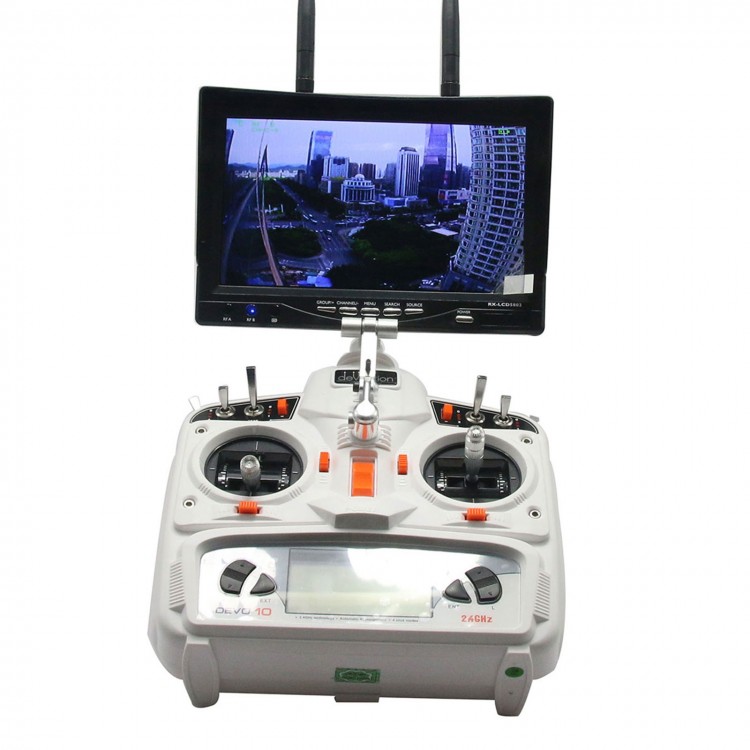

Boscam LCD5802 5.8GHz Diversity Receiver 7.0 Inch TFT LCD Monitor for FPV 800x480 Built-in-Battery

Specification
- Built-in 5.8Ghz Dual diversity receiver automatically for best reception
- Built-in 2CH 5.8Ghz AV output and 1CH AV input
- Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
- Work status OSD display : RSSI indication ; Battery indicator; Channel indication
- A key to automatic signal search
- Support Chinese and English menu
- Size: 180mm x 120mm x 50mm（Note: Sunshield height: 28mm）
- Working Voltage: DC 7-16V
- Power Consumption: 650 mA /12V
- Battery charging current : 850mA /12V ( max )
- Working temperature: -10C~+ 65 C

Features:
- Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
- Dual buffered AV outputs
- Can receive 2 different channels at the same time
- Not affect by 2.4GHz R/C Radios
- AV Receiver with Diversity inputs
- Small, light weight, durable
- 4 Bands and total 32 Channels
- Built-in battery , easy to carry and outdoor use
- A key to automatic signal search，Simple operation
- Work status OSD display:Always be aware of the device working condition.

Display Parameters:
- Screen size: 7”
- Screen type: TFT LCD Screen/long life, LED backlight
- Resolution: 800*480
- Brightness: 450cd/m2
- View Angle: 140/120degree (Horizontal/Vertical)

Band and Channel selection

CH	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
GROUP	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
A	5865 MHZ	5845 MHZ	5825 MHZ	5805 MHZ	5785 MHZ	5765 MHZ	5745 MHZ	5725 MHZ
b	5733 MHZ	5752 MHZ	5771 MHZ	5790 MHZ	5809 MHZ	5828 MHZ	5847 MHZ	5866 MHZ
C	5705 MHZ	5685 MHZ	5665 MHZ	5645 MHZ	5885 MHZ	5905 MHZ	5925 MHZ	5945 MHZ
d	5740 MHZ	5760 MHZ	5780 MHZ	5800 MHZ	5820 MHZ	5840 MHZ	5860 MHZ	5880 MHZ
