BOYA Lavalier Wireless Microphone System Transmitter Receiver for ENG EFP DSLR Cameras & Camcorder

BOYA Lavalier Wireless Microphone System Transmitter Receiver for ENG EFP DSLR Cameras & Camcorder

Description:
The BOYA BY-WM6 is an UHF wireless microphone system, designed for ENG, EFP DSLR video, and other professional applications. The receiver and the transmitter are lightweight and simple menu for easy operation.

Features:
- Ideal for ENG/EFP, DSLR Video
- Compander for High-quality and Clear sound
- 48 UHF Channels
- Mic and Line-in
- Easy to use, with display
- Selectable Mute function
- Camera-Mountable Receiver
- Monitoring sound by headphone output (Receiver)
- Includes Omni-Directional Lavalier Mic
- Includes XLR output cable, Stereo mini plug cable
- More than 6 Hours Continuous operation
- Operation range can reach up to 100m(300')(without obstacle)
- Power Supply: Two (2) AA batteries

System:
- Oscillator type: PLL Synthesized Control Oscillaton
- Carrier Frequency Range: 584 MHz-608 MHz
- Channels: 48
- Frequency response: 60Hz-15 KHz+/-3 dB
- Operation range: 100m (300')(without obstacle)
- Operating temperature: 14° F to 122° F (-10°C to +50°C)
- Storage temperature: 14° F to 131° F(-10°C to +55°C)

Transmitter:
- RF output power: 20 mW
- Antenna: Flexible
- Spurious emission: 250 nW or less
- Audio input connector: 3.5mm mini jack-
- Audio input level: 600 mV-2000 mV
- Reference deviation: ±7KHz (-60 dBV, 1 KHz input)
- Input frequency range: 20 Hz-20 KHz
- Power supply: Two AA batteries
- Operation time: 8 hours
- Dimensions: (H x W x L) 4.2” x 2.6” x 1.1" (10.6 x 6.7 x 2.9 cm)
- Weight: 95g (3.4 oz) without batteries

Receiver:
- Antenna: Flexible
- Audio input connector: 3.5mm mini jack
- Signal-to-noise ratio: 80 dB
- Distortion: 0.8% (-60 dBV, 1 KHz input)
- Earphone output level: 60 mW, 32 Ohms/1KHz
- Audio output level: 120 mV
- Power supply: Two AA batteries
- Operation time: 8 hours
- Dimensions: (H x W x L) 4.2” x 2.6” x 1.1”(10.6 x 6.7 x 2.9 cm)
- Weight: 98g (3.5 oz) without batteries

Lavalier Microphone:
- Transducer: Back electret Condenser
- Polar pattern: Omni-directional
- Frequency Range: 35Hz ~ 18 KHz
- Signal / Noise: 74dB SPL
- Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
- Connector: 3.5mm locking mini plus
- Length: 1.2m (4')

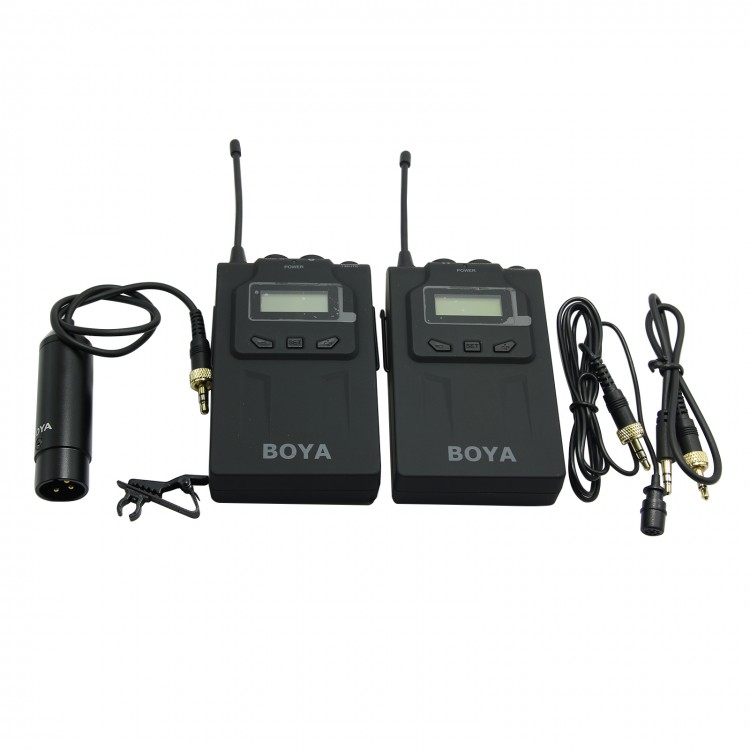

Package included:
- 1 x Transmitter
- 1 x Receiver
- 1 x Belt clip
- 1 x Shoe mount adapter
- 1 x XLR output cable
- 1 x Cable
