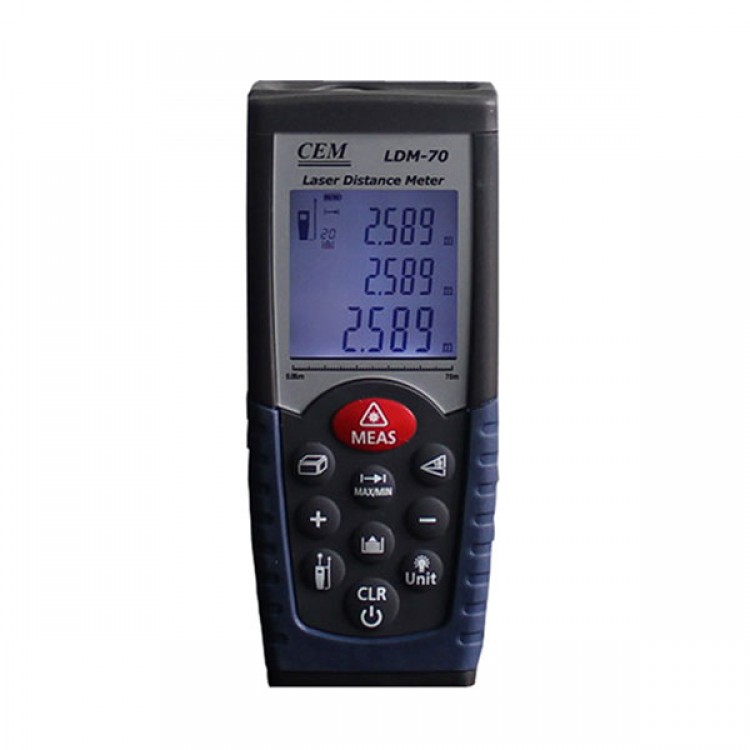

Brand CEM LDM-70 Digital Laser Distance Meter Volume Test 70m Measure Measuring
Description:
These professional Laser Distance Meters are designed to give special users a high accuracy, one person distance measuring and estimating tool to measure remote and difficult reaching places. The compact and handy base model was specifically designed for indoor applications. Shortcut keys for addition, subtraction, Pythagoras, area and volume calculation make measuring fast and very reliable. The last 20 measurements are also stored.
|
|
LDM-40
|
LDM-100
|
LDM-70
|
|
Measuring Range
|
0.05 to 40m(0.15ft to 131ft)
|
0.05 to 50m(0.15ft to 164ft)
|
0.05 to 70m(0.15ft to 230ft)
|
|
Measuring accuracy(2σ)
|
Typically: ±1.5mm(±0.06in)
|
Typically: ±1.5 mm(± 0.06 in)
|
Typically: ±1.5 mm(± 0.06 in)
|
|
Smallest unit displayed
|
1mm
|
1mm
|
1mm
|
|
Measuring units
|
m,in,ft
|
m,in,ft
|
m,in,ft
|
|
Measuring units
|
Class II 635 nm, < 1mW
|
Class II 635nm,<1mW
|
Class II 635nm,<1mW
|
|
Measuring units
|
IP 54
|
IP 54
|
IP 54
|
|
History measurement records
|
20
|
20
|
20
|
|
Keyboard Type
|
Super Soft-Touch (Long life)
|
Soft-Touch Keypad
|
Soft-Touch Keypad
|
|
Operating Temperature
|
0°C to +40°C(+32°F to +104°F)
|
0°C to 40°C(32°F to 104°F)
|
0°C to 40°C(32°F to 104°F)
|
|
Operating Temperature
|
-10°C to +60°C(14°F to +140°F)
|
-10°C to 60°C(14°F to 140°F)
|
-10°C to 60°C(14°F to 140°F)
|
|
Battery Life
|
Up to 4,000 measurements
|
Up to 4,000 measurements
|
Up to 5,000 measurements
|
|
Batteries
|
Type AAA 2 x 1.5V
|
Type AAA 2 x 1.5V
|
Type AAA 2 x 1.5V
|
|
Auto. laser switch-off
|
after 0.5 min
|
after 0.5 min
|
after 0.5 min
|
|
Auto instrument switch-off
|
after 3 min
|
after 3 min
|
after 3 min
|
|
Angle measurement range
|
|
|
±45°
|
|
Tilt sensor accuracy
|
|
|
±0.5°
|
|
Size(HxWxD)
|
115mm x 48mm x 28mm (LDM-100)
|
||
|
Weight
|
135g (LDM-100)
|
||
Feature:
|
Area, Volume Calculations
|
YES
|
|
Indirect measurement using Pythagoras
|
YES
|
|
Addition/Subtraction
|
YES
|
|
Continuous Measurement
|
YES
|
|
Min/Max Distance Tracking
|
|
|
Display illumination and multi-line display.
|
YES
|
|
Buzzer indication
|
YES
|
|
Multifunctional end pieces
|
YES
|
|
Angle measurement using Tilt sensor
|
No
|
|
Timer(self-trigger)
|
No
|
|
Keypad illumination
|
No
|
|
Tripod thread
|
No
|
