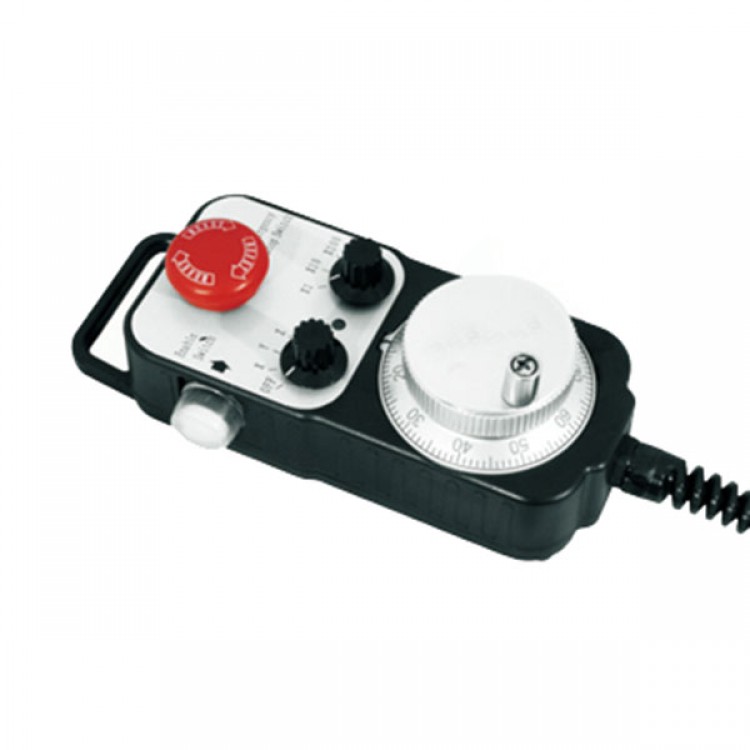

Brand HEDSS CNC Manual Optical Rotary Encoder Pendant with 100 MPG Control DC5V

Brand HEDSS CNC Manual Optical Rotary Encoder Pendant with 100 MPG Control DC5V


Features:

Suitable for manual pulse input type such as NC or Milling machinery
High reliability, terminal connection type

Power supply: 5V DC (We also have 12V DC power supply, if you need this type, please note in the order, or we will send

5V DC as default.)

Application
Industrial tooling machinery

1. ELECTRICAL SPECIFICATIONS

A). Output wave: Square wave

B). Output signals: A, B, (Line driver output A, A, B, B phase)

C). Current consumption: ≤100mA

D). Response Frequency: 0~20KHz

E). Output phase difference: 90*

F). Supply voltage: 5V DC (We also have 12V DC power supply, if you need this type, please note in the order, or we will send

5V DC as default.)

G). Signal leve: LVH≥85%Vcc, VL≤0.3V

H). Number of pulses: 100 (Other number of pulse available on request)

I). Output circuit: Open collector NPN or Push pull or Line driver, or Voltage

2. MECHANICAL SPECIFICATIONS

A). Signal position: 4 kind

B). Speed without sealing: 500rmp

C). Starting torque without sealing: ≤1.0x 10-2Nm (+25*C)

D). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ

E). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ

F). Working life: MTBF≥10000h (+25*C, 2000rpm)

G). Weight: Appraisal 275g

3. ENVIRONMENTAL SPECIFICATIONS

A). Working humidity: 30~85% (No condensation)

B). Storage temperature: -30*C~85*C

C). Working temperature: -10*C~70*C

D). Protection class: IP54

Wiring:

User can wire this unit to the CNC system with easy.


Wire	Color	Function
1	Red	+5V MPG
2	Black	GND MPG
3	Green	A signal MPG
4	White	B Signal MPG
5	Green/black	+24V LED +
6	White/black	GND LED
7	Yellow	X Axis select
8	Yellow/black	Y Axis select
9	Brown	Z Axis select
10	Brown/black	4 Axis select
11	Gray	X 1 Select
12	Gray/black	X10 Select
13	Orange	X100 Select
14	Orange/black	COM of scale select and Axis select
17	Red/black	N.C, reserve for future use
