Description:

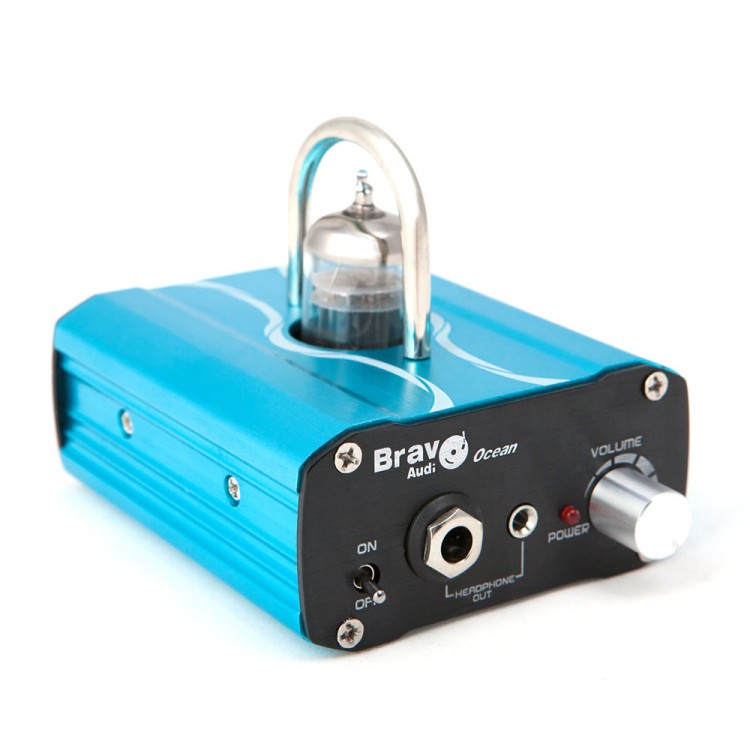

- This is a beautiful looking Tube Class A Headphone Amplifier with Aluminum case.
Ocean has 2 x input port:
3.5mm jack
RCA jacks
you can use either of them connect to audio source (ipod, laptop, iphone etc)
Ocean has 3 x output port:
3.5mm jack
6.35mm jack
RCA jacks
you can use either of them connect to Headphone (3.5 or 6.35mm) or power amp (RCA jacks)
As Bravo Ocean is pure class A amp, the aluminum casing is used as heat sink, so the case is hot when working. it's normal, please dont worry.
FAQ:
Q: This Amp only has only 1 Tube, how can I amplifier stereo signal?
A: There are 2 triode in this Tube (12AU7), It's just like dual core CPU in your PC. So both channels were get amplifiered by the Tube.
Specification:
- In Put Power: DC24V
- Input Sensitivity: 100mV
- Input Impedance: 100KOhm
- Out-Put Impedance: 20~600 Ohm
- Gain: 30dB
- Frequency response: 10Hz-60KHz +/- 0.25dB
- Signal/Noise Ratio: >90dB
- Dynamic range: 84.6dBA(300 ohm) 89.8dBA(33 ohm)
- THD: 0.016%(300 ohm) 0.45%(33 ohm)
- IMD + Noise: 0.045(300 ohm) 0.42(33ohm)
- Dimension: 115mm (D) X 82mm (W) X 78mm (H)
- Shipping Weight: 850 g
What's in Package:
- 1 x Bravo Ocean Headphone Amplifier
- 1 x Brand new Shuguang 12AU7 tube
- 1 x Switching Power Supply Universal AC 100V-240V / 50~60Hz to 24V DC 1A out put
- (Auto-Detect International Compatible)
- 1 x Power cable with AC wall plug (We have 4 Standard Plugs shown in below picture. we will ship you the right plug accroding your paypal address, if you want a different one, please let us know.)
