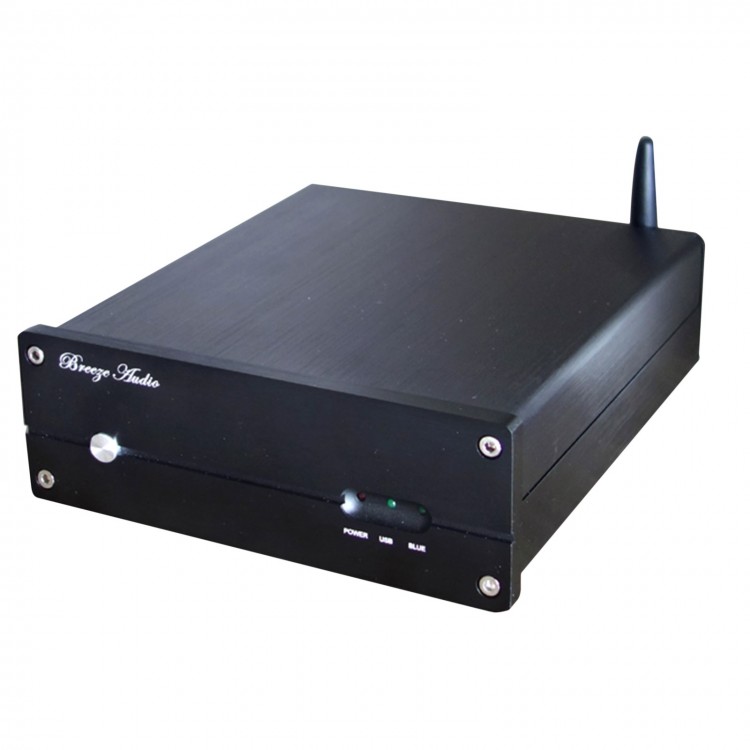

Breeze Audio SNY-20A Bluetooth Turntable USB Decoding ES9018K2M XMOS USB DAC Headphone Amplifier Support DSD 24 bit /192khz

Breeze Audio SNY-20A Bluetooth Turntable USB Decoding ES9018K2M XMOS USB DAC Headphone Amplifier Support DSD 24 bit /192khz

There are two versions: Purchase, please choose in Option Box,shipping fee not included,please choose Express shipping as the package is over 2kg!

version1 (Option Grey) :XMOS program : Bluetooth, XMOS, support 192K 24BIT transmission, support DSD and PCM decoding hardware decoding   93.9usd

version2 (Option Black): PCM2706 program : does not support DSD decoding , But not everyone needs to use DSD, so to see their own needs to choose it !     70.59usd

Description:
- This product can be connected to a home computer using USB as USB decoder can also link the phone's Bluetooth receiver, very convenient. 3.5 with RCA output and headphone output port can be used as a headphone amplifier directly connectedheadphones.
- note that Bluetooth volume can be controlled via mobile phones, and some customers do not adjust the phone Bluetooth volume will feel smaller than the computer. In addition, Bluetooth and WIFI routers do not close together, there will be interference
noise, we can distance between 15 cm .

Use instructions :

USB decoding of PC port:

1: back of the USB/ Bluetooth switch selector switch to USB position, then the power adapter, and then put the power switch, USB wire to the computer USB port, then the power adapter from green to red

2: install the driver, you can install the attached with the 2.19 drivers, the implementation of the EXE file will be automatically installed, we can send the drive, you can download the driver wizard automatically installed in Baidu.

3: right click on the lower right corner of the computer window of the small speakers, select USB XMOS as the default player .

 Bluetooth usage:

Usage is very simple, the machine back board to the Bluetooth file, open the phone Bluetooth receiver, a new Bluetooth device is discovered, paired links can be, these audio no longer output from the mobile phone, from the DAC output directly, tone, relatively large increase.

Use matters needing attention:

DSD mode can only be aimed at the computer decoding, Bluetooth is no DSD transfer protocol, but all the PCM format is no problem, such as MP3 FALC APE WAV and other fully compatible PC mode DSD volume will be lower. than the PCM, when the power amplifier to open the volume of 1 points.
Also DSD Mode PC right under the corner of the small speaker volume is must be open to 100%, DSD to output, other manufacturers of machine is the same, so headphones to DSD function best amp PCM no matter, can be adjusted by the volume of the computer directly controls the output.

Features:
- 1: Use ES9018K2M core decoder chip as the decoded output, support 192K 24BIT, music player and support DSD, dynamic, detail, feeling very good music make your ordinary phone and computer hosts an extraordinary tone improved a great deal of
- 2: Bluetooth 4.0 wireless transmission, I2S format inside the machine is directly connected ES9018, lowest distortion
- 3:With high-quality XMOS USB as asynchronous processing, let the computer out of the level of detail, low-frequency performance than the built-in sound card has greatly improved
- 4:Full aluminum housing, high-end fashion, output can be connected to speakers, amplifiers, and directly connected headset
- 5:The output of op amp National Semiconductor LME49860, large dynamic low distortion, output terminals for the US CMC, a large number of imported tantalum capacitors, Japan brand, ELNA electrolytic, LT top regulators and other high-end components.
- 6:US CMC terminal
- 7: Multiple sets of input power supply voltage, a large number of imported filter element, VISHAY original bridge
- 8: Free copper low leakage flux R type transformer power supply, low interference, sound fine
- Bluetooth has the lowest distortion I2S output port, a perfect match ES9018 lossless transmission.

Parameter:
- Voltage:  AC220V or AC110V  (Please select)
- Output:  RCA + 3.5 stereo headphone transposon
- Input:  Bluetooth + USB
- Weight :  2KG

Instructions for use:
1:Rear USB / Bluetooth USB select switch to the position, connect the power adapter and the power switch marked, USB cable connected to the computer USB port, then the power adapter from green to red
2:Install the driver, you can install the drive inside the attaching of 2.19, after the implementation of EXE file will be automatically installed, the driver sent us online, you can also download the driver at Google automatic installation wizard

Use notice:

- 1:DSD mode can only decode for PC
- 2:Bluetooth is not DSD transport protocol, but supports all PCM format is no problem, such as WAV MP3 FALC APE, etc. are fully compatible. DSD PC mode volume will be lower than PCM point, when the amplifier is to open a large volume 1 cr.
- 3:Under DSD mode PC speaker volume is small bottom right corner of the computer must be open to 100%, DSD can output
