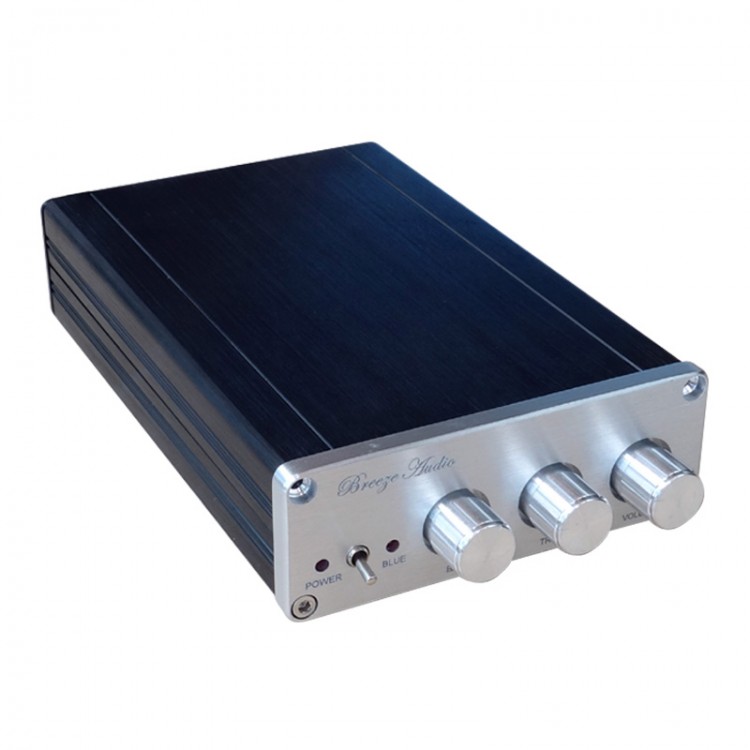

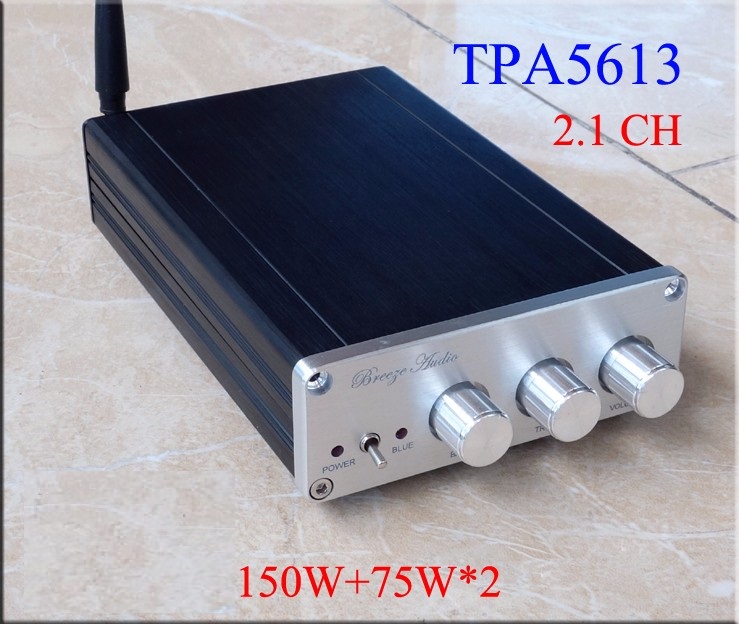

Breeze Audio TPA5613 BA10C 2.1 Channel Subwoofer Digital Power Amplifier without Bluetooth

Breeze Audio TPA5613 BA10C 2.1 Channel Subwoofer Digital Power Amplifier without Bluetooth

Product Description:

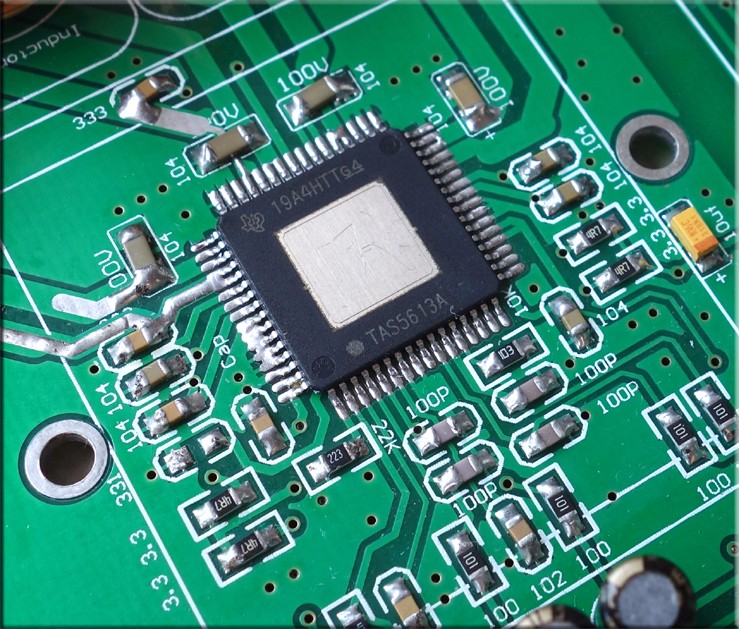

- This TAS5613d amplifer can drive DC35V 4ohm ,and offer 150w +150w +75w*2 2.1channel output ,it was made by PurePath™ HD Technology and TI advanced closed loop architecture.
- This amplifier can be directly powered by switch power and 12V-24V

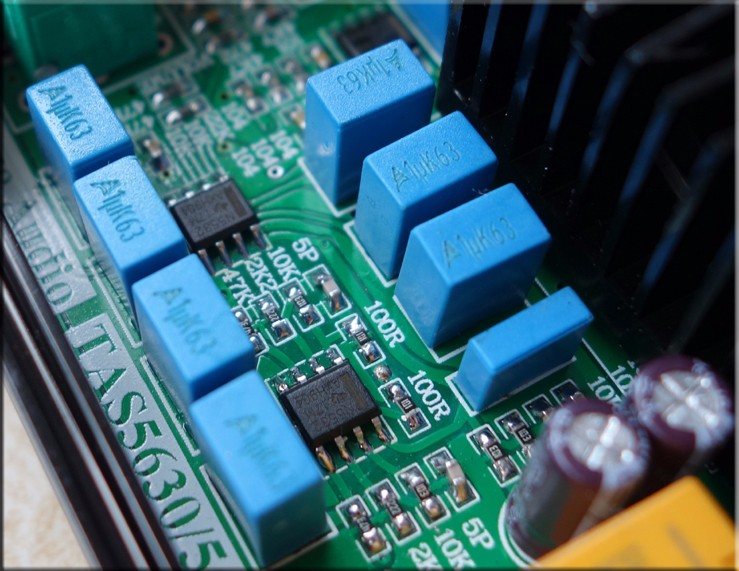

- Four coupling capacitor now updated as MUSE capacitor or better ELNA capacitor
- Input capacitor updated professional green MUSE AUDIO capacitor
- Low pass filter, better subwoofer

Product Specification:
- THD+N:<1%
- Signal to noise ratio:>100dB
- Input impedence:20KΩ
- Output offset voltage:<150mV
- Transfer range:50V/us
- Frequence range:20Hz--20kHz
- External size:(W)102mmX(H)36mm(D)138mm(excluding the knob and terminal sizes)
- Load range:4-8ohm
- Power range :DC18-DC32 (Plug size 5.5MM.internal size 2.1MM)
- Note: This item is excluding the power supply ,you should prepare it by yourself
- Ouput power (under DC35V tested)
- Subwoofer :150W 4ohm  80W 8ohm

Package List:
- 1 x Breeze Audio TPA5613 BA10C Amplifier without Bluetooth
