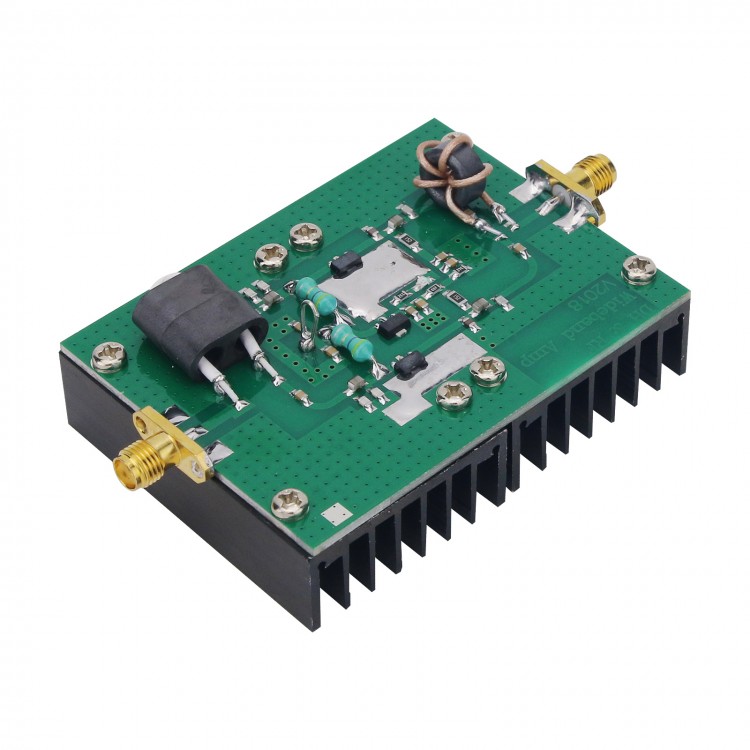

Broadband RF Power Amplifier 20MHz-512MHz 5W Linear Amplifier for FM Radio Remote Control V2019

Specification:
Working Frequency: 20MHZ to 512MHZ can work well
Input Power: 100mW (maximum)
Output Power: 5W typical value
Power Supply Voltage: 15V maximum
Working Current: 1A (MAX)
RF Interface: SMA female, external thread, internal hole
Appearance size: 72mm * 56mm * 10mm

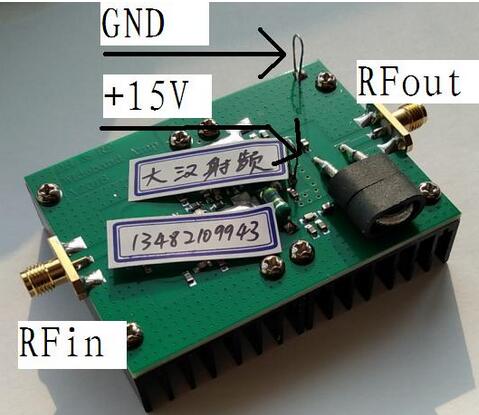

Wiring Diagram:
One of the iron hooks is connected to the negative pole of the power supply, which is GND
Another iron hook is connected to the positive pole of the power supply, which is +15V

Output Detailed Index: (test condition, 15V, input 100mW)
frequency (MHz)  power (watt)  harmonics (dBc)
       20                         3                        16
       40                        5.1                      12
       60                        5.2                      11
       80                        5.5                      11
      100                       5.3                      12
      150                       5.1                      13
      200                       5.2                      19
      250                       4.9                      20
      300                       3.3                      20
      350                       3.3                      26
      400                       3.7                      27
      450                       3.7                      35
      500                       2.6                      40
      512                       2.5                      45

Package Included:
1 x RF Power Amplifier
