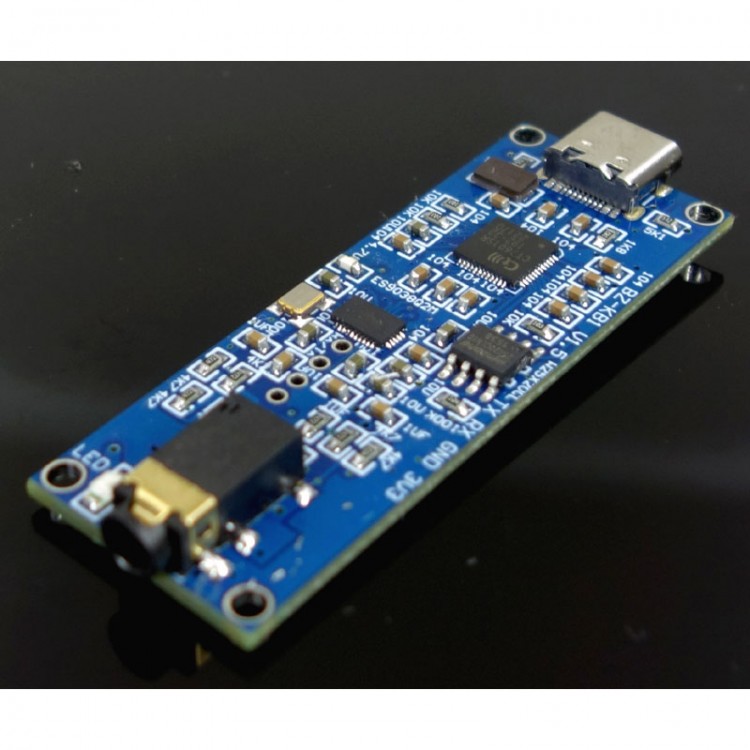

BRZHIFI BZ-KB1 ES9038 150mW DAC Audio Decoder Headphone Amplifier Board for 3.5mm Headphones
Features:
- Portable Hifi DAC headphone amplifier
- 3.5mm headphone jack
- Power saving with low power consumption
- ES9038Q2M HD DAC
- 150mW driving force and low noise
- Supports DSD128
- Hi· Res Audio
- Driver-free for Android mobile phones. Plug and play
- Quickly boosts the sound quality drive
- Widely used, it provides a smooth experience with zero latency. The portable decoder amp can be used for gaming and watching dramas thanks to nearly zero latency
- The core solution is CT7601 + American ES9038Q2M high-precision decoder. The chip THD+N is 120dB, and the THD is as low as 0.001%. This is due to the 100M active low-phase noise crystal oscillator and the fully optimized PCB circuit design. The sound analysis is very well detailed, so it can drive regular headphones and small earbuds. In addition to connecting to a mobile phone, it can also be connected to a computer when used as an external USB sound card
- The KB1 can be connected to an amplifier or active speakers
- Powerful sound effects tuning: 5 years of research and development. Each part is carefully selected
- Cellphone type-c cable supports 120W fast charging.
- Worth having: Thanks to the warm and pure treble, mid-range and bass, it's suitable for audiophiles. Can be used for classical, modern and pop music
- Supports DSD original demo format
- 4Vrms/160mW output power: It works with most headphones
- HIFI DAC supports for Android phones such as Huawei and Xiaomi. The dynamics are surging, the low frequency is full, the details are transparent, and you will not get tired of listening for a long time
- Standard TYPE-C interface: easy to connect mobile phone and computer

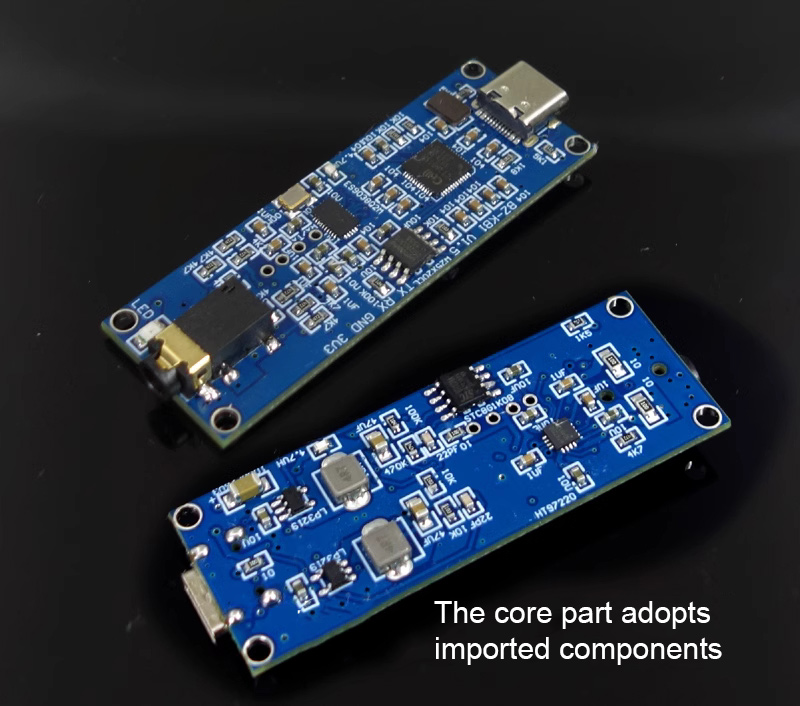

- The core part adopts imported components
Specifications:
- Format support: 192K/24BIT DDR64-128
- Output power: 160mV
- Frequency response: 20Hz-40kHz (+0.5dB)
- THD+N: 0.0004% at 32Ω (A-Weight at 1.6V)
- Dynamic range: 125dB at 32Ω (A-Weight)
- Signal-to-noise ratio: 126dB at 32Ω (A-Weight)
- Output impedance: <0.5Ω
Package Included:
- 1 x DAC Headphone Amp
- 1 x Cellphone Type-C Cable
- 1 x PC Type-C/A Cable
Packaging Details:
- G.W.: 0.15kg
