Features:
- ES9023 decoding chip has excellent analysis, good level, and excellent dynamic performance
- Use TL072 op amp as LP output in order to maximize the decoding performance
- Digital circuit dedicated, customized pure copper high-power closed-loop anti-interference inductor to ensure long-term high-current output
- MA1207 power amplifier chip, high power, low heat, high current output, low frequency shock
Description:

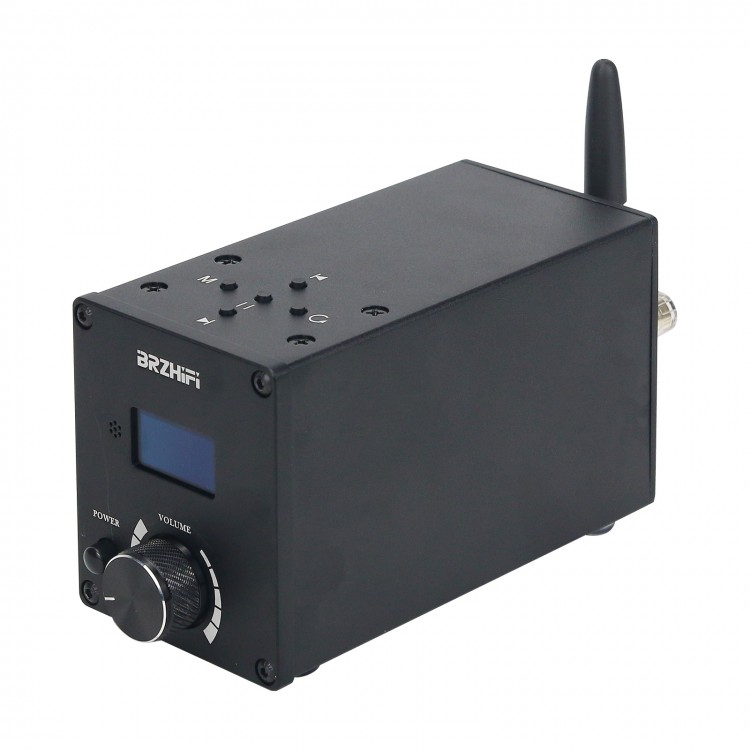

- Model: C50 Amplifier
- Chip model: Infineon MA12070
- Impedance: 4-8 ohms
- Channel: 2.0
- Output power: 160W
- Rated voltage: 36V
- Bluetooth protocol: 5.0 SBC / ACC
- Input method: U disk, TF card, Bluetooth, AUX-3.5MM, USB (support computer input)
- Output power: 80W×2 4Ω 40W×2 8Ω
- Distortion: THD+N0.003%
- Signal to noise ratio: 110dB
- Input voltage: DC12V-24V DC (socket 5.5MM*2.5MM)
- Recommended match: 3-8 inch passive stereo speakers
- Size: 74MM high * 62MM wide * 119MM deep (excluding protruding parts)
- Net weight: 380g
Package included:
- 1×Amplifier
