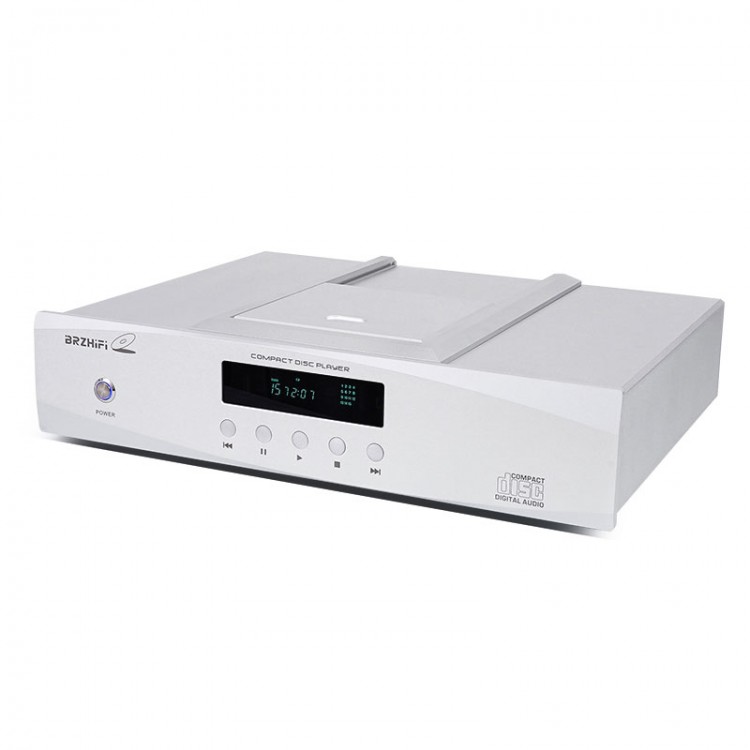

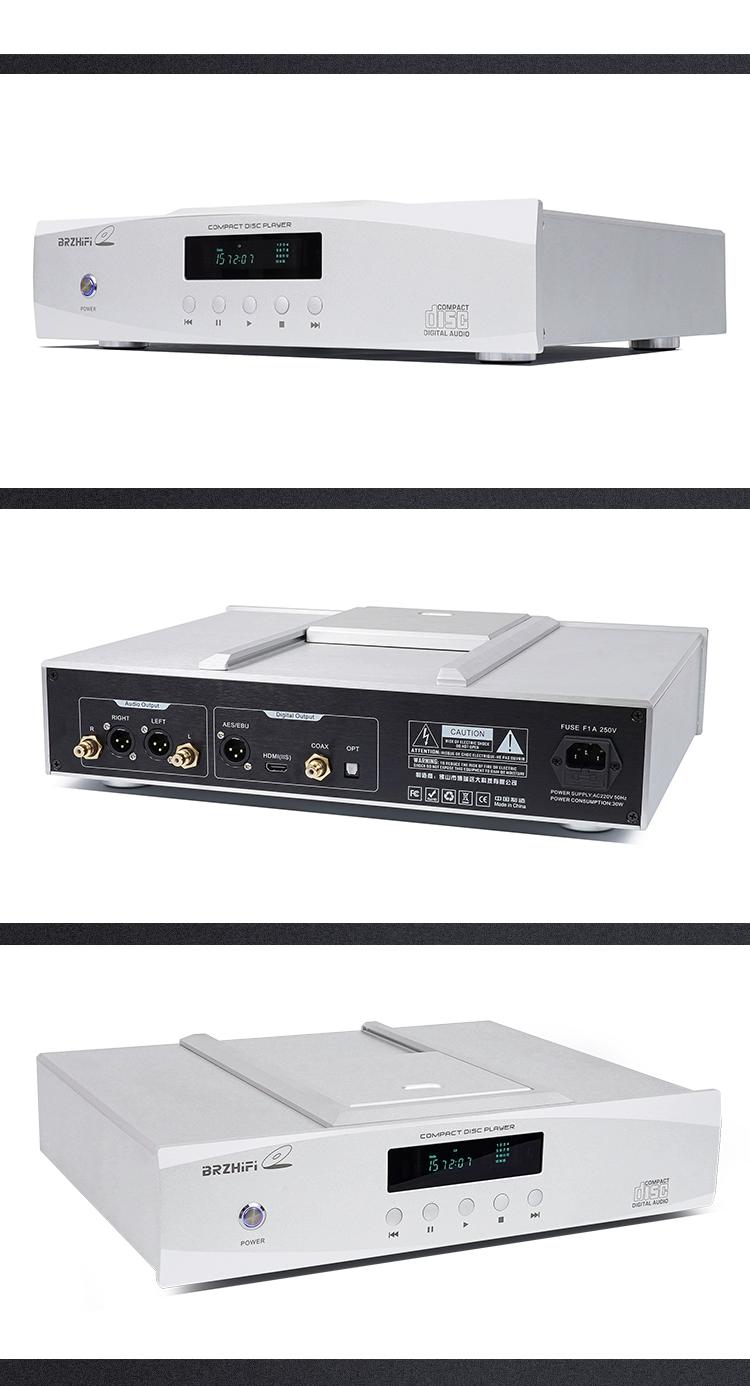

BRZHIFI CD100 CD Player Balanced Output Audio Player Decoding Digital Turntable High Quality Servo System for Philips

BRZHIFI CD100 CD Player Balanced Output Audio Player Decoding Digital Turntable High Quality Servo System for Philips

Features:
- CD100 supports mainstream CD formats, allowing you to enjoy music collections in a classic way, accurately restore the music itself, make the music more delicate and pleasant, and have richer and fuller emotions. Meet the listening needs of most audiophiles and enjoy high-quality lossless music.

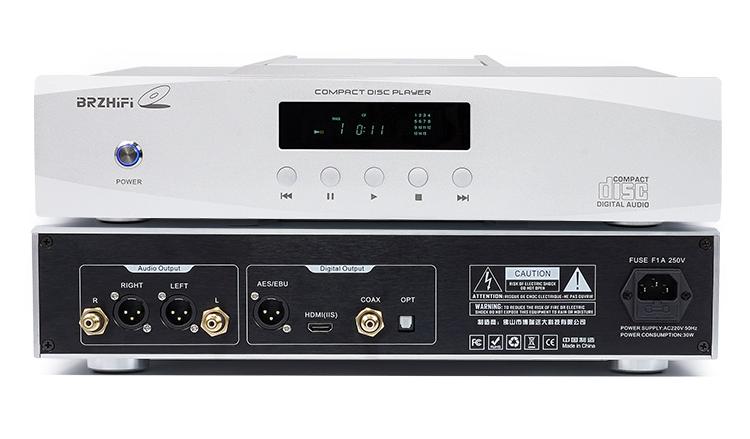

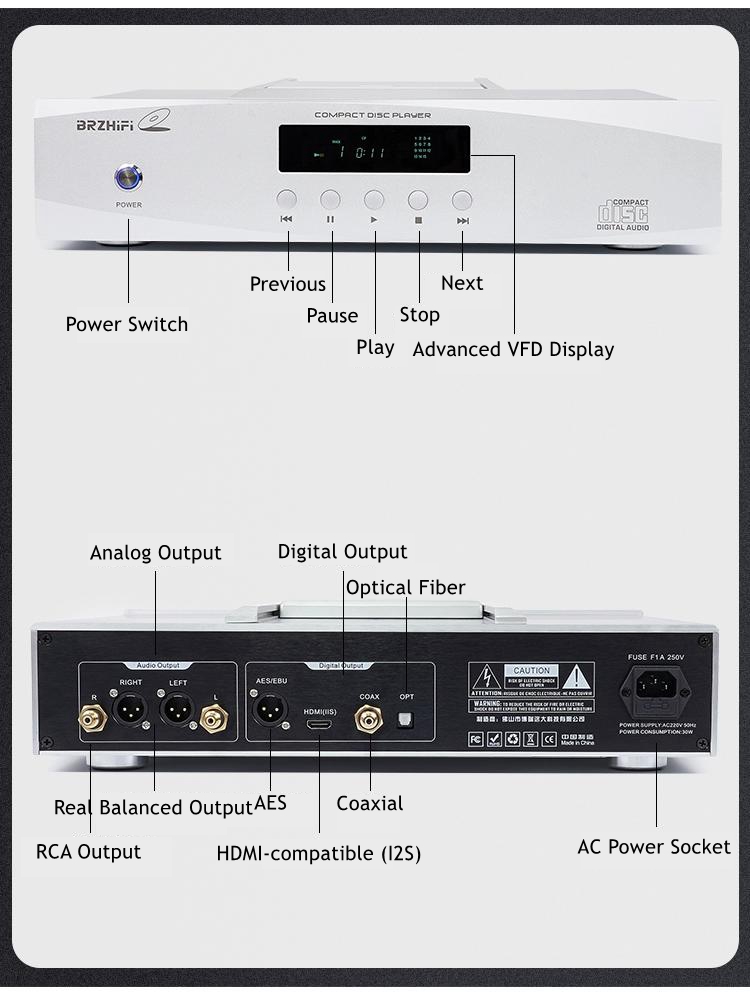

- When used as a CD digital turntable, it reads digital audio from CD discs and outputs it through fiber optic, coaxial, AES, and HDMI-compatible (I2S). The output is connected to an external independent decoder, such as our DA10PRO and DC300 decoders, which can have various styles when paired with different audio systems. As an independent decoding output, it is decoded by the built-in CD player and output simultaneously through RCA single ended and XLR balanced output interfaces. It can be connected to external front-end, power amplifier, active audio, etc.
- Servo chip: for Philips SAA7824, the latest dedicated servo chip for CD players.
- MCU: Independently developed dual MCU chips, with reasonable division of labor for servo control.
- SAA7824 is widely recognized as a good servo component, used for Accuphase and MBL. Especially for electronic tubes equipment, prolonged operation due to high temperatures can reduce the lifespan of capacitors and resistors. But using for Philips ensures better protection of the entire circuit's smoothness and stability, extending the lifespan of the entire machine. Combining self-developed dual MCU chips and reasonable division of labor for servo control.
- For SANYO high-precision movement, improved mechanical structure, better stability, and strong disc reading ability.

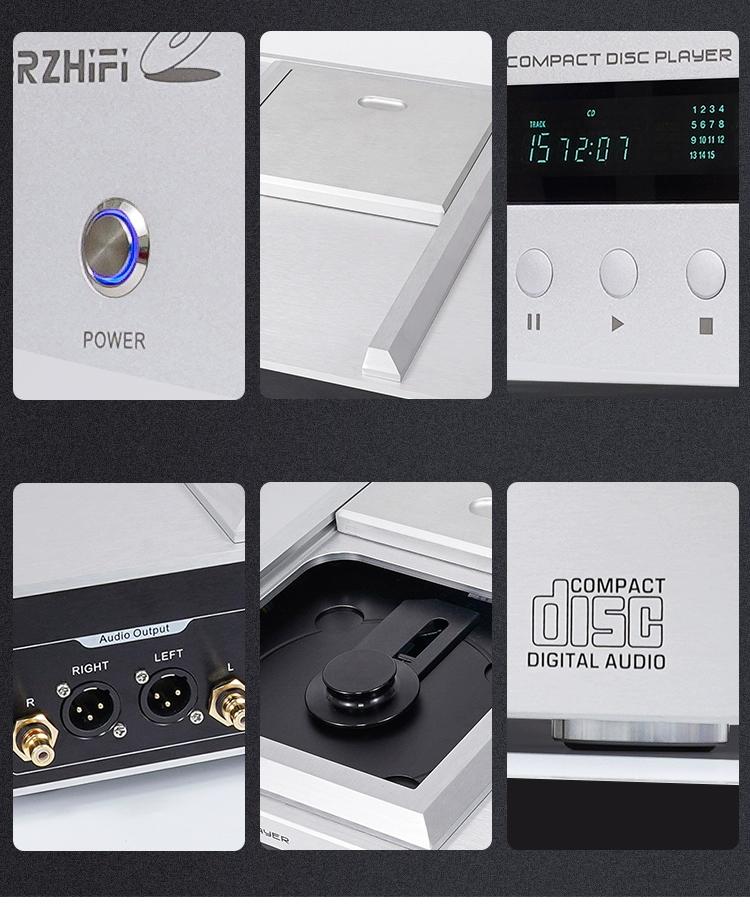

- The CD100 tray adopts an overhead tower type shock-absorbing system, adding a thick metal shock-absorbing base to greatly enhance the buffering effect, making the optical disc reading system stable and uniform, with a strong sense of balance. It is matched with a precision made all aluminum disc holder, processed by high-precision CNC lathe, making the rotation smooth and very stable.
- AKM DAC chip output circuit paired with OPA604 operational amplifier.
- Using the same decoding chip as the French Wenhao CD, its sound is soft, wide, delicate, and moist, with a warm and mellow tone. After multiple rounds of tuning, this inconspicuous chip fully demonstrated its true strength.
- Pure copper square transformer, made of oxygen free copper enameled wire winding, with 5 sets of independent power supply for digital/analog circuits. E-type transformer is widely used in many imported DC machines, and its sound is also very distinctive.
- Multiple sets of filtering and stabilizing power supply circuit: for ON rectifier diode + for ELNA filtering capacitor + for LT stabilizing transistor: The rectification adopts high-power rectifier tubes and multiple independent rectification filters to stabilize the voltage, striving to minimize interference signals, make music purer, and background quieter. The circuit boards are all made of gold-plated plates, which provide excellent sound performance during operation and showcase the delicate beauty of music.

Specification:
- Output level: single-ended 2V (±0.5dB), balanced 4V (±0.5dB)
- Frequency response: 10Hz - 20kHz (±0.5dB)
- Power consumption: 35W

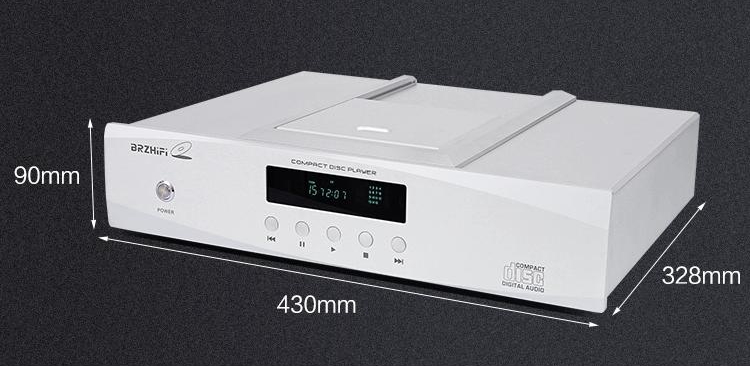

- Product size: 430 x 90 x 328mm
- Net weight: about 10kg

Package Included:
- 1 x Host

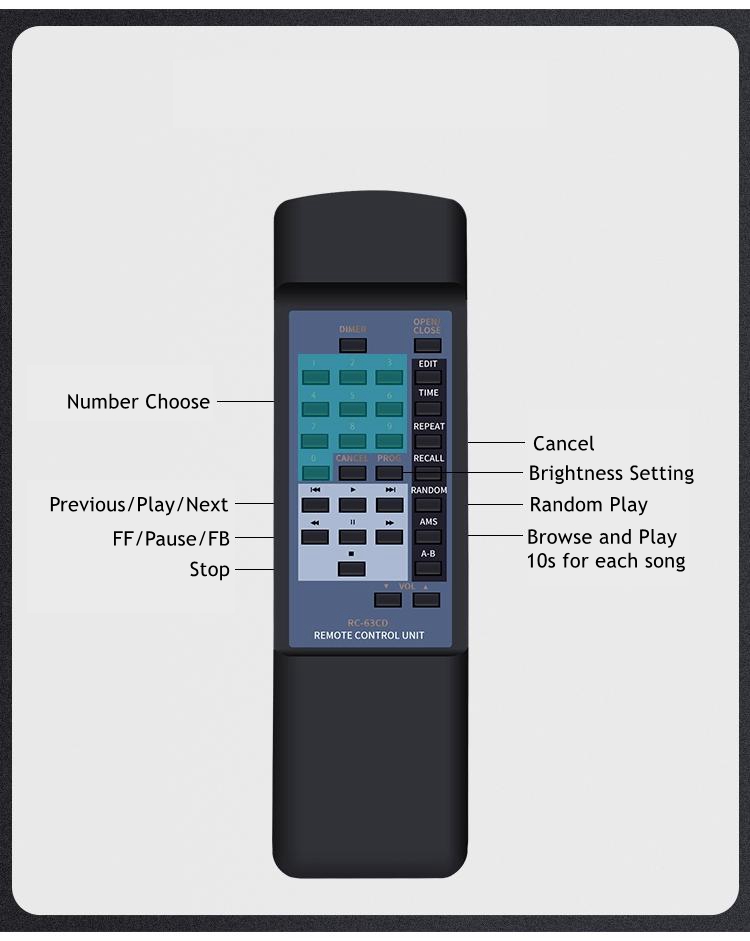

- 1 x Remote Control
- 1 x Power Cable
- 1 x Disc Holder
