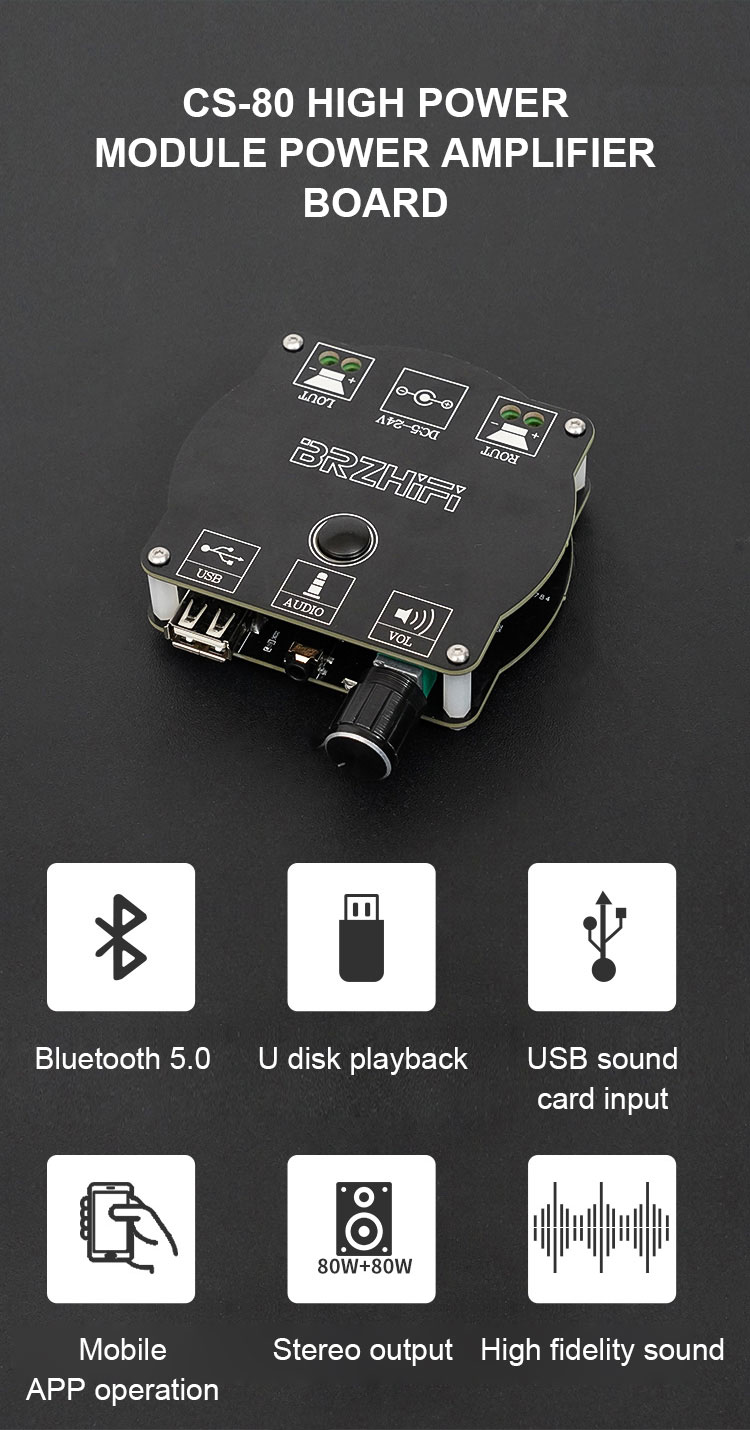

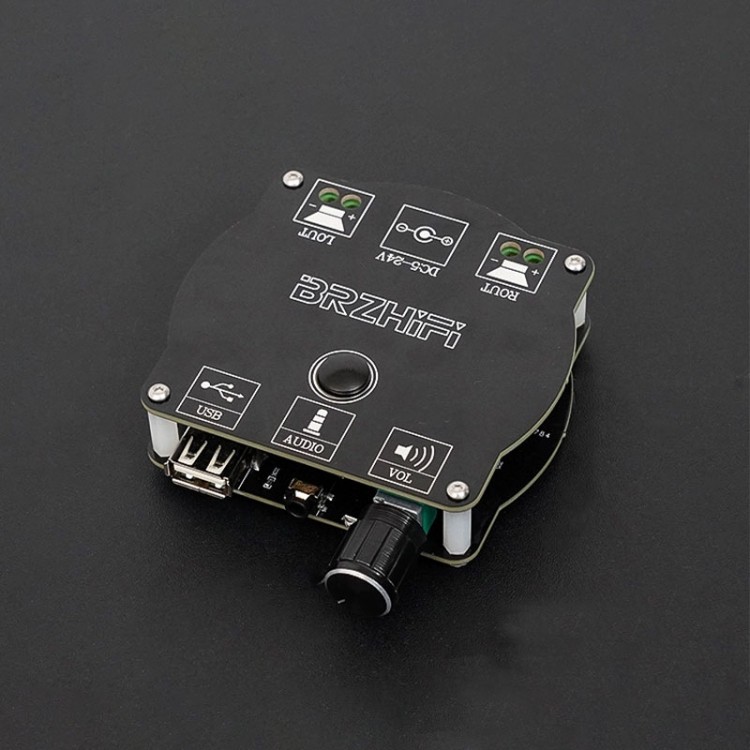

BRZHIFI CS-80 Bluetooth5.0 HiFi Power Amplifier Board Stereo 80W High Power Digital Amplifier Board

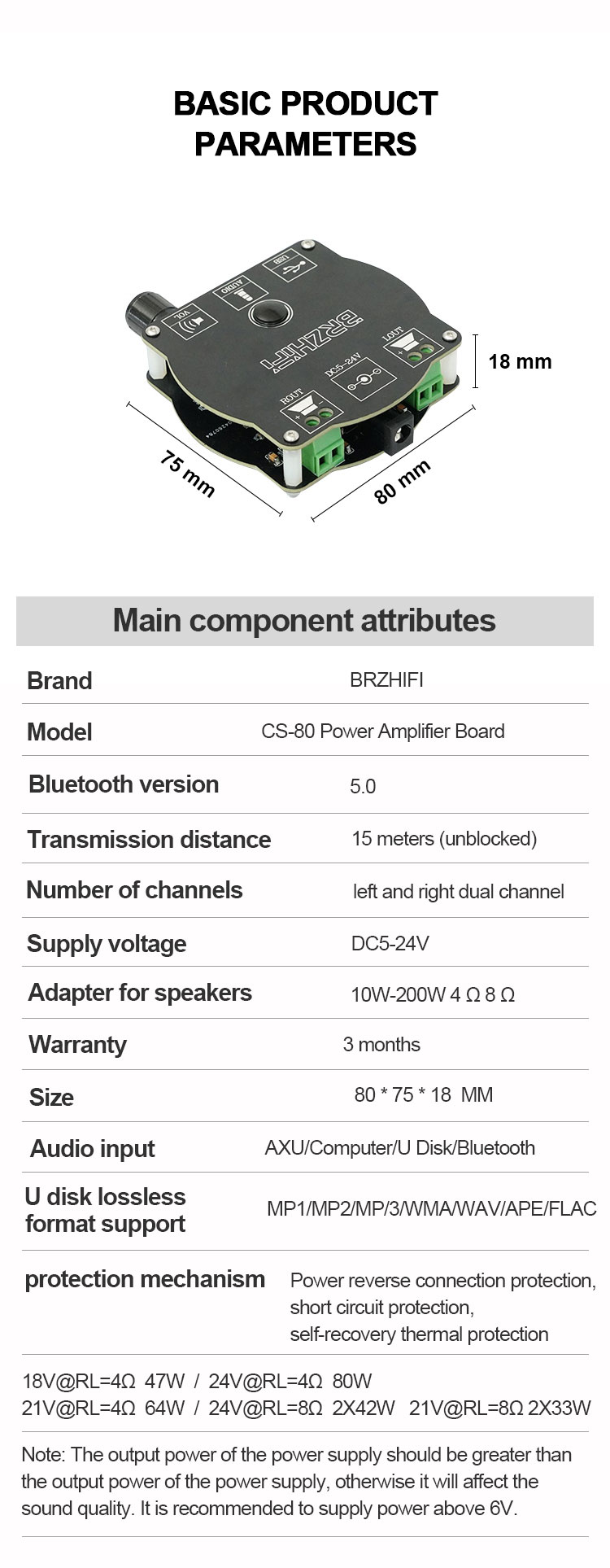

Specification:
- Model: CS-80
- Bluetooth version: 5.0
- Transmission distance: 15m (without obstacle)
- Channel number: left and right, dual channel
- Power supply voltage: DC 5 - 24V
- Applicable speaker: 10W - 200W 4ohm 8ohm
- Size: 80 x 75 x 18mm
- Protection mechanism: power-reverse protection, short-circuit protection, self-recovering over-heating protection
18V at RL = 4ohm 47W
24V at RL = 4ohm 80W
24V at RL = 8ohm 2 x 42W
21V at RL = 4ohm 64W
21V at RL = 8ohm 2 x 33W
- Supported USB flash drive lossless format: MP1/MP2/MP3/WMA/APE

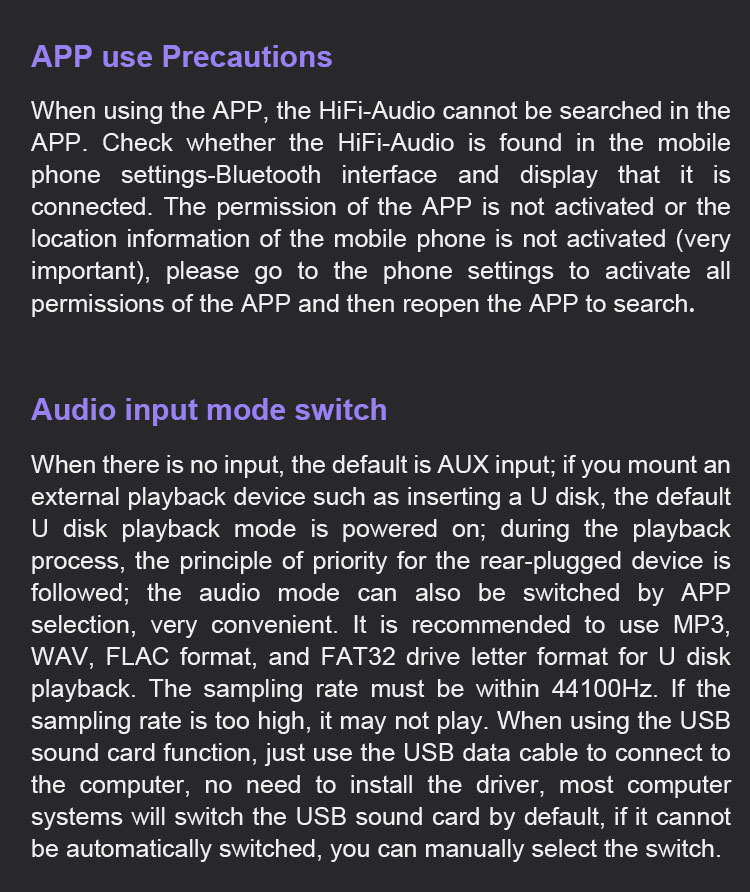

- Audio input: AXU/PC/USB Flash Drive/Bluetooth
Note:

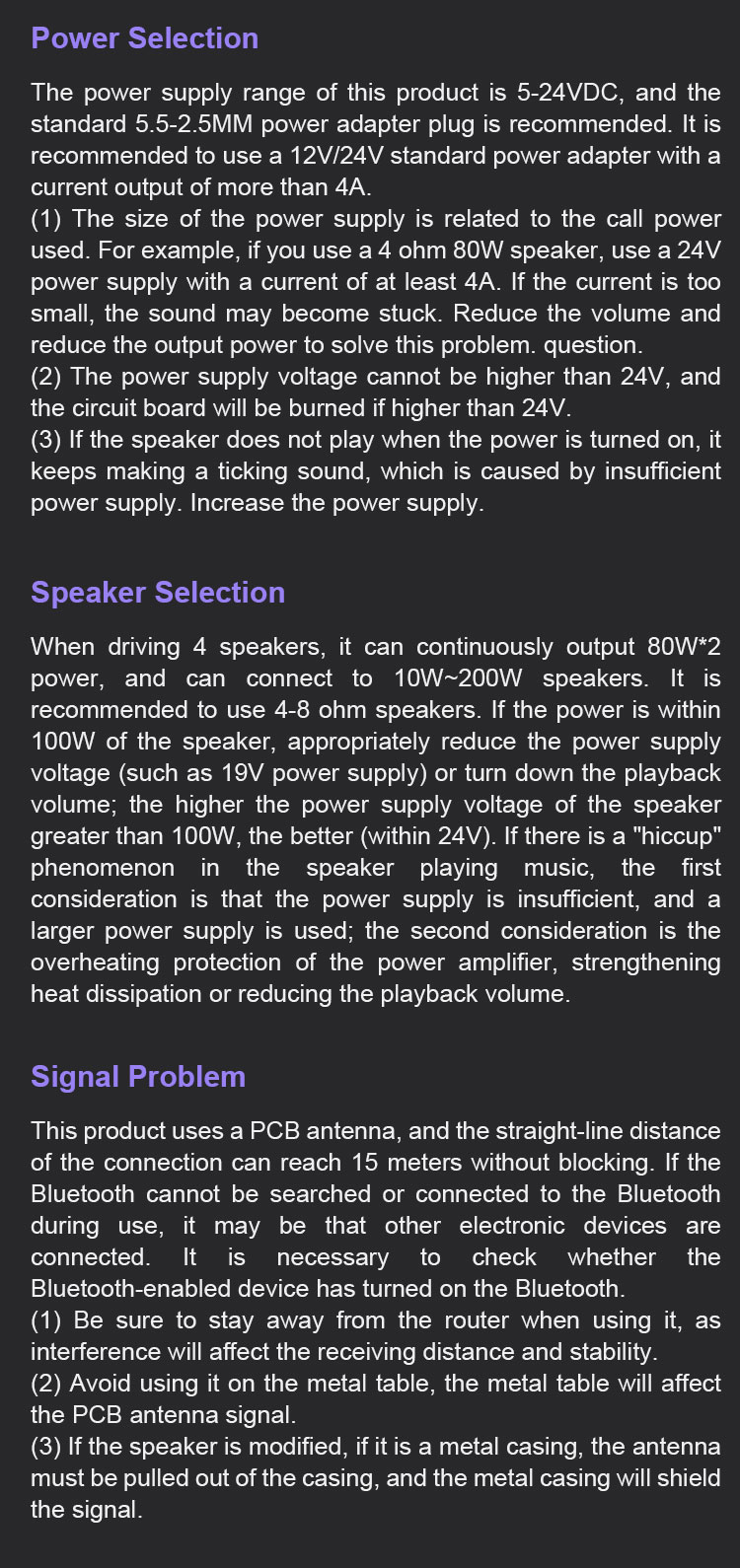

- It is recommended to supply power above 6V.
Package Included:
- 1 x Power Amplifier Board
