BRZHIFI DVA200 Network Streaming Music Player DAC WiFi Hard Disk Digital Music Player for USB Drive

BRZHIFI DVA200 Network Streaming Music Player DAC WiFi Hard Disk Digital Music Player for USB Drive

Features:
Immersive audio
Advantages of DVA200 network streaming music player:
A53 64-bit quad-core processor
2GB DDR4 memory
BRZHIFI's exclusive APP music library management
High-speed Gigabit Ethernet interface
Built-in decoding for MQA
8x unfolded
Supports for Roon, AirPlay, UPnP, DLNA, QQ Music, Netease Cloud and 8PlayPro. Later, more protocols can be added through system upgrades
ES9038Q2M decoding chip
DSD256
OPA2604 op amp
PCM 768KHz 32bit
Original 3rd generation 16-core processor for XMOS

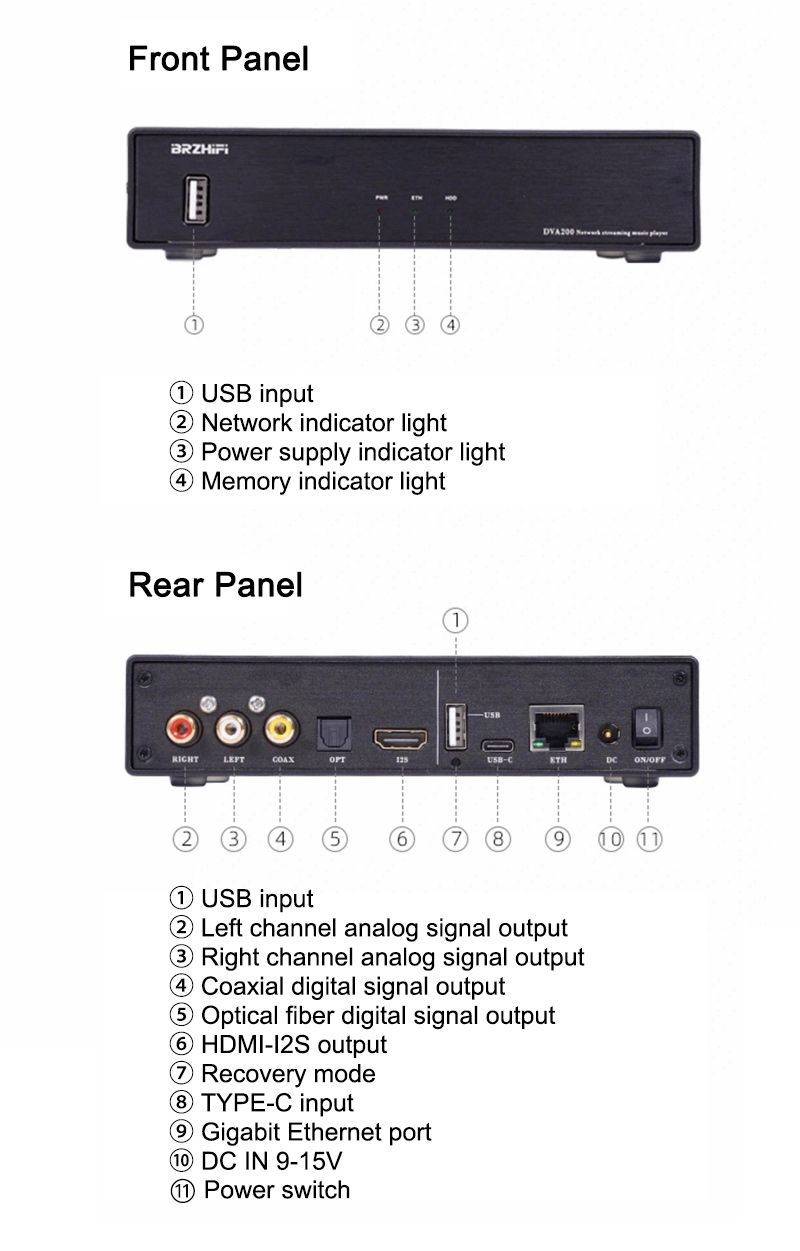

Multi-channel output interfaces: HDMI-I2S, optical, coaxial and RCA
2G memory, Linux kernel, pure audio architecture

Opens a new era of digital players
DVA200 network music player is designed with 4-core high-performance processor and large memory, and developed based on Linux kernel. It is a self-developed digital player system for audio characteristics, focusing on fluency and sound quality. Abundant digital input and output interfaces, HDMI-I2S digital interface output, up to 768KHz 32Bit DSD256. DVA200 has created excellent audio performance thanks to ES9038Q2M professional DAC architecture design, JEFT op amp OPA2604 and professional audio tuning. Highly playable local music management software, a high-performance smartphone control APP and a unique digital player control system will jointly bring music lovers a new functional experience and better audio performance of traditional digital player.

It can support most of the high-sample original demo music on the market. Lossless formats such as FLAC, WAV, APE, etc., are supported. It also supports for more advanced original demo music formats such as DSD256 (.dsf/.dff/.dst), stereo/multichannel and MQA.

Everything is under control
It breaks the traditional digital music player ecology.

With pure audio architecture system developed based on the Linux kernel and the self-developed BRZHIFI exclusive APP, users can manage up to tens of thousands of music files on their mobile phones. And the local music is clear at a glance. Your phone is your music library. Enjoy what you want in the music world, say goodbye to Bluetooth compression interference transmission, and enjoy the lossless high-quality music experience brought by WiFi.

Enjoy lossless sound
Compatible with rich third-party APP streaming music services. It supports for Roon, AirPlay, UPnP, DLNA, QQ Music, Kugou, Netease Cloud, 8PlayPro, BubbleUpnp, etc. Later, more protocols can be added through system upgrades. The system and APP provide continuous optimization and updates.

Multiple sets of low-ripple regulator modules
Multiple sets of multi-stage LDO chips ensure that the whole circuit is provided with purer power, making the music background quieter and the details clearer. And for the op amp power supply, positive and negative voltage power supply is designed to make the op amp working point in the best state.

Digital interface
The digital interface is original 3rd generation U316 for XMOS. It has higher processing speeds and USB bandwidth, and asynchronous transmission ensures HD audio data integrity. USB supports for DSD256 Native, PCM 768KHz 32Bit format, and MQA 8x.

Accurate audio decoding
It uses a low-jitter and high-precision dual-clock design, and two high-precision crystal oscillators (45.1584MHz and 49.152MHZ) correspond to 44.1KHz and 48KHz frequency doubling sampling for management, effectively reducing jitter and achieving more accurate audio decoding.

OPA2604 high-performance op amp chip
The analog output is an OPA2604 op amp designed for audio. OPA2604 is a dual-channel FET high-performance audio op amp. Its timbre is mellow, rounded, neutral and warm. It helps tube amplifiers to have a better sound.

ES9038Q2M high-performance decoding chip
The high-performance 32-bit stereo decoder chip has excellent signal-to-noise ratio and high resolution. It is rich in detail, dense in sound, and friendly to ears.

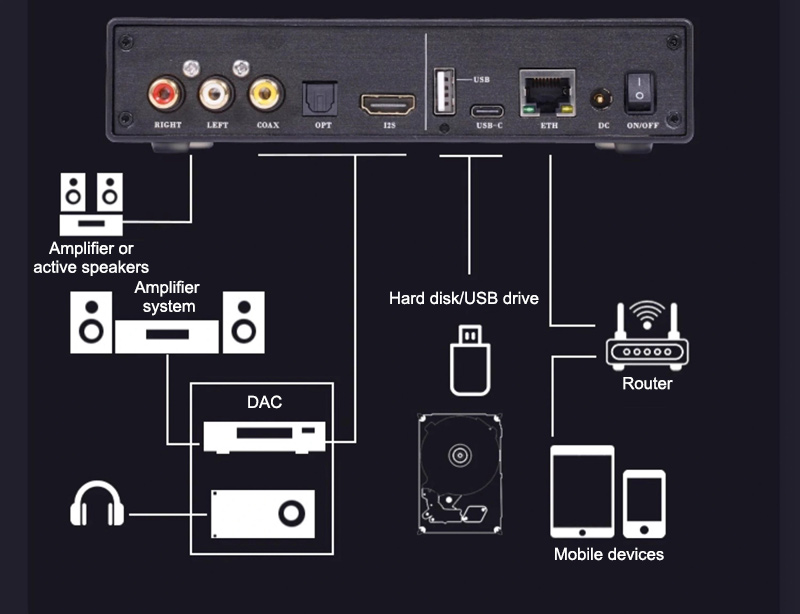

Network music playing system
DVA200 allows you to create a network music playing system that suits your environment. It has a wide range of input and output ports. As a pure digital turntable, its output has HDMI, USB, optical and coaxial output ports, which can be used with various high-end DAC. Used as a pure decoder, it supports hard disk and USB drive input. The native analog pre-amp output provides high-fidelity RCA and output, which can be directly paired with active speakers or pure circuit amplification systems, giving you flexible equipment options and a variety of high-quality music listening methods.

Supports hard disk
Rich interfaces support the expansion of external hard disks. A single port supports up to 8TB hard disks.

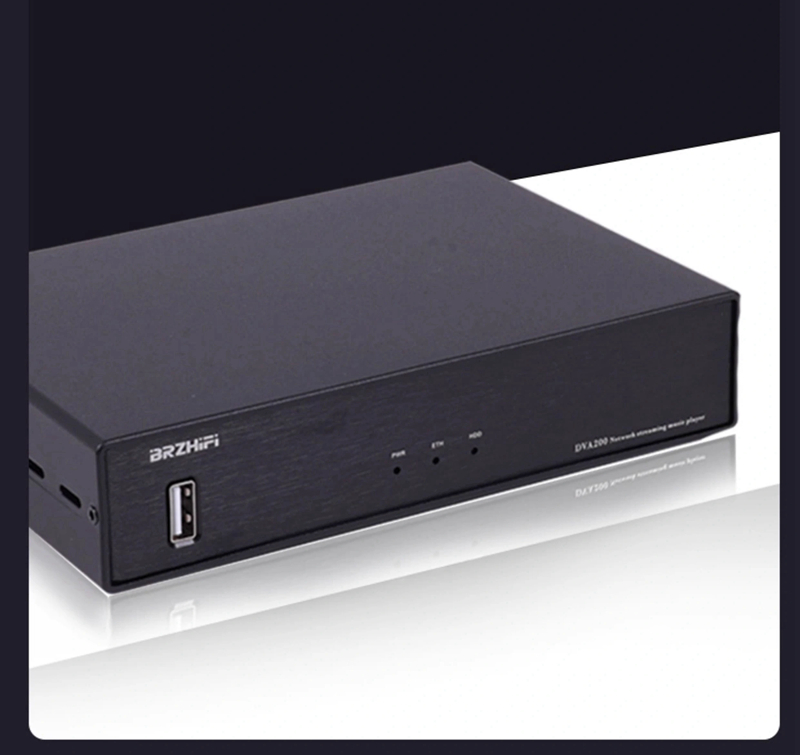

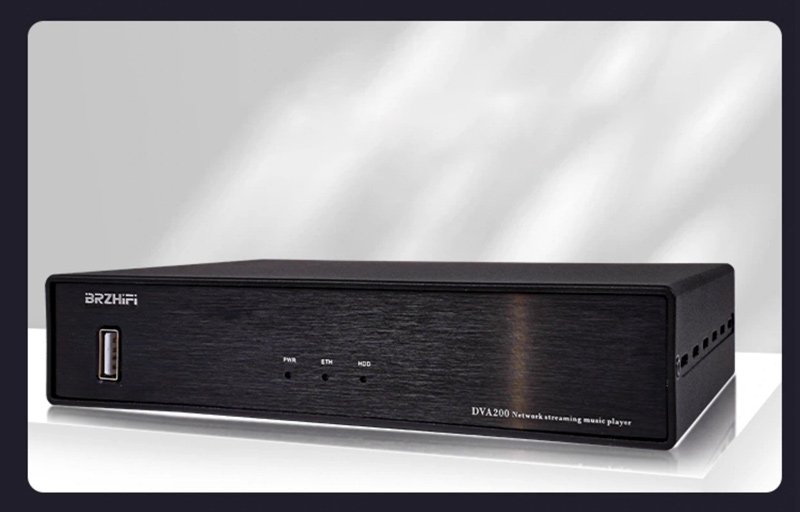

Aluminium alloy housing
The whole body is made of brushed aluminum, showing a high-end texture.

Specifications:
- Body material: all aluminum alloy
- Audio decoding: ES9038Q2M
- Digital interface: U316 for XMOS
- Memory configuration: 2GB DDR4
- CPU core: 64-bit 4-core A53 maximum frequency: 1.6GHz
- Operating system: Audio-only architecture is developed based on the Linux kernel
- Control system: BRZHIFI exclusive APP. Manage up to tens of thousands of music files on your phone
- Network interface: RJ45 high-speed Gigabit Ethernet (1000Mbps)
- Storage ports: 1 x TYPE-C (for system upgrade) and 2 x USB-A. They support 8T hard drives. If you have a hard drive with large power consumption, please provide a dedicated power supply to the hard drive

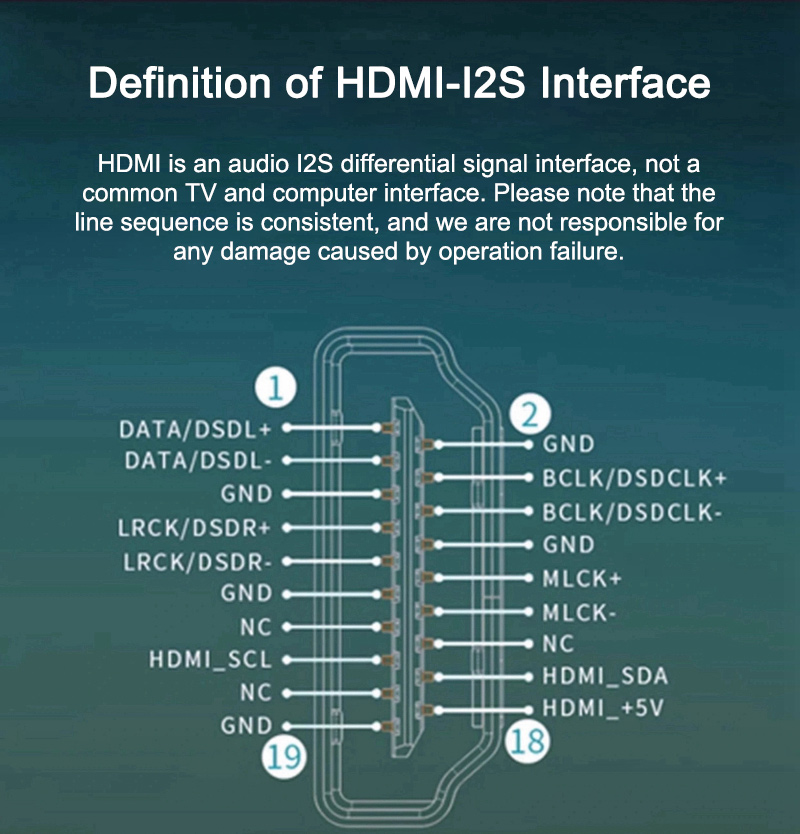

- Digital outputs: Coaxial, Optical, I2S (HDMI)
- Analog output: Built-in ES9038Q2M decoder chip and RCA stereo output
- Expansion: It supports built-in MQA 8x. When it is playing files for MQA and it is connected to an external decoder, you need to connect it to the I2S output and the sampling rate is up to 384Khz after unfolding, which exceeds the optical fiber and coaxial standard protocols
- DAC decoding: supports for DSD256, PCM 768KHz 32Bit and MQA formats
- Music file formats: DSD, DSF, DFF, SACD, MP3, APE, WAV, FLAC, etc.
- Optical and coaxial: 192KHz 24Bit
- HDMI output: DSD256 Native, PCM768K 32Bit and for MQA
- Control mode: APP for Android
- Network streaming: For Roon, AirPlay, UPnP, DLNA, QQ Music, Kugou, Netease Cloud, 8PlayPro and BubbleUpnp. Later, more protocols can be added through system upgrades
- Power supply: DC12V 2A or above; DC interface 5.5*2.5mm
- Weight: 0.52KG / 1.1LB

Package Included:
- 1 x Music Player

Packaging Details:
- G.W.: 0.8kg
