BRZHIFI NXC08 Stereo Audio DAC Headphone Amplifier Bluetooth DAC DSD512 w/ 12V 2A Power Supply

BRZHIFI NXC08 Stereo Audio DAC Headphone Amplifier Bluetooth DAC DSD512 w/ 12V 2A Power Supply

Description:
The first multifunctional digital audio decoder using digital shaping technology for ES9038PRO. It uses soft control for ARM, DSD hardware solution. CSR8675 Bluetooth 5.0 supports for APT-X, APTX-HD, LDAC. USB receiver for Amanero solution. TPA6120A2 professional headphone amplifier.

It boasts small size, exquisite workmanship, excellent performance. And it is easy to use.

Advantages:
- FPGA digital shaping chip
- CSR8675 supports for aptX HD 48khz. Support for LDAC 96khz HD audio transmission
- For ARM UK digital soft control solution
- Full function remote control
- For Amanero USB digital interface daughter card
- Support DSD64-128-256-512
- PCM supports 32bit 384K
- High-definition LED screen
- ES9038PRO decoder chip
- AK4113 receiving chip
- TPA6120A2 professional headphone amplifier
- In-line dual op amp, ±14.5V

Features:
- For Amanero USB digital interface. Supports DSD hard decoding for all USB devices. For IOS, Android, computers and the like
- ES9038PRO audio decoding. 8 cores are connected in parallel, so it has higher analytical power and detailed appeal
- More timbre op amp gameplay. It adopts independent pluggable op amp to support users to replace op amp and DIY their own tone. The operational amplifier part adopts ±14.5V dual voltage power supply, born for HIFI
- The overall internal structure of NXC08 is elegant and beautiful, and the materials used are exquisite
- The hard-core Bluetooth chip guarantees lossless transmission. The CSR8675 Bluetooth chip supports the ultimate solution for APTX-HD 24BIT/48K. Support for LDAC 24BIT/96K lossless solution, such a high transmission bit rate, so that we experience lossless sound quality in Bluetooth transmission equipment. CD-level Bluetooth sound quality, 94KHz/24bit high-quality listening experience. Bluetooth stereo sound quality, lossless 24BIT transmission. Can still guarantee music playing when sound quality for APTX HD is not available
- Bluetooth 5.0 redefines high-definition wireless audio. Under the encoding for LDAC, 24bit 96kHz high-definition transmission can be achieved, and the Bluetooth DAC can also have HIFI sound quality. (Attention: The built-in decoding function of CSR8675 has been turned off, and the 9038 chip is completely responsible for decoding output.) When the decoder is in non-Bluetooth audio source mode, it will automatically cut off the Bluetooth power supply and will be awakened again when needed
- For Amanero USB daughter card digital interface. Its deemed effects are better than those for XMOS. PCM: 44.1kz, 48kz, 88.2kz, 96kz, 176.4kz, 192kz, 352.8kz, 384kz. DSD: dsd64, dsd128, dsd256, dsd512
- ES9038PRO DAC HIFI decoding. Can provide extraordinary music quality and extremely low total harmonic distortion (THD) level, making the sound more pleasing
- For FPGA-XILINX digital shaping chip. Digital shaping technology for XILINX improves the jitter of the clock signal, the details are more excellent, and it can also eliminate the popping noise during switching. Eliminate electromagnetic interference between channels and output pure audio signals
- AK4113VF independent digital receiver chip. Coaxial and optical input, the sound is more natural. Professional fever independent signal receiving and processing chip, which is 65% higher than the previous generation, the sound is smaller, the sound is more delicate and mellow, and the level of performance is obvious
- For ARM-STM32F. Adopting British digital architecture processing system to improve the overall collaboration effect
- Japanese in-line dual op amp. Using 4pcs 5532DD operational amplifiers, with high fidelity and low noise. Its sound is full, flexible, full of flavor, and extensible low frequency
- There is a linear boost conversion design head. The 12V DC single voltage input is first boosted and then converted to ±14.5V dual voltage power supply mode, so that the output effect of the op amp reaches the level

Specifications:
- Brand: BRZHIFI
- Model: NXC08

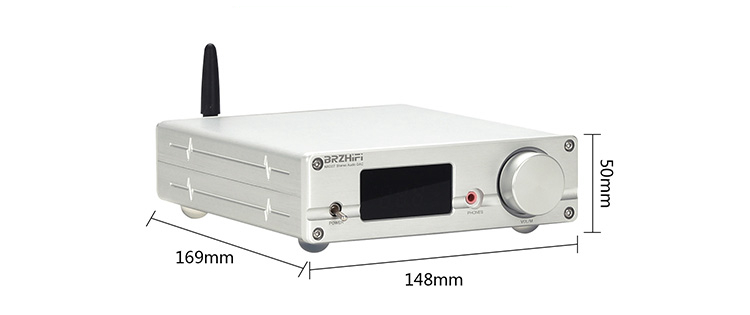

- Product size: 148 x 50 x 169mm/5.8 x 2 x 6.7"
- Product weight: about 780g

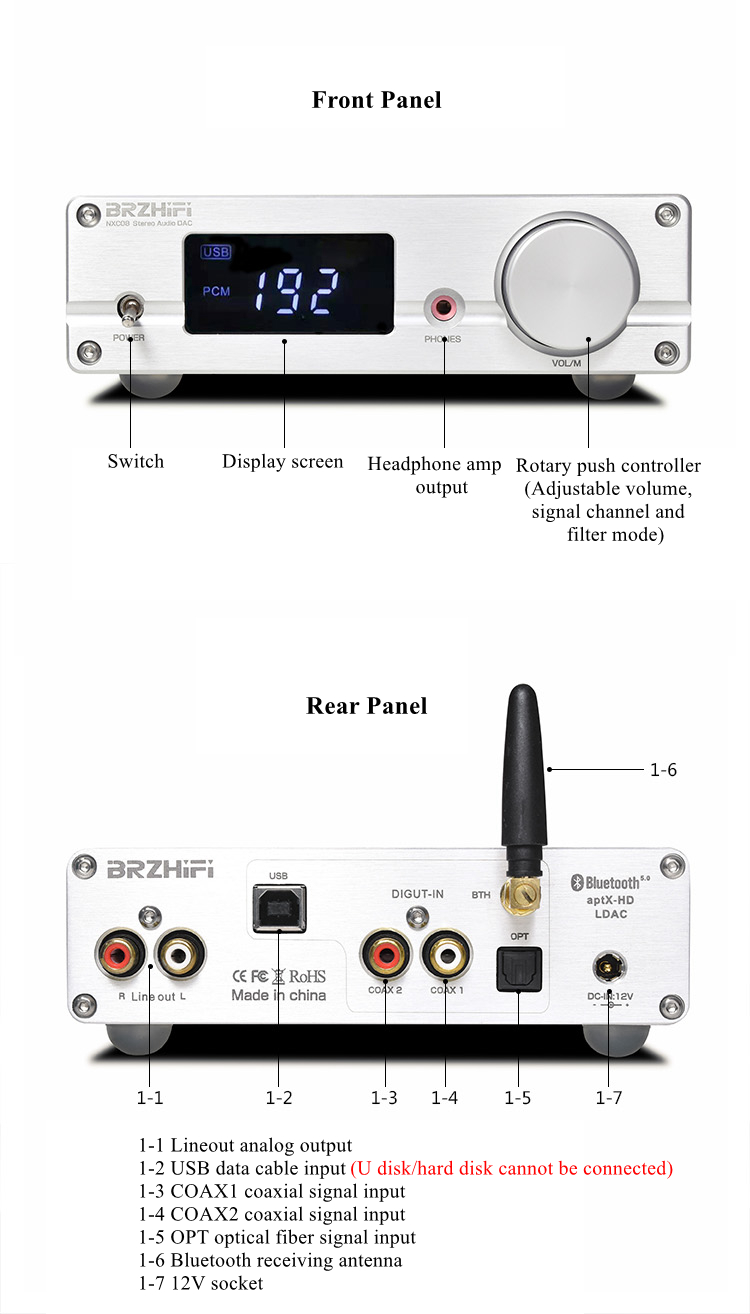

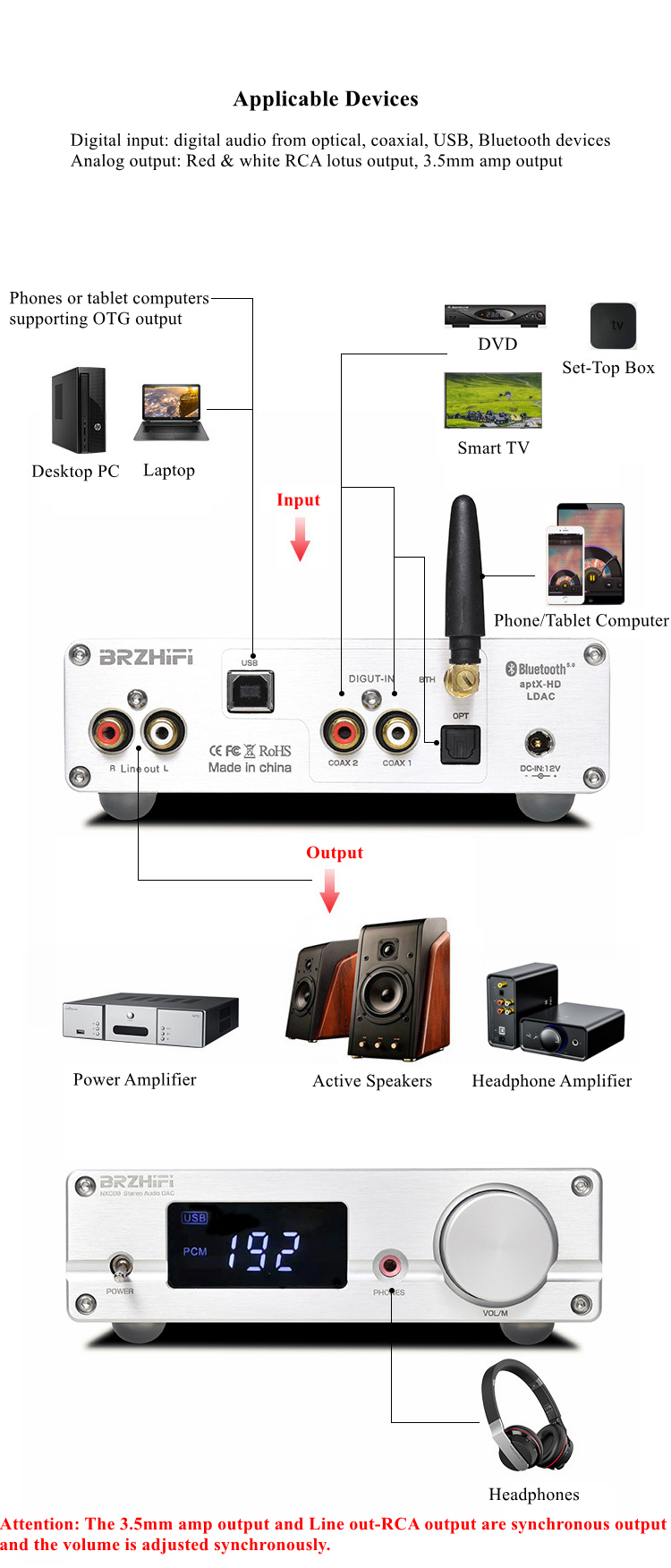

- Digital input: USB/mobile phone OTG, BLUE (Bluetooth), COAX (Coaxial), OPT (Optic fiber)
- Output interface: 2.0 stereo RCA interface/3.5mm headphone output
- USB input: PCM: 44.1khz-384khz/16-32Bit; DSD64-DSD512/DOP/Native
- Coaxial/optical fiber: PCM: 44.1khz-192khz/16-24Bit
- Bluetooth input: Bluetooth 5.0, support for AAC/SBC/APTX/APTX-LL/APTX-HD/LDAC
- Signal to noise ratio: >128dB at 1kHz
- Frequency response: 16-20kHz/±0.35dB
- Amplifier power: 700mW*2 at 32Ω; 156mW*2 at 300Ω

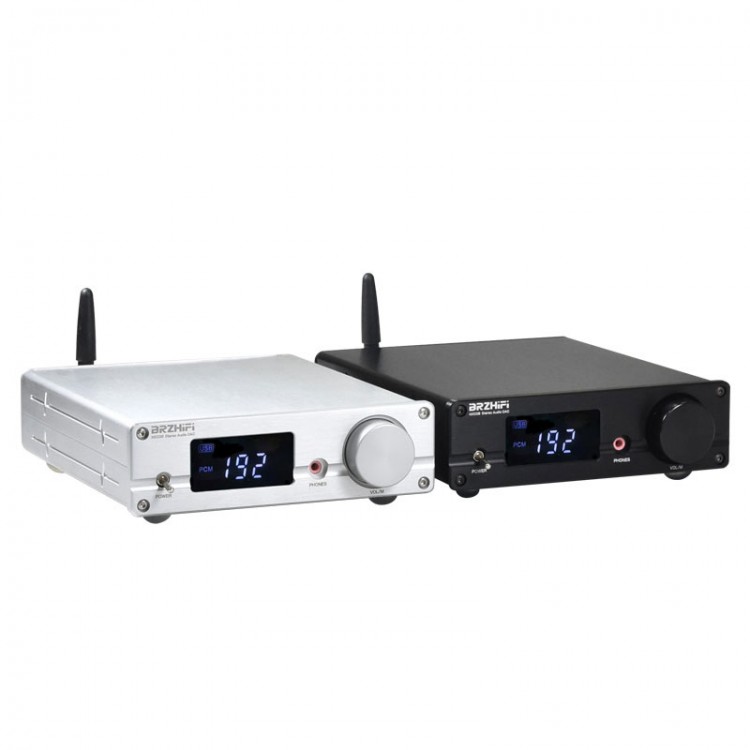

- Optional color: silver, black

Package Included:
- 1 x Headphone Amp DAC With Antenna
- 1 x Remote Control
- 1 x Set of 12V 2A Power Supply

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
