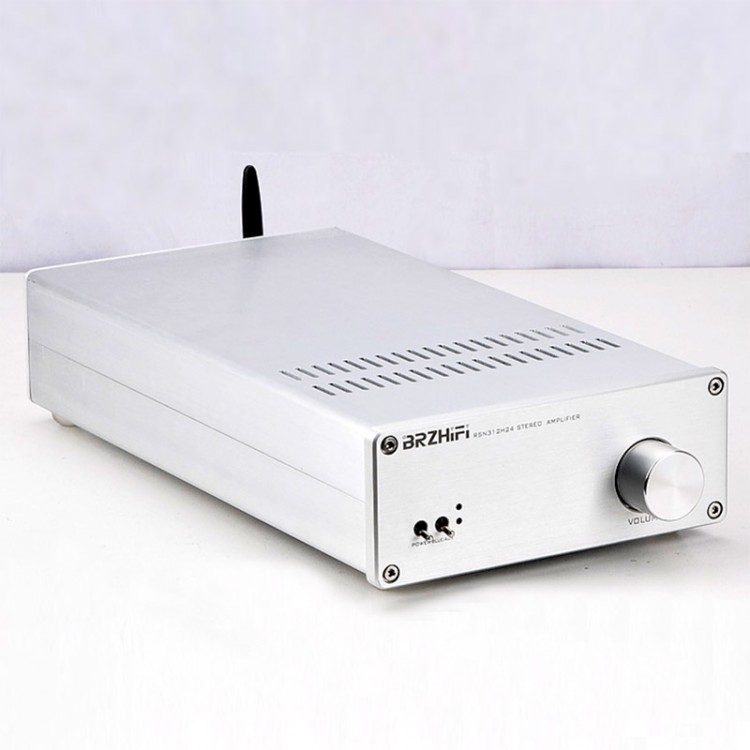

BRZHIFI RSN312H24 Bluetooth 5.0 HiFi Power Amplifier Class H Power Amp 70Wx2 20Hz-50KHz Frequency
Description:

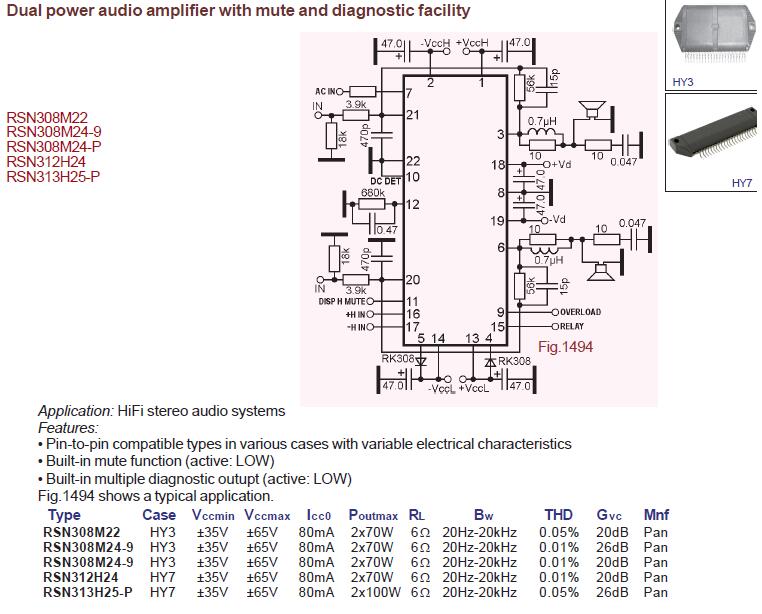

-The product adopts RSN312H24 thick film power amplifier chip, with delicate and compact size.
The output power is 70W+70W@6Ω, and distortion degree is THD 0.01%. H-type chips have two sets of voltage power supply, high voltage and low voltage, and smooth switch automatically according to different output power. Class H power amplifier circuit is a relatively late product, and its design index puts forward high requirements for energy saving, signal-to-noise ratio, sound field and other indexes. This series of thick film chip features not only better design and production parameters, but also better listening sense.
-This machine is designed for listening to music on home computers, and it is also convenient to use with Bluetooth-enabled portable devices. The shell is made of CNC all aluminum alloy, and the appearance of the whole machine is exquisite and compact.
Specification:
Working mode: Class H
Static current: 60mA
Output power: 70W + 70W / 6 Ω, distortion 0.01%
Frequency response: 20Hz to 50KHz
Dynamic range: > 100 dB
Overall dimension: 172 * 67 * 321mm
Total weight: 5.7kg
Package List:
1 x Power Amplifier
