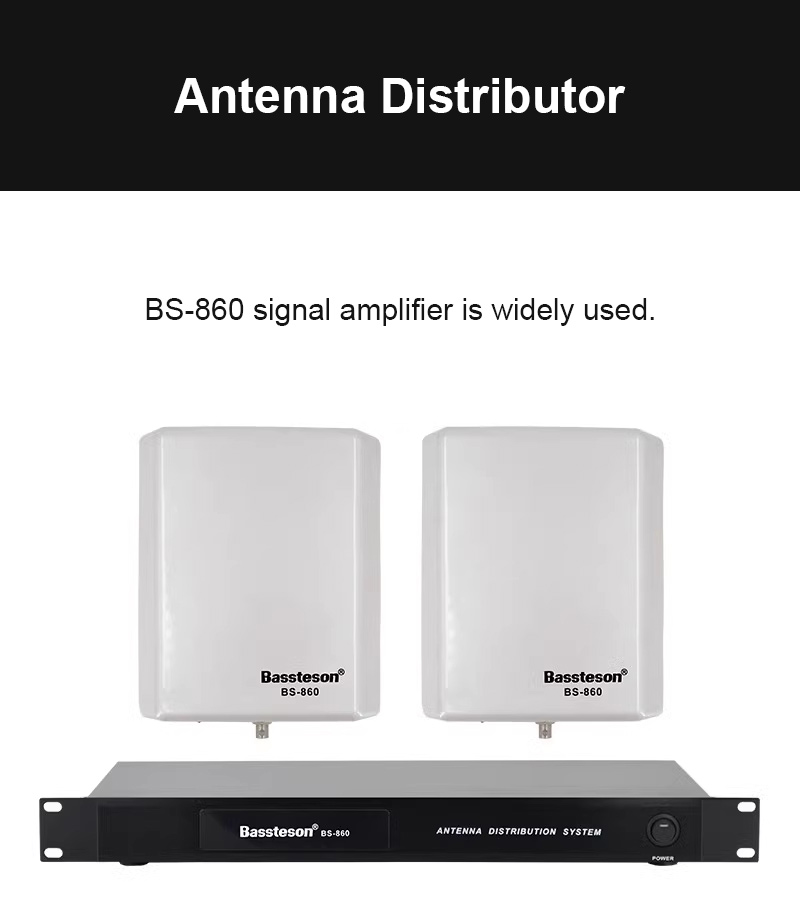

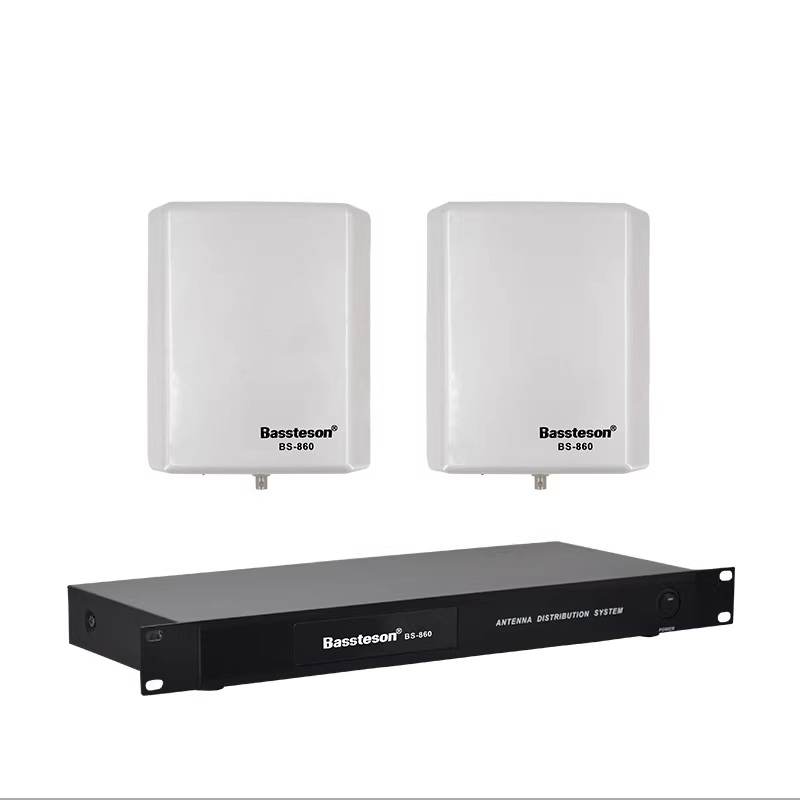

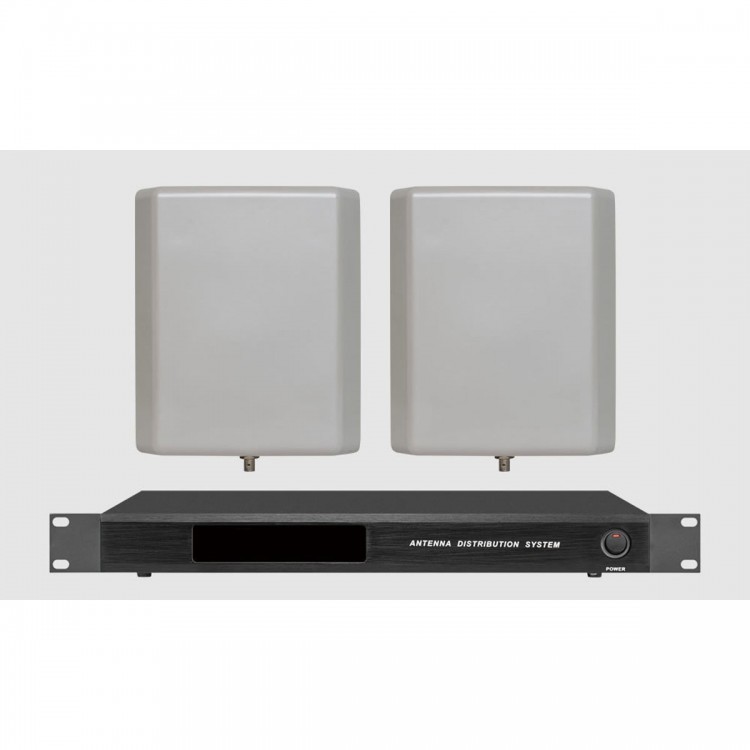

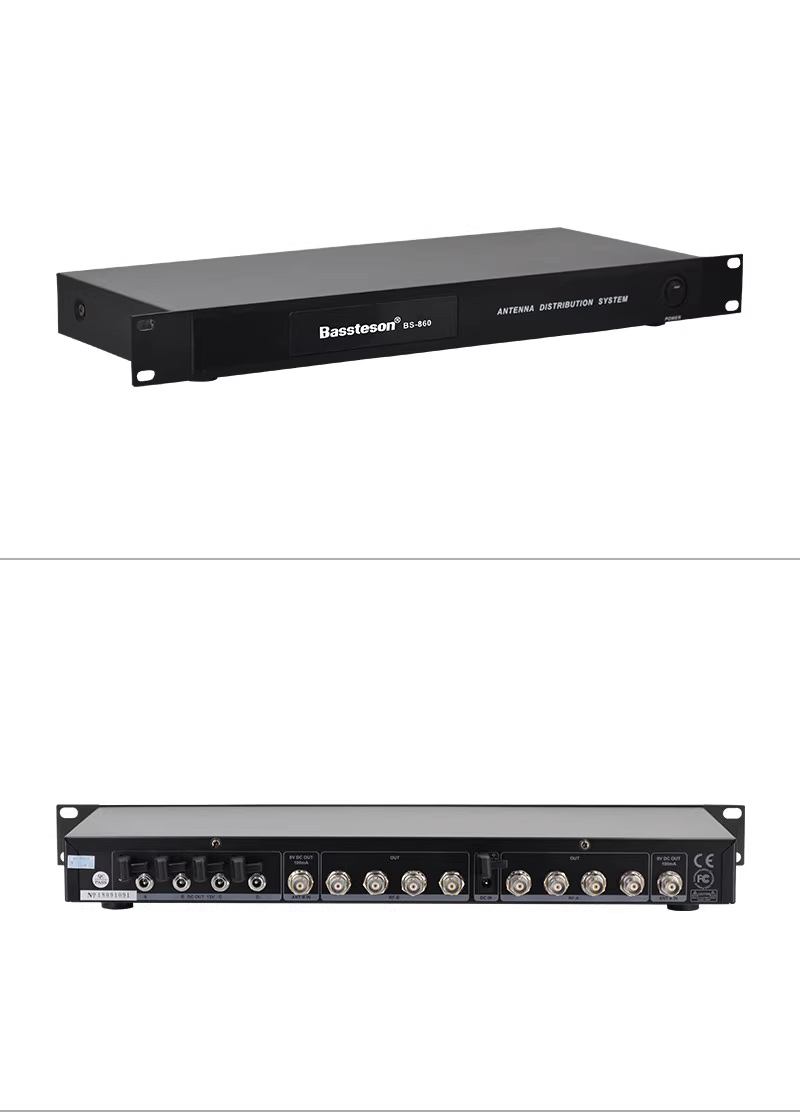

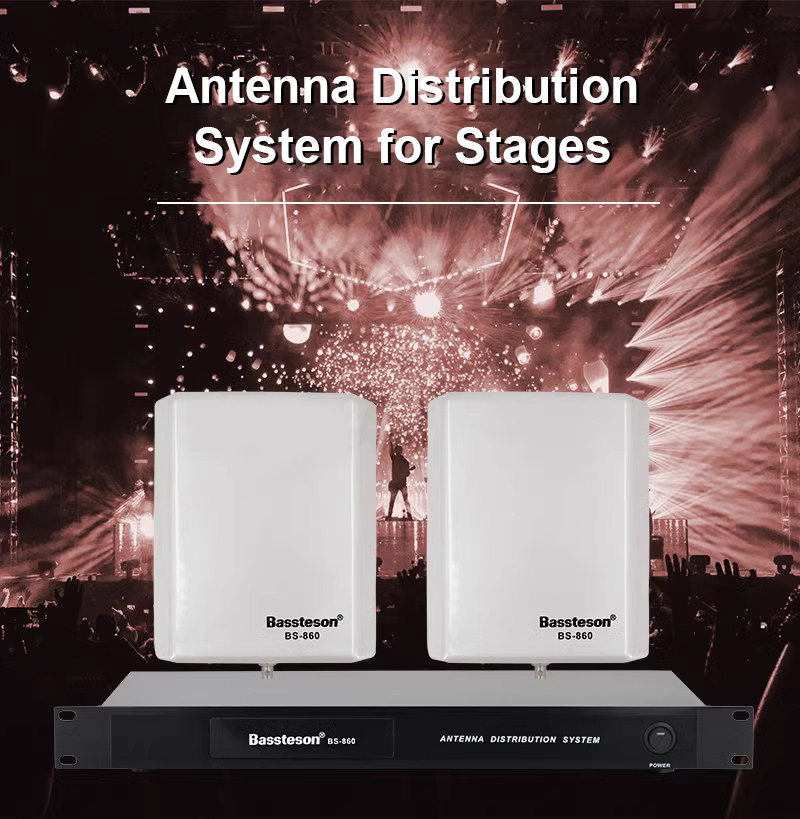

BS-860 600m Antenna Distribution System Amplifier w/ Active Directional Antennas for 4 Wireless Mics

BS-860 600m Antenna Distribution System Amplifier w/ Active Directional Antennas for 4 Wireless Mics

Description:

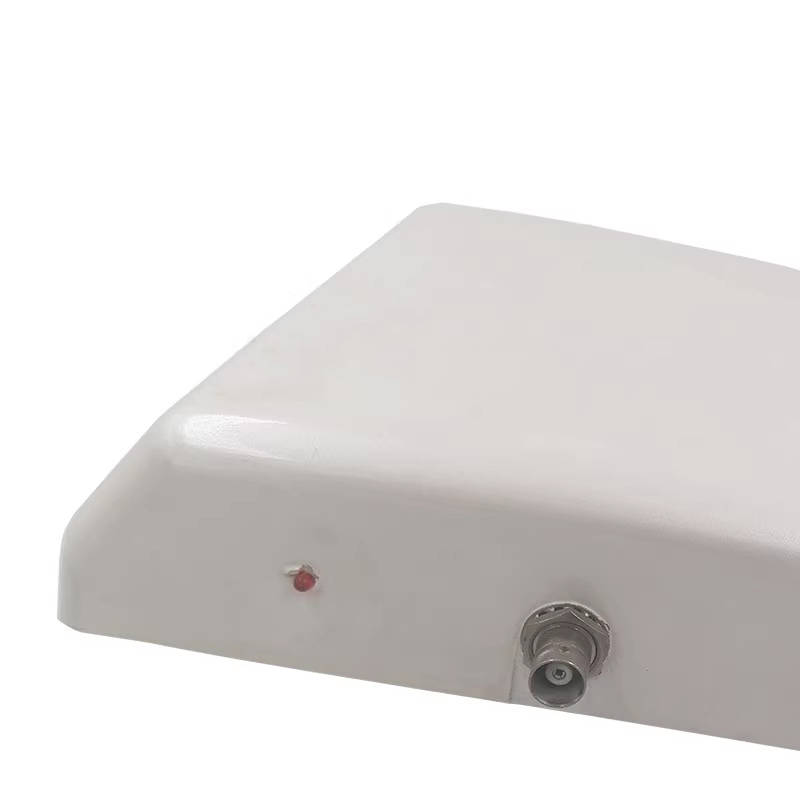

The active directional antennas provide two-in-one style high gain receptivity for the wireless system within UHF 500MHz-1GHz and the receiving band will cover the whole UHF channel. The directional antenna design also provides ideal long range and steady reception for the UHF wireless system.

Features:
- Wireless antenna distribution amplifier: It covers the entire stage and ensures uninterrupted signal transmission.

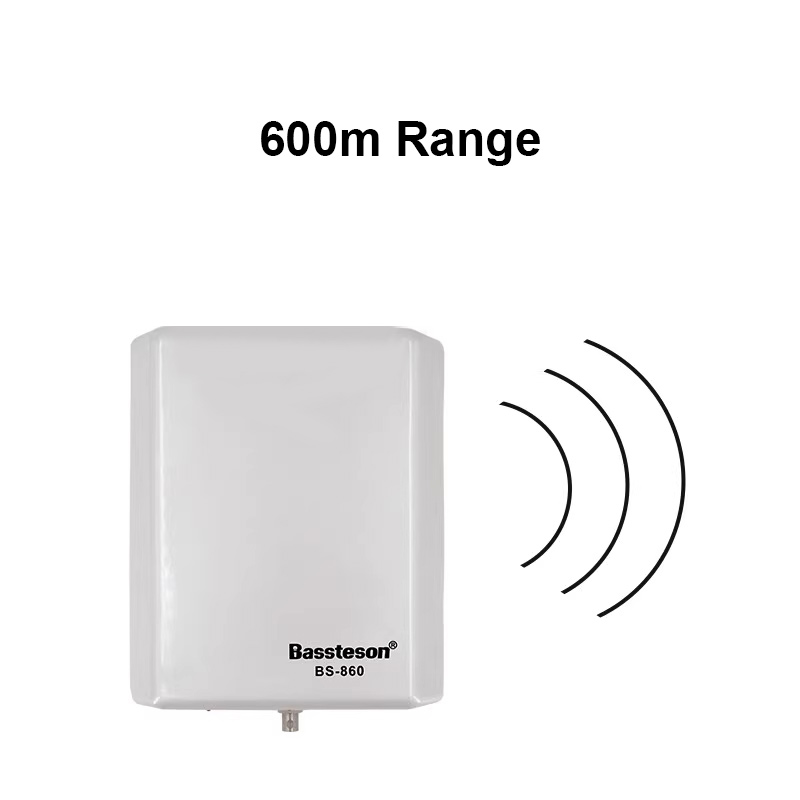

- Long range: It gives full play to the signal performance. Up to 600 meters away.

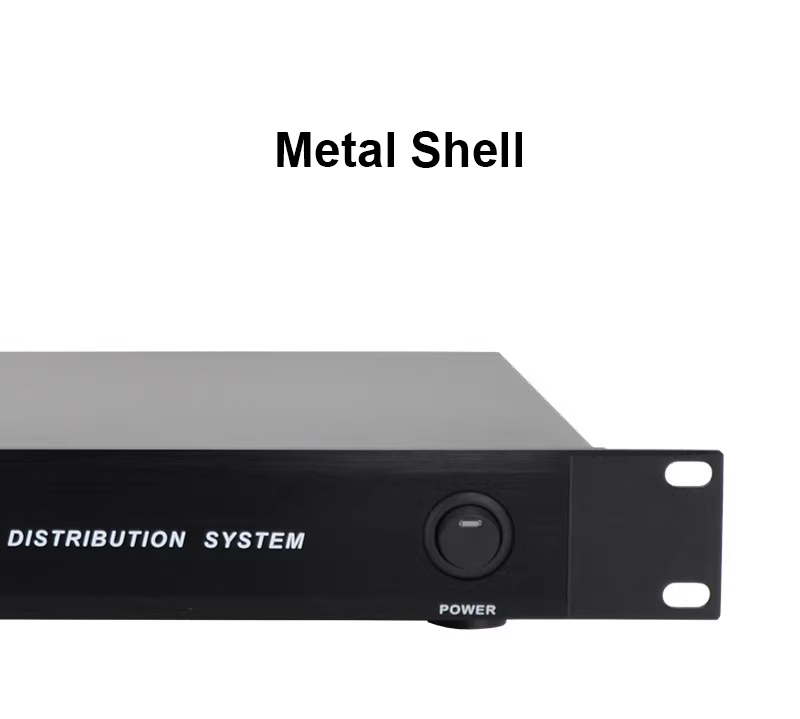

- All-metal: Made of metal, its shell is extremely hard.

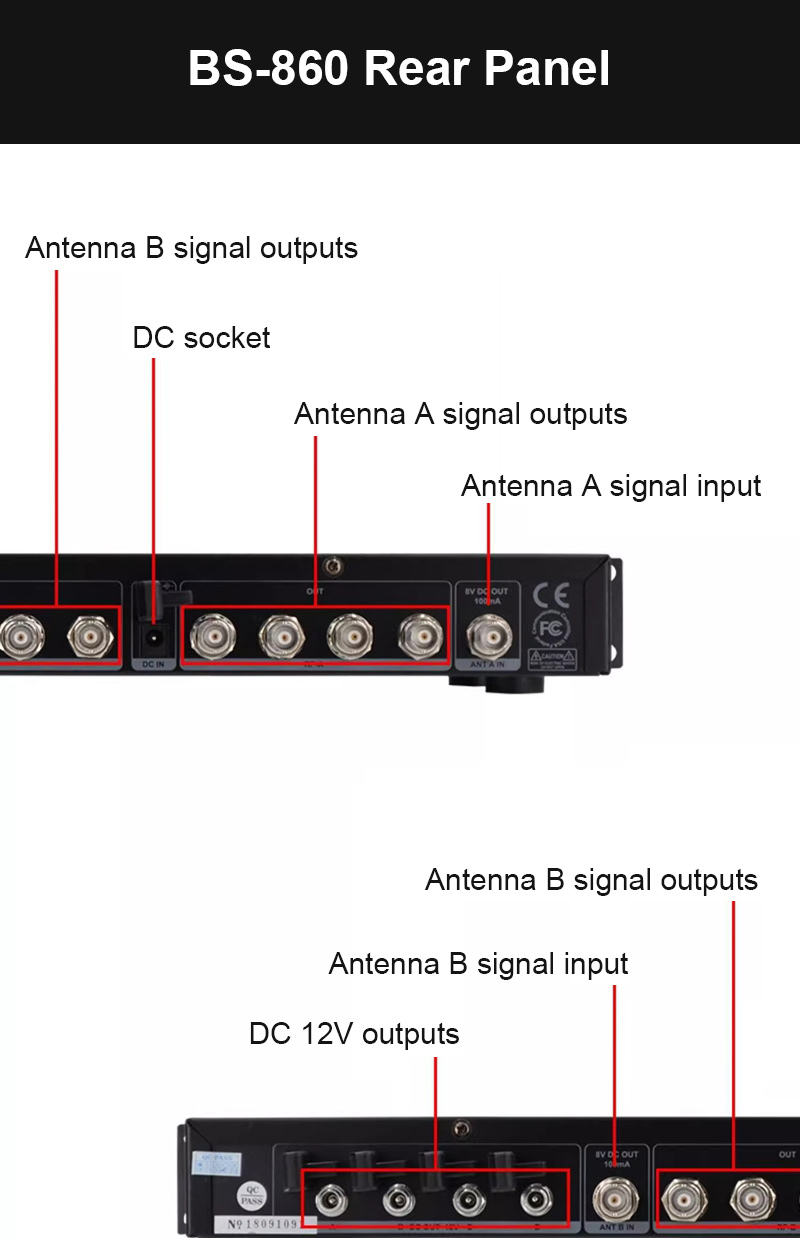

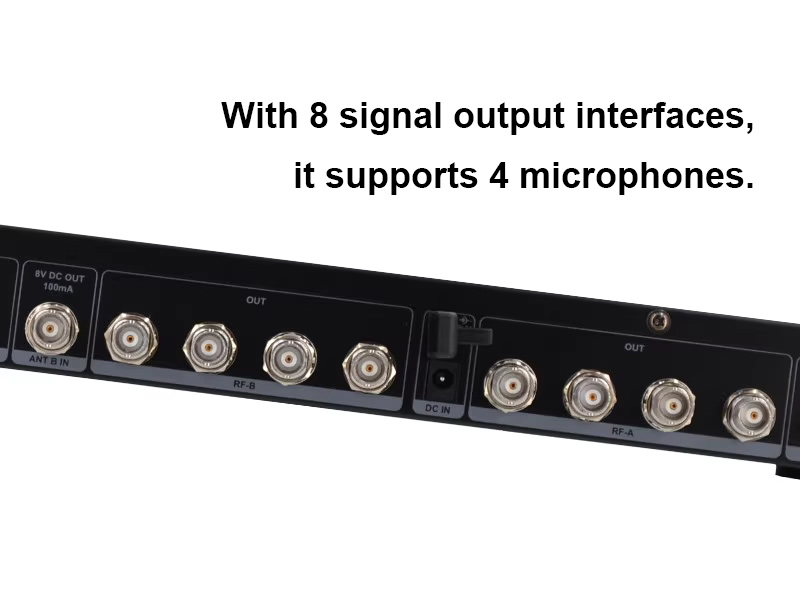

- For 4 microphones: With 8 signal output interfaces, it supports 4 microphones.
- Strong compatibility: 500MHz~1GHz can be used.
- Professional wireless equipment is widely used. It adopts professional circuit design to eliminate reception dead spots. It is suitable for stage performances, campus evenings, sports commentary, etc.

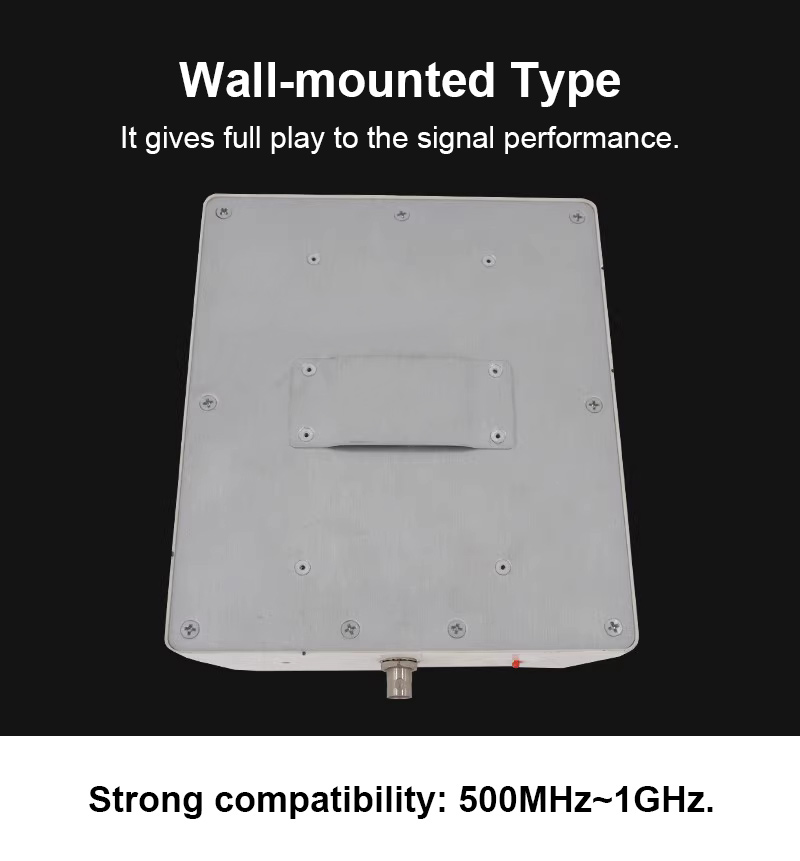

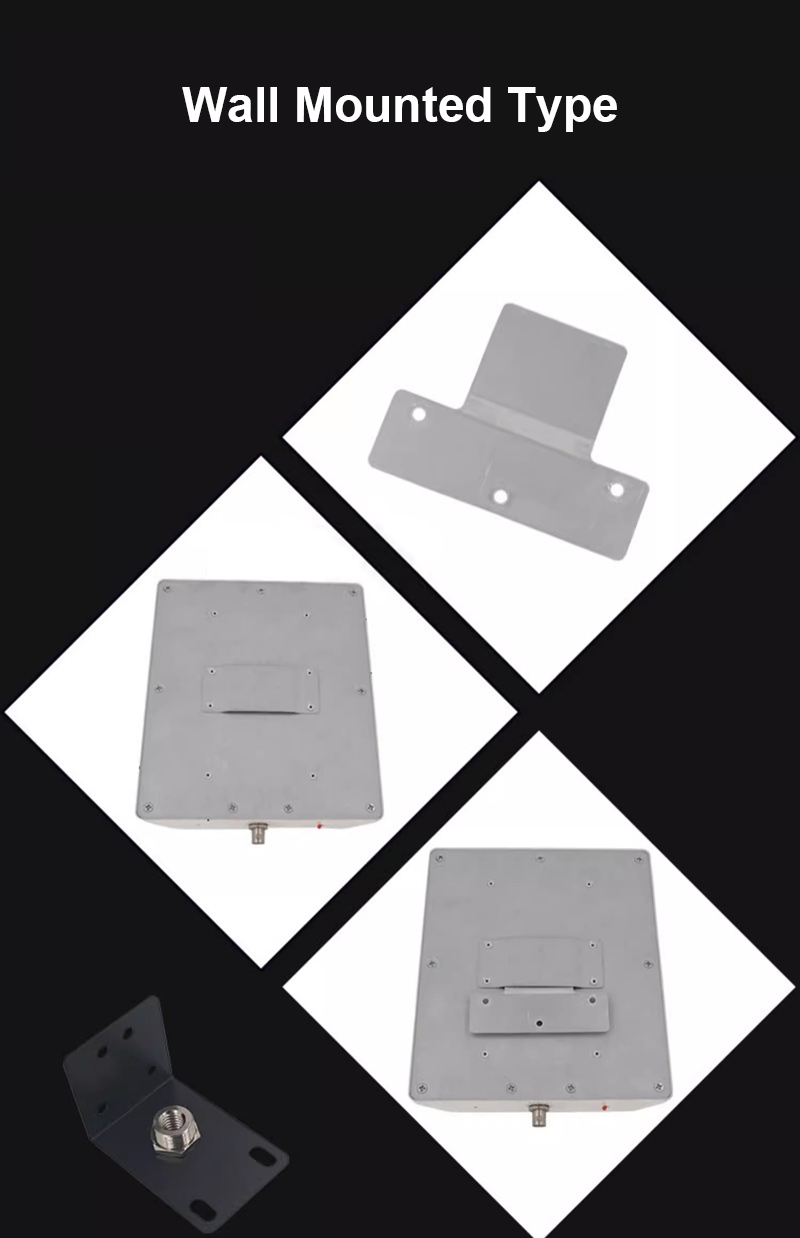

- Wall mounted type: There are three holes on the mounting brackets. With two bracket adapters for mounting.

Performance Parameters:
- Antenna type: wall-mounted antenna
- Supported receivers: 4 sets
- Operating frequency band: 500MHz-1HGz
- Gain: 6dB typical
- Impedance: 50Ω typical
- Directivity: Circular 180° typical
- Polarity of directivity: Vertical (vertically mounted)

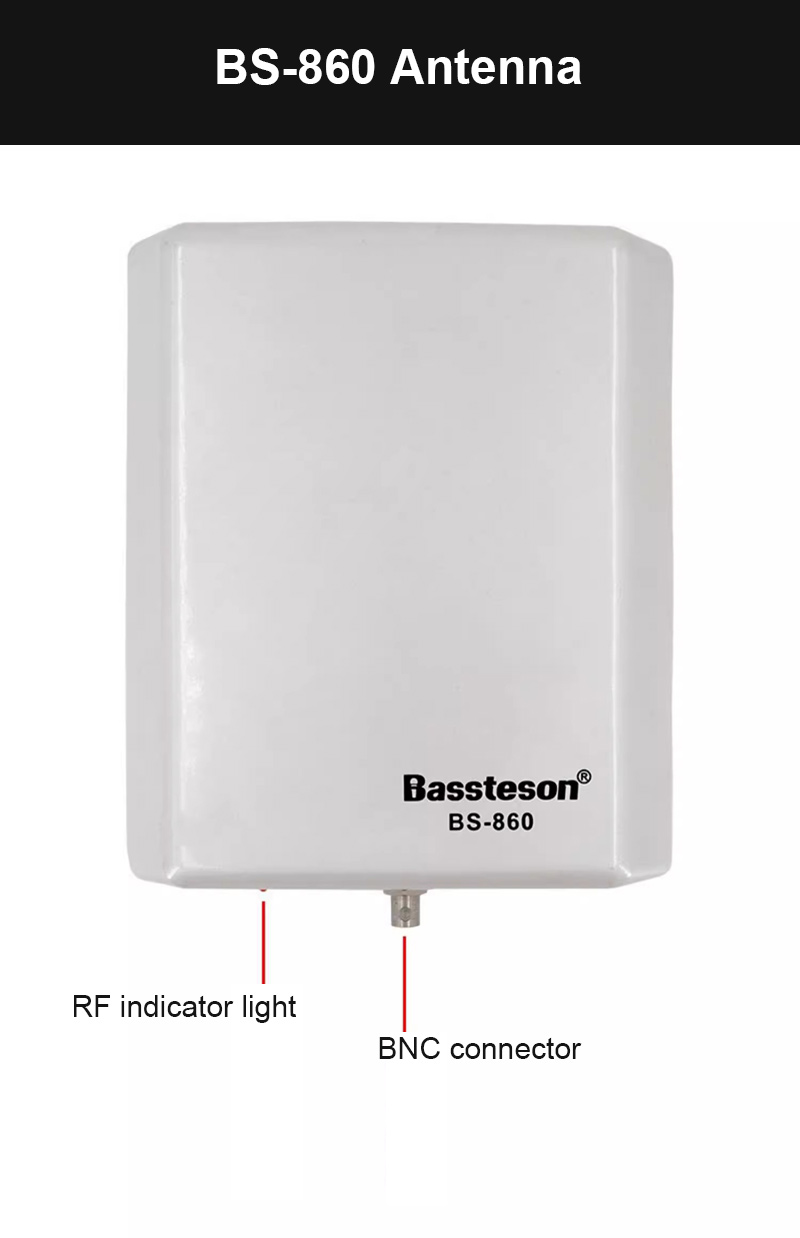

- Connection terminal: Fixed right-angle BNC female socket
- Power supply: DC 12V/300mA

Package Included:
- 2 x Antennas
- 1 x Main unit
- 1 x Power adapter
- 4 x DC power cables
- 1 x Aluminum case
- 2 x 2.5m connection cables
- 8 x 0.5m connection cables
- 2 x Bracket connectors
- 8 x Adapter connectors
- 2 x Brackets for wall mount
- 2 x Bracket adapters

Packaging Details:
- Weight: 7kg
