Bside-ACM12 Digital AC Current Measuring AC DC Voltage Resistance Clamp Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.23
  • Price in reward points: 192 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.85 $18.46 $17.88 $17.11 Contact US
Quantity:

Bside-ACM12 Digital AC Current Measuring AC DC Voltage Resistance Clamp Meter

Feature:

- Conform to the IEC1010-1 standard CAT II 600V
- SMT application
- Display: 1999 counts
- Back light
- Data hold
- Battery low  indication

Specifications:
- DCV: 600V±1%±3
- ACV:  600V±1.5%±5
- AC current: 2A/20A/200A/600A,±2.5%
- Resistance: 2kΩ/2MΩ,±1%±4
- Diode test
- Continuity test(Build-in buzzer when resisitance is less than 60Ω)
- Power: AAA (1.5V) x 3

Instruction: click here

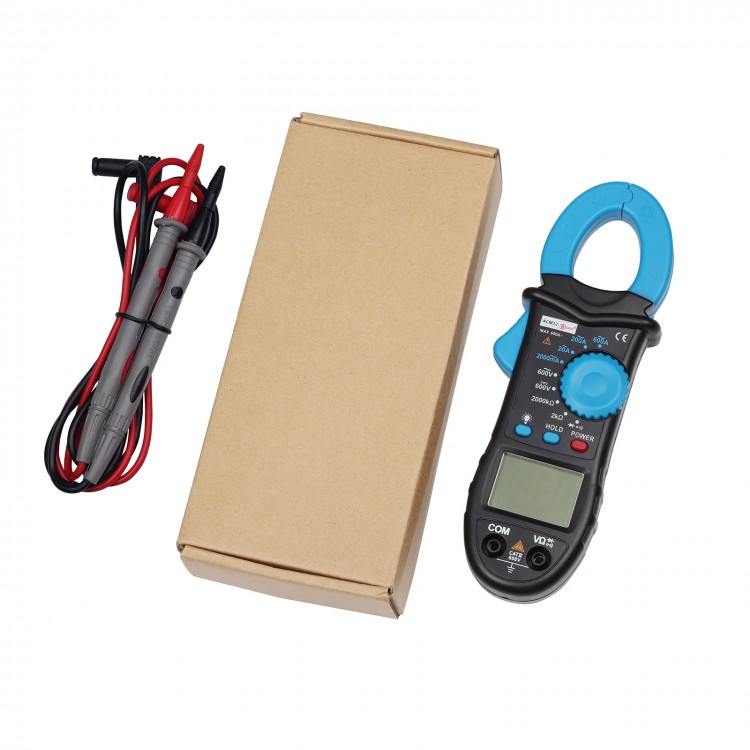

Package Include:
- 1 x Clamp Meter
- 1 x Set of Test Leads
