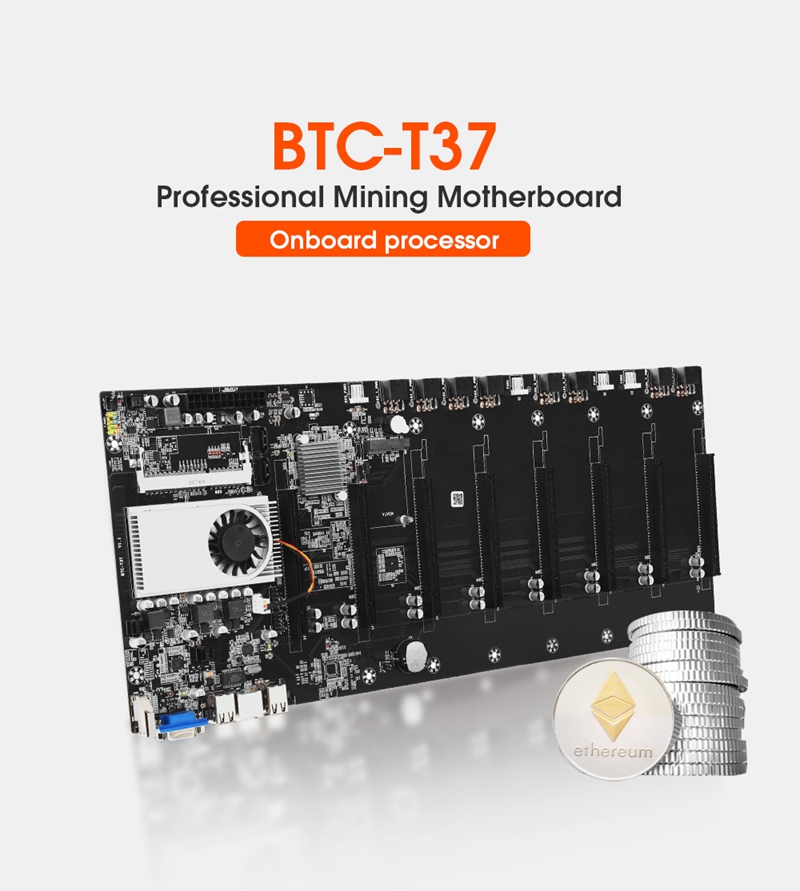

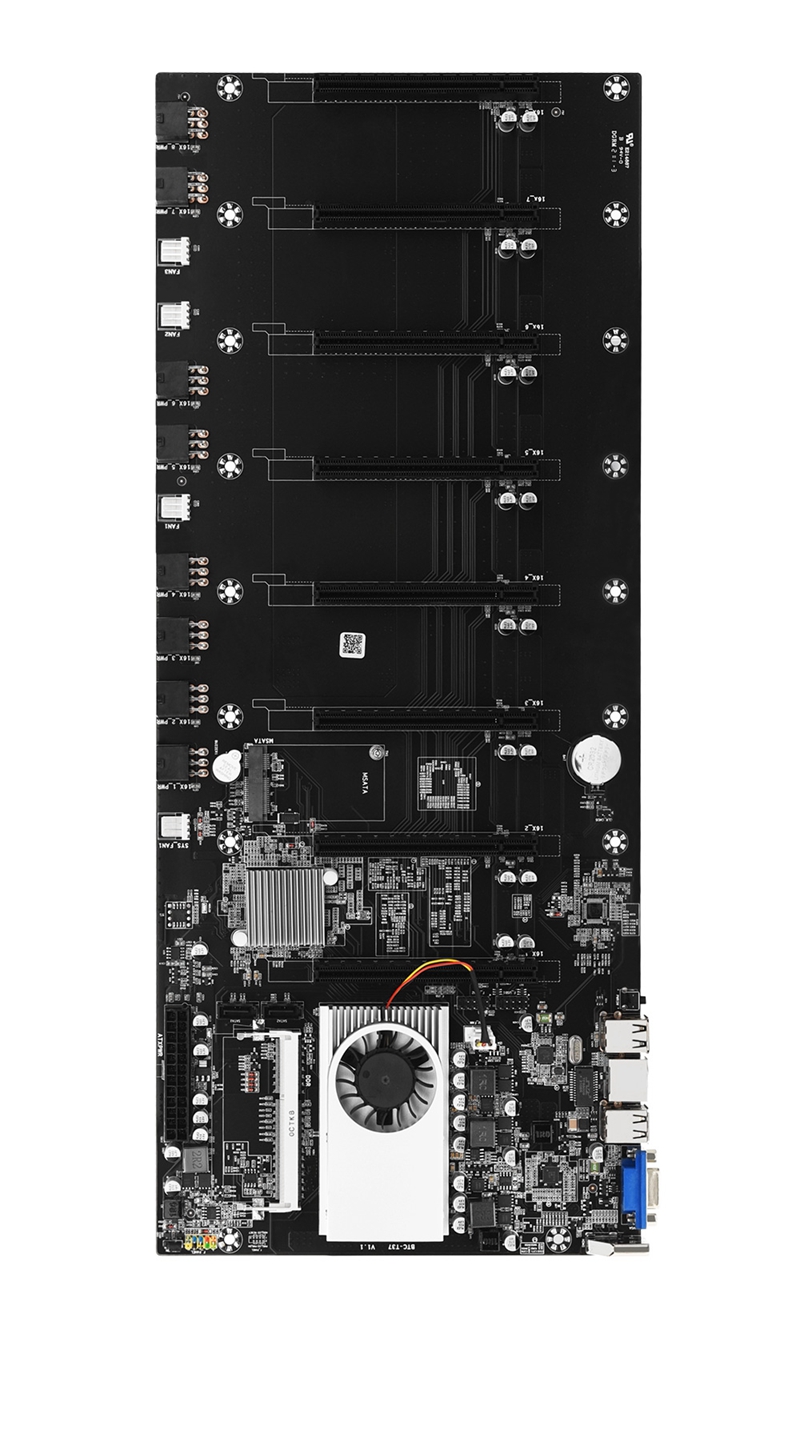

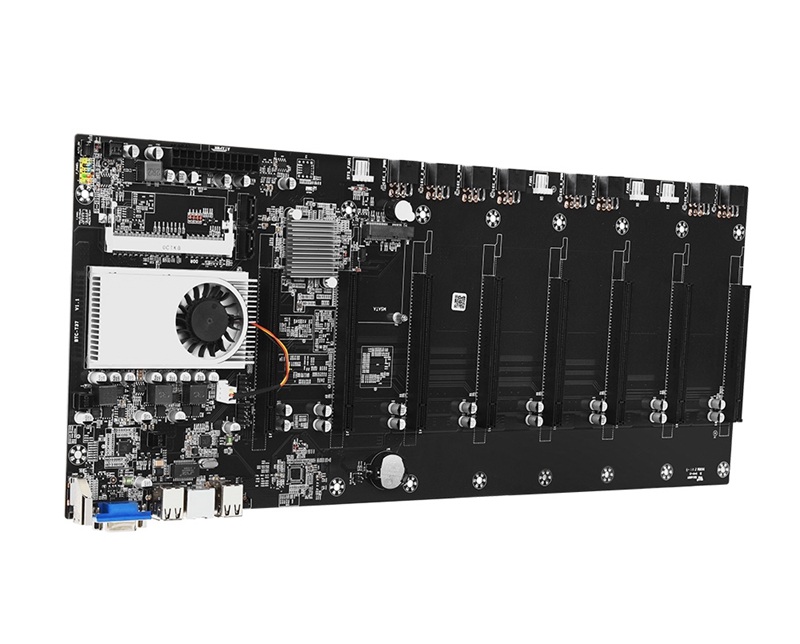

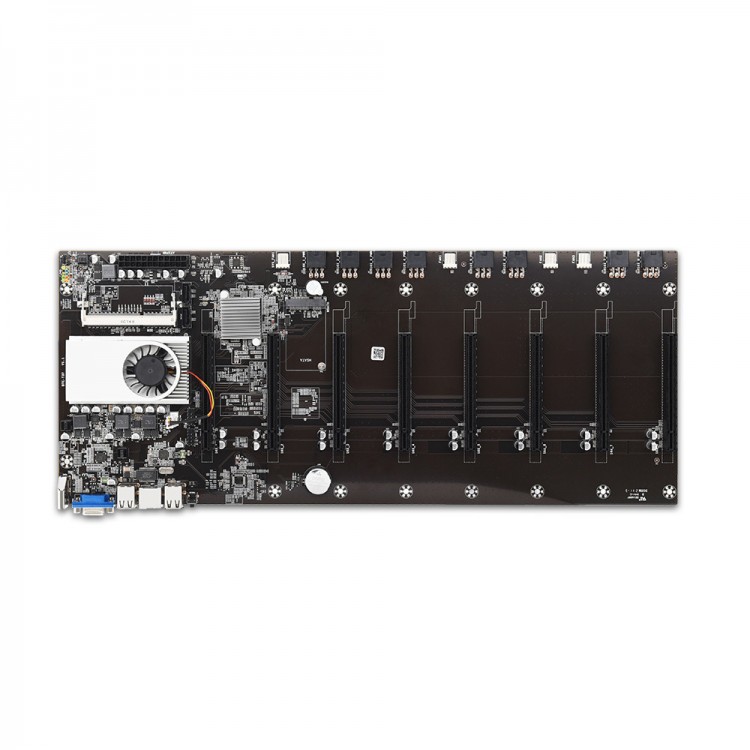

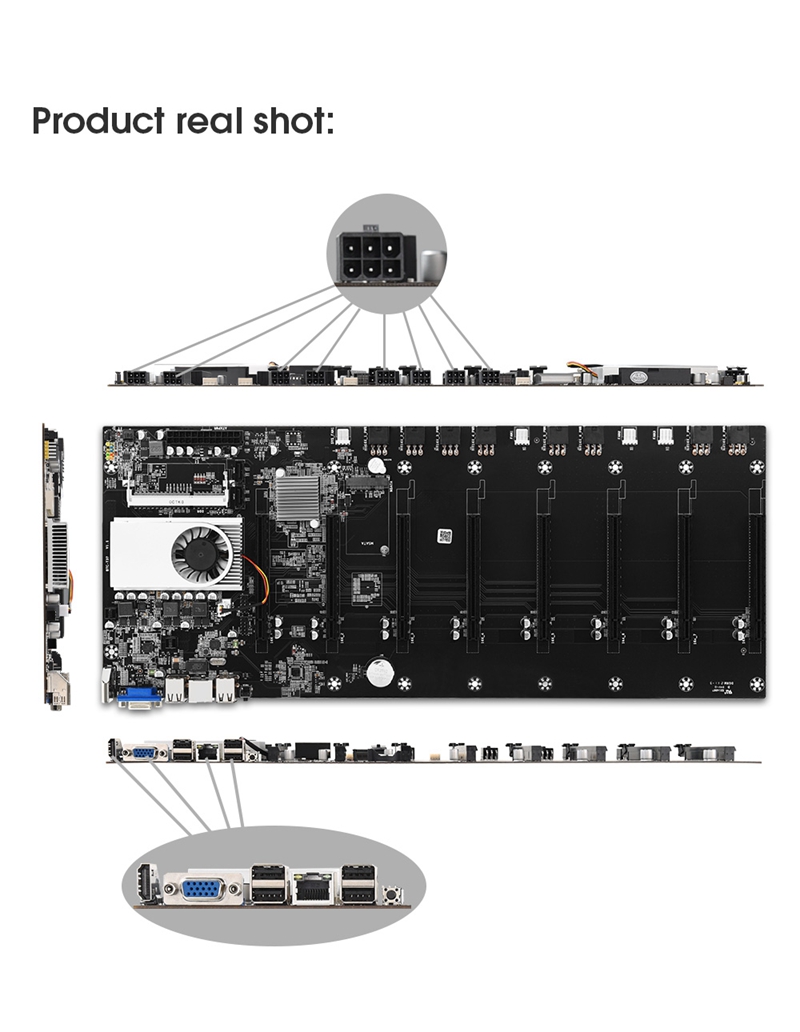

BTC-37 Mining Board Mining Motherboard CPU Ethereum 8 Graphics Card Slots DDR3 Integrated Memory VGA
Overview:
- Certification: CE
- Item Condition: New
- Ports: SATA, VGA, PCI-Express X16, USB 2.0, Ethernet, PCI-Express X1, and HDMI
- With CPU: Yes
- Memory Bank: 1 DDR3 DIMM
- CPU Type: For Intel
- Chipset: For INTEL HM77
- Memory channel: Single
- Products Status: New
- Application: Desktop
- Chipset Manufacturer: For Intel
- Socket Type: FCBGA1023
- Form Factor: ATX
- Memory Type: DDR3
- Graphics Card Type: Non-Integrated
- Hard Drive Interface: SATA
- FSB / HT: 1066/1333/1600MHz
- Brand Name: OEM
- Place of Origin: Guangdong, China
- Audio: none
- Network: Onboard 1* RTL8111F Chipset (for Realtek) for Gigabit Network
- SuperIO: ITE IT8772E

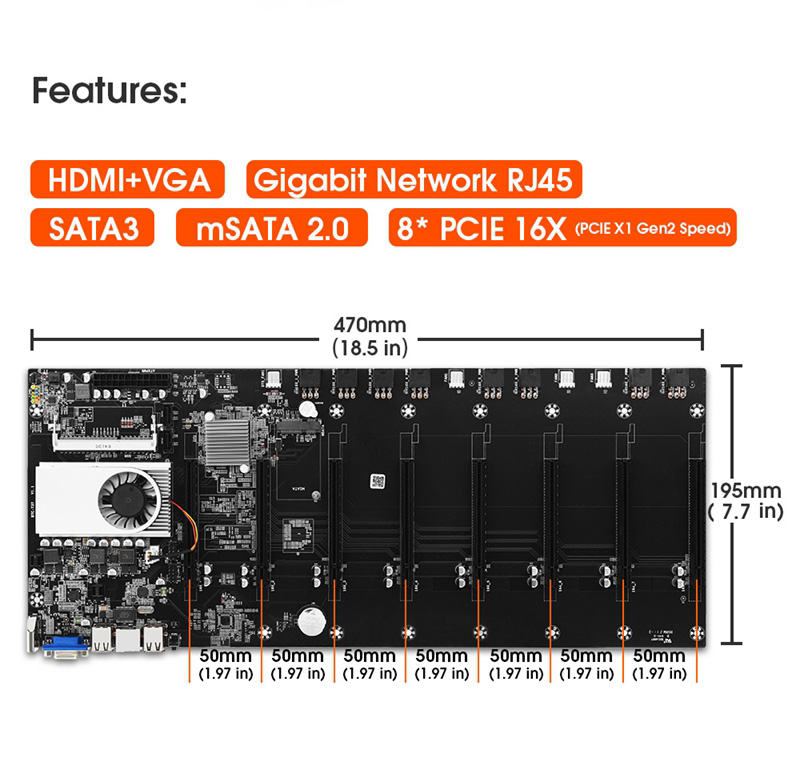

- Dimensions: 470 x 195mm/18.5 x 7.7"
- Extensible Port: 8*PCIE 16X (PCIE x1 GEN2 Speed)
- Ram: 1*DDR3 SODIMM Slot, Supporting 1066/1333/1600MHz
- Storage: 1*SATA3.0 + 1*SATA2.0 + 1*mSATA2.0

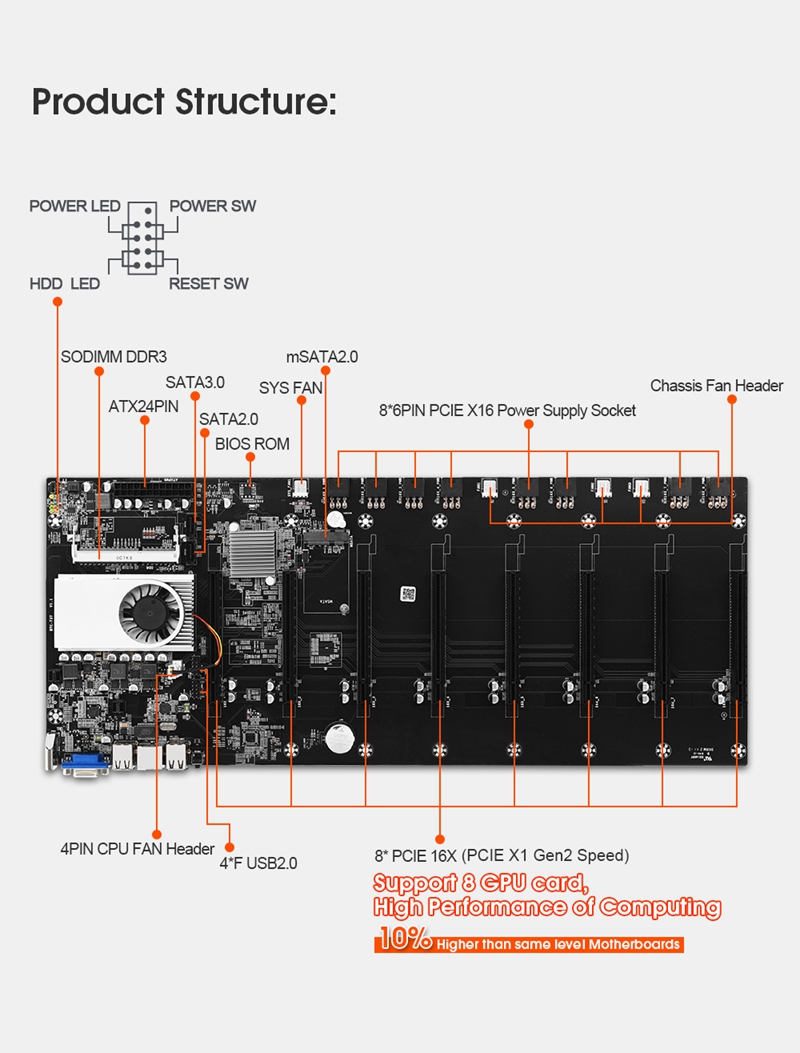

Products Description:
- Onboard CPU: for Intel Celeron CPU 1037U at1.80GHz
- Chipset: for Intel HM77 Chipset
- Display: Onboard VGA+HDMI + PCIE X16 (For Discrete Graphics Card)
- RAM: 1* DDR3 SODIMM Slot, supporting 1066/1333/1600MHz
- Audio: None
- Network: Onboard 1*RTL8111F Chipset (for Realtek) for Gigabit Network (Support Network Boot or PXE Boot)
- Storage: 1*SATA3.0 + 1*SATA2.0 + 1*mSATA2.0
- USB: 4*USB2.0 + 2* F USB2.0 Header
- SuperlO: ITE IT8772E
- Extensible Port: 8*PCIE 16X (PCIE x1 GEN2 Speed) 1*SATA3.0 + 1*SATA2.0 + 1*mSATA2.0 - HDD Interface
- PSU Solution: ATX 24PIN
- Dimensions: 470 x 195mm/18.5 x 7.7"
Package Included:
- 1 x Mining Board
Note:
- The motherboard is designed with GPU. It comes without memory hard disk or cable, please purchase separately.
