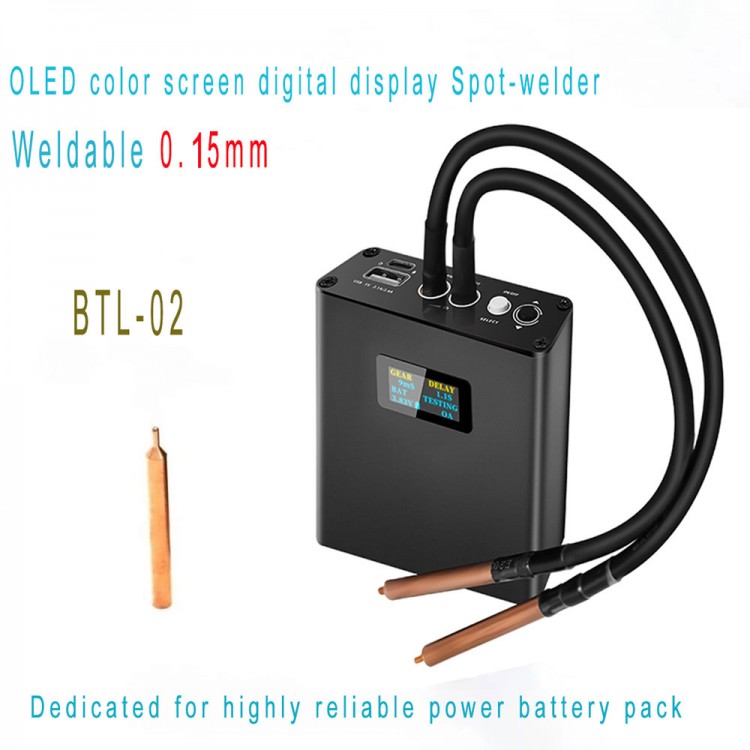

BTL-02 Small Spot Welder Spot Welding Machine Color Screen for 0.1-0.25mm Nickel Sheet 18650 Battery
Features:
- Portable spot welding machine with digital screen
- OLED color screen: accurately display various values
- 80 adjustable power: Added double pulse and intelligent power-off memory. Fine adjustable pulses of 1-80mS ensure fast gearing. The current goes from low to high in only 80 divisions
- Quick to charge it: 3 hours to fully charge its 5000mAh battery. Faster charging, with Type-c interface 2.1A input
- Work as a spot welder and a power bank: with USB 2.4A output
- Safe and durable: There are two MOSFETs on the front and back sides of the circuit, respectively. The design with a current tolerance of over 1600A allows the current path to be short and straight. With two current-sharing brass strips placed transversely, even with large brass resistivity, they still perform well due to their large cross-sectional area
- Integrated spot welding pen: The welding pens are made of copper rod. They have low internal resistance and a longer lifespan
- 25 adjustable delays
- Powerful protection: Overcharge protection, over-discharge protection, over-voltage protection, over-current protection, overpower protection, and current monitoring
- Application: Can be used with 0.1-0.25mm nickel sheets to save your time and efforts. Suitable for cylindrical lithium batteries (such as 18650, 26650 and 32650), nickel-metal hydride batteries and Ni-Cd batteries, enabling firm solder joints
Specifications:
- Item name: Portable Spot Welder with OLED Color Screen
- Main unit size: 112 x 84 x 28mm/4.4 x 3.3 x 1.1"
- Welding current: 6-1200A
- Display: 0.96" OLED screen displayed in yellow and blue
- Battery life: 800-2000 times
- Standby current: 20uA
- Power: 4.2V/1.1KA (4.62KW)
- Battery capacity: 5000mAh
- Charging time: 2-3 hours
- Power bank: built-in 2.4A/2.1A charging and discharging
- Number of charge and discharge cycles: > 1000 times
- Weight of main unit: 300g/0.7lb
- Weight of welder pen: 100g/0.2lb
Package Included:
- 1 x Main Unit
- 2 x Welding Pens
- 1 x Charging Cable
- 1 x Fishpaper
- 1 x Nickle Sheet
- 1 x User Manual
