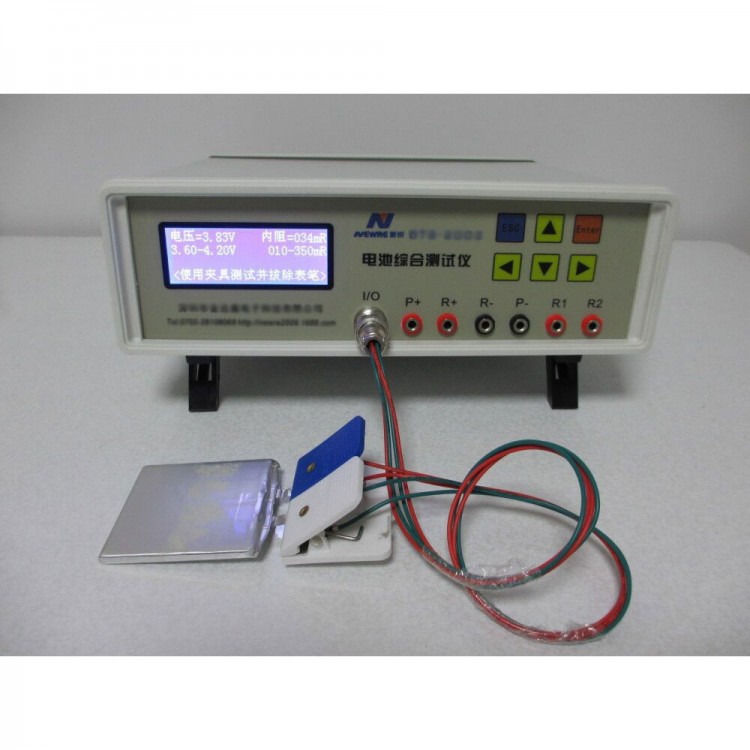

BTS-2002HS 220V Online Version Comprehensive Battery Tester 0-60000mAH Li-ion Capacity Tester Internal Resistance Testing

BTS-2002HS 220V Online Version Comprehensive Battery Tester 0-60000mAH Li-ion Capacity Tester Internal Resistance Testing

Features:
1. Battery comprehensive parameter testing:
- Battery voltage detection (for lithium batteries that are already in a protected state, they can be automatically awakened)
- Battery on load voltage difference detection
- Battery internal resistance detection
- Battery charging performance testing
- Battery discharge performance testing
- Battery overcurrent detection (for lithium batteries only)
- Battery short-circuit protection time detection
- Internal identification resistor 1 (or thermistor) detection of the battery
- Internal identification resistor 2 (or thermistor) detection of the battery
- The upper and lower limits of the detectable numerical values can be set separately for quick screening.
2. Battery capacity testing:
- This tester can perform complete charging and discharging tests on single and double lithium batteries. During the discharge process, the true capacity of the battery is calculated, providing a powerful reference for battery performance discrimination.
- And this tester can perform a cyclic capacity test on the battery, and the test data can be saved to view the previous test data.
3. Voltage internal resistance test:
- This function is only applicable for detecting the voltage internal resistance of lithium battery cells using testing fixtures, and can be used as a voltage internal resistance tester. And it can quickly sort the voltage internal resistance, making it convenient for production needs.
4. Battery charging function:
- Charge the battery separately, act as a charger function, and control the charging voltage. Count the charging capacity during the charging process.
5. Battery discharge function:
- It can discharge the battery separately as a load, control the discharge voltage, and simultaneously perform discharge capacity statistics.
6. Instrument factory debugging:
- This item is for production debugging, and use by the manufacturer and is not open to customers.

Application:
- Testing for: 18650 and other cylindrical and square lithium batteries, polymer batteries, nickel cadmium, nickel hydrogen batteries, lead-acid batteries, etc.

Specification:
- Battery voltage:
  Measuring range: 0 - 10V
  Precision: 0.001V
  Resolution: 1mV
- Charging/Discharging current:
  Measuring range: 10mA - 2000mA
  Precision: 0.001A
  Resolution: 1mA
- Battery over-current:
  Measuring range: 0.1 - 20A
  Resolution: 0.01A
- Internal resistance:
  Measuring range: 0 - 999mohm
  Resolution: 1mohm
- Resistance:
  Measuring range: 0.1 - 999.9Kohm
  Resolution: 0.1Kohm
- Capacity:
  Measuring range: 0 - 60000mAh
  Resolution: 1mAh

Testing Speed:
- 6 Static testing (voltage, internal resistance, short circuit protection, charging, discharging, overcurrent): 0.1 - 0.3 seconds
- Capacity test (1C current charging and discharging): 3 - 4 hours

Measuring Accuracy:
- Voltage measurement accuracy: ±0.01% FS + 2 digits (10V)
- Current measurement accuracy: ±0.1% FS + 2 digits (2A)
- Overcurrent measurement accuracy: ±1% FS + 2 digits (20A)
- Internal resistance measurement accuracy: ±1% FS + 1mohm
- Identification resistance measurement accuracy: 100Kohm±1%
- Battery capacity measurement accuracy: 60AH±x 1%

Others:
- Power supply voltage: 220V +/- 10% 50Hz
- Power consumption: > 50W
- Product size: L x W x H = 285 x 240 x 85mm
- Packaging size: L x W x H = 320 x 300 x 160mm

Package Included:
- 1 x Battery Tester
- 1 x Testing Pen
- 1 x Testing Clip
- 1 x Power Cord
- 1 x User Manual

Note:
- Battery is not included.
