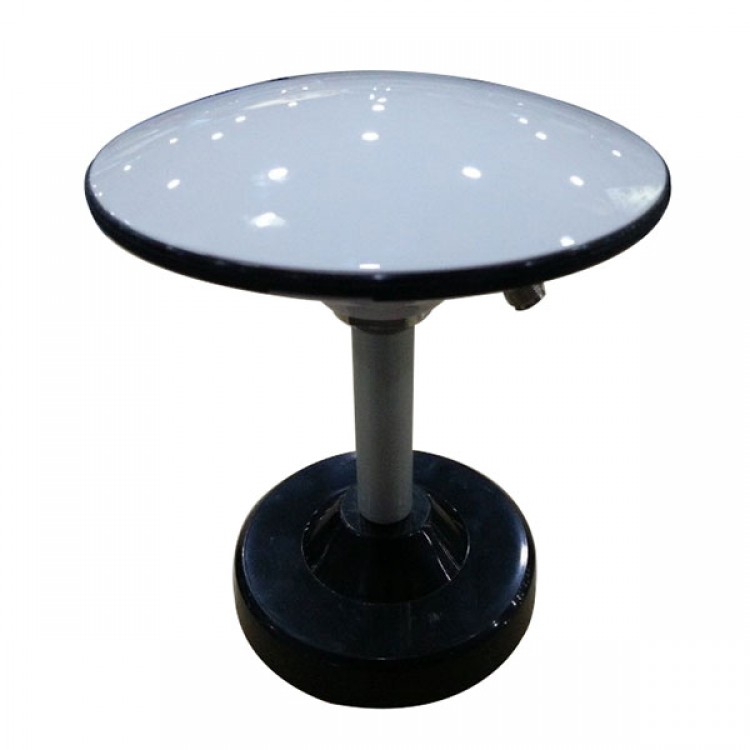

Built in + Antenna Dual Star Disk Shape Shell Instrument for Driving Test
Description:
- Default setting: TTL level output, 9600, 1Hz output, standard nmea-0183 agreement output
- Bult in high precision GPS module + 28db gain two stage amplifying active antenna, high precision 0.5m-2m
- Baud rate to choose: 4800, 9600, 3.8400, 115200
- Output sentence: RMC, VTG, GGA, GSA, GSV, GLL
- Level to choose: TTL, USB or RS232
- Data output frequency to choose: 1HZ-10HZ
Parameters:
- Power supply: DC voltage: 2.8V-6V, typical: 5V
- Consumption: acquisition 50mA @5V
- Receiving channel: 56 searching channel
- Antenna gaining: 32dBm
- Receiving sensitivity: tracking: -162dBm, acquisition:-145dbm
- Positioning time: cold start: 27S in average, warm start: 26S, hot start: 3S
- Level positioning precision: 2.5m in openwild
- Output frequency: 1Hz-10Hz, default 1Hz
- Speed precision: 0.1m/s (without aid)
- Acceleration tracking precision: 0.1m/s-s (without aid)
- Dynamic features: max height: 18000m, max speed:515m/s, max acceleration: 4G
- UART interface: UART communication: TX and RX, support speed rate: 4800dps to 115200bps, default is 9600bps
- Temp range: working temp: -45---85degree, storage temp: -55---95degree
- Weight: 200g
- Length: 0-5m
- Interface: USB, DB9 serial port, earphone interface, aviation head
