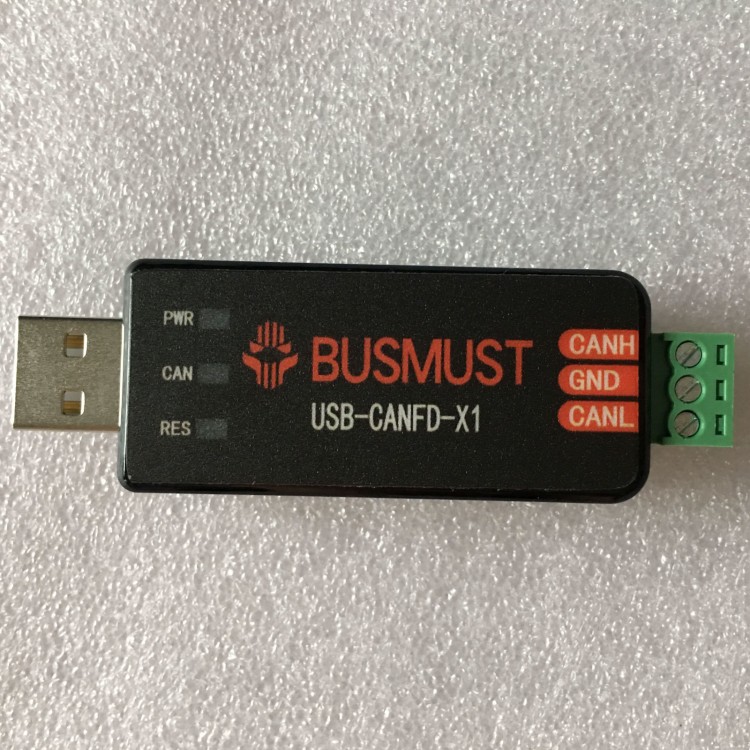

Features:
- Support enterprise-level BUSMASTER upper computer
- Software native support for VECTOR and PEAK-CAN hardware devices
- USB drive size makes it portable to carry in a pocket
- Support multiple devices: up to 16 channels can be connected at the same time to send and receive, making it convenient for batch testing & control
- Support CAN Classic 2.0B and CANFD protocols and support up to 8000kbps data baud rate

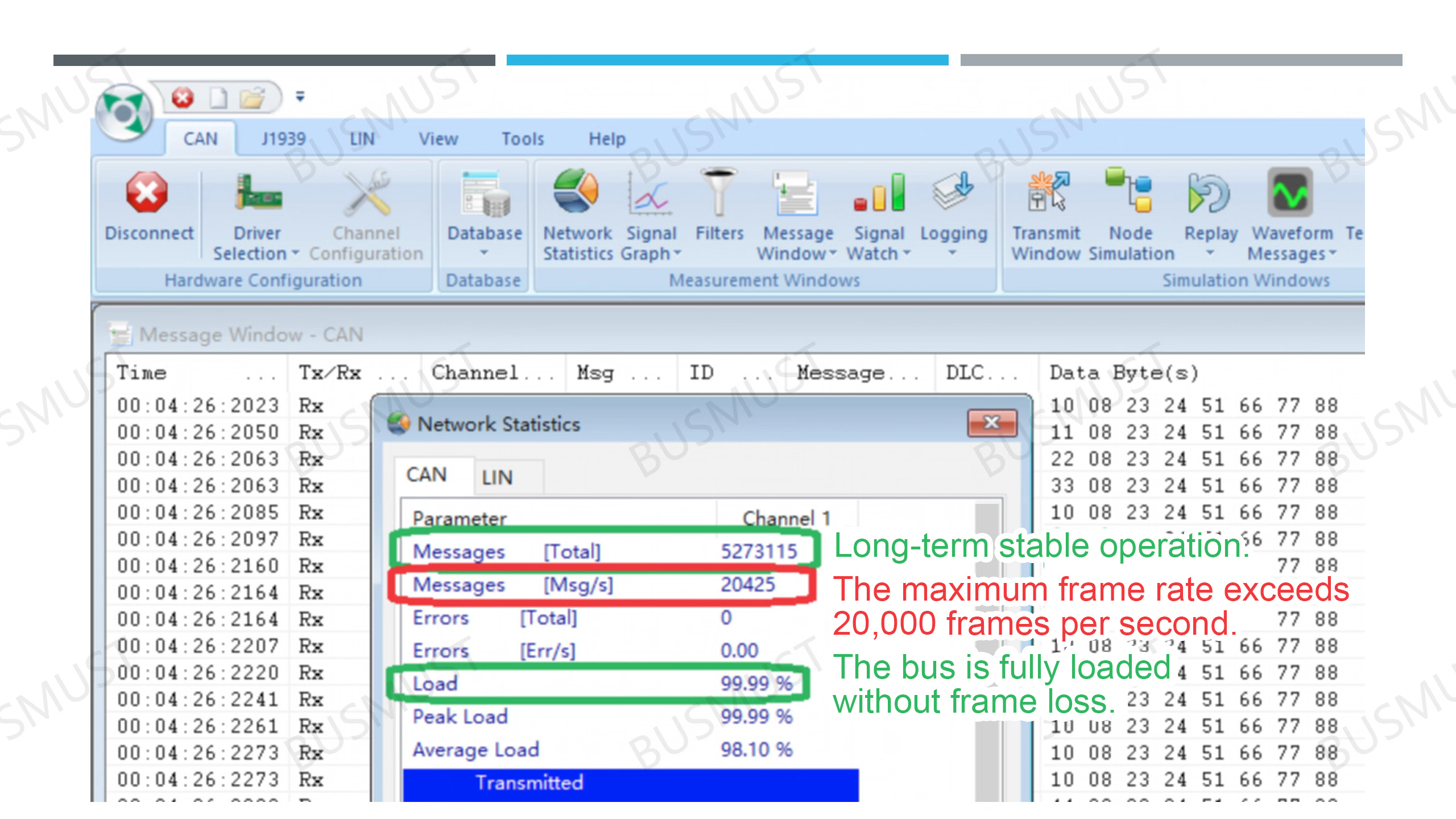

- Innovative three-level frame-buffer design, 24-hour bus full load test without frame loss in classic scenarios such as 500kbps

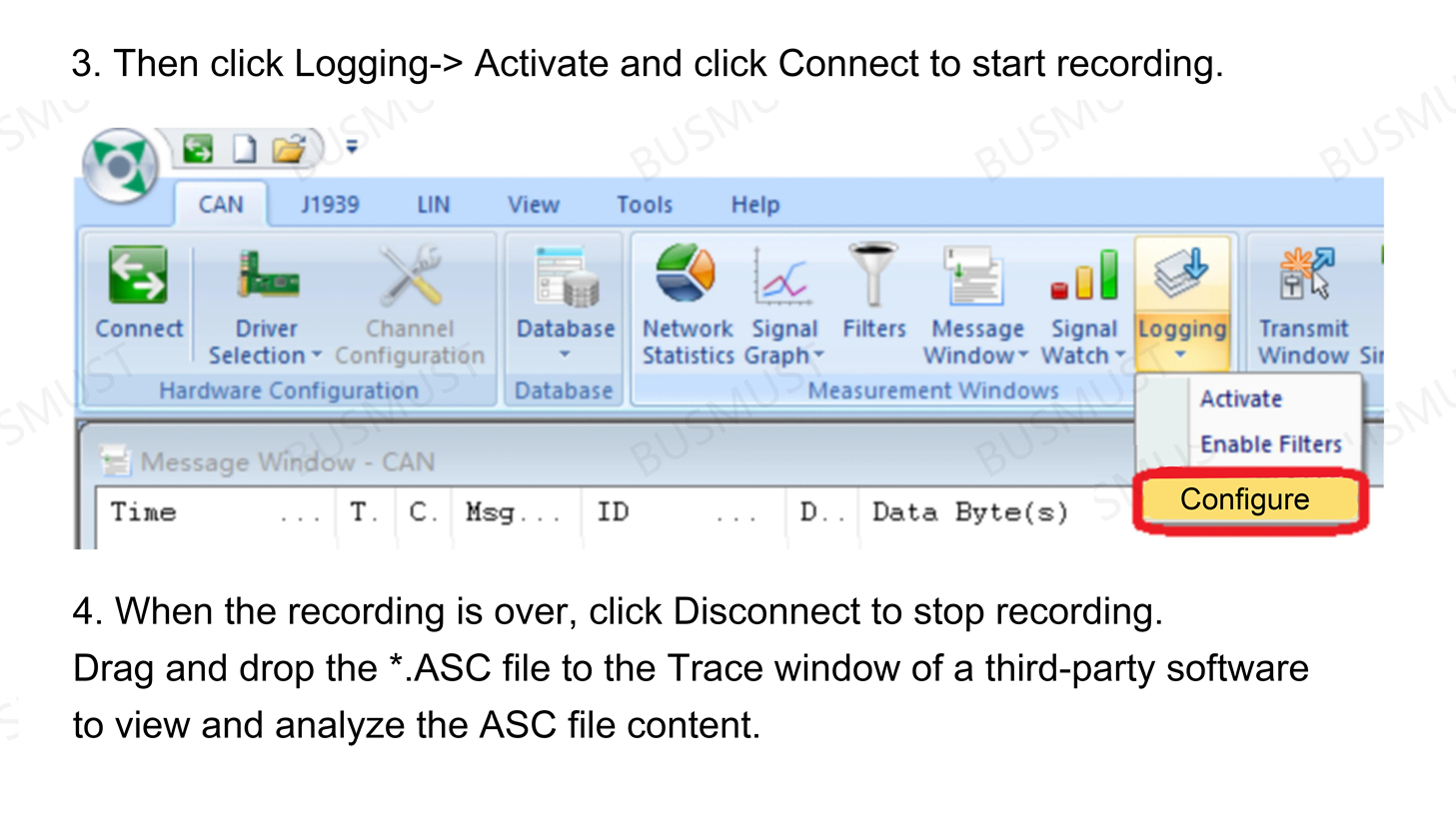

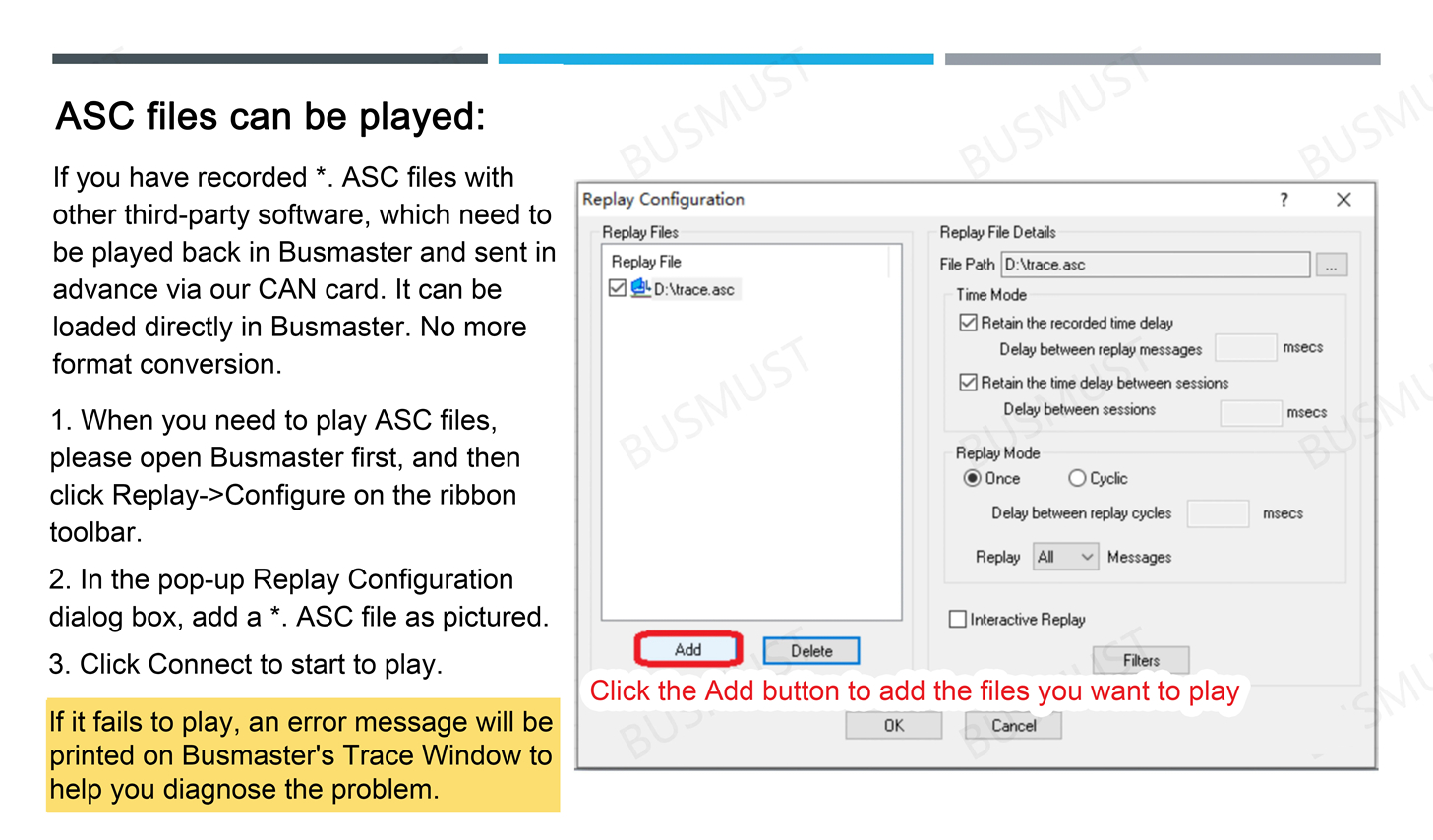

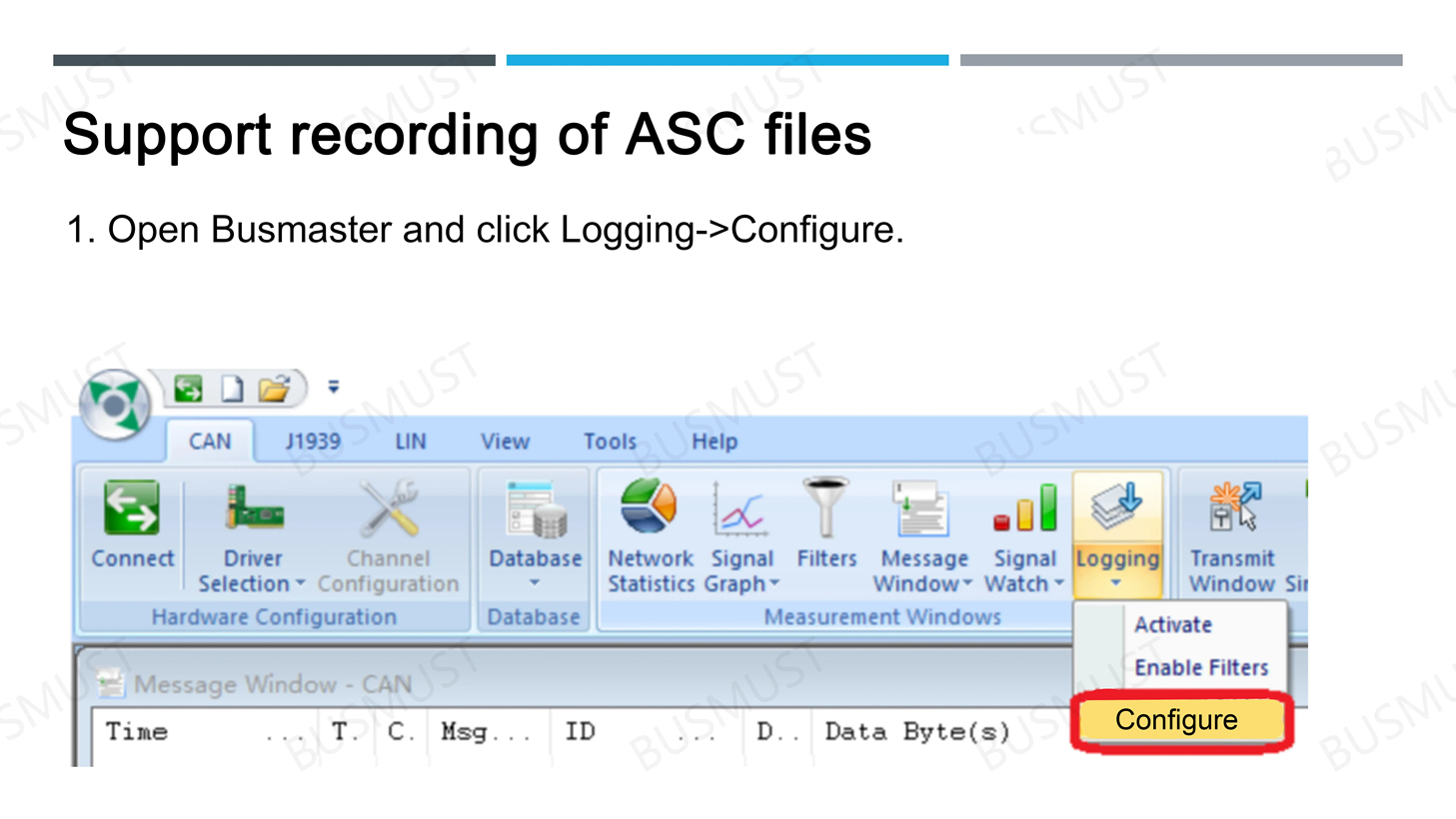

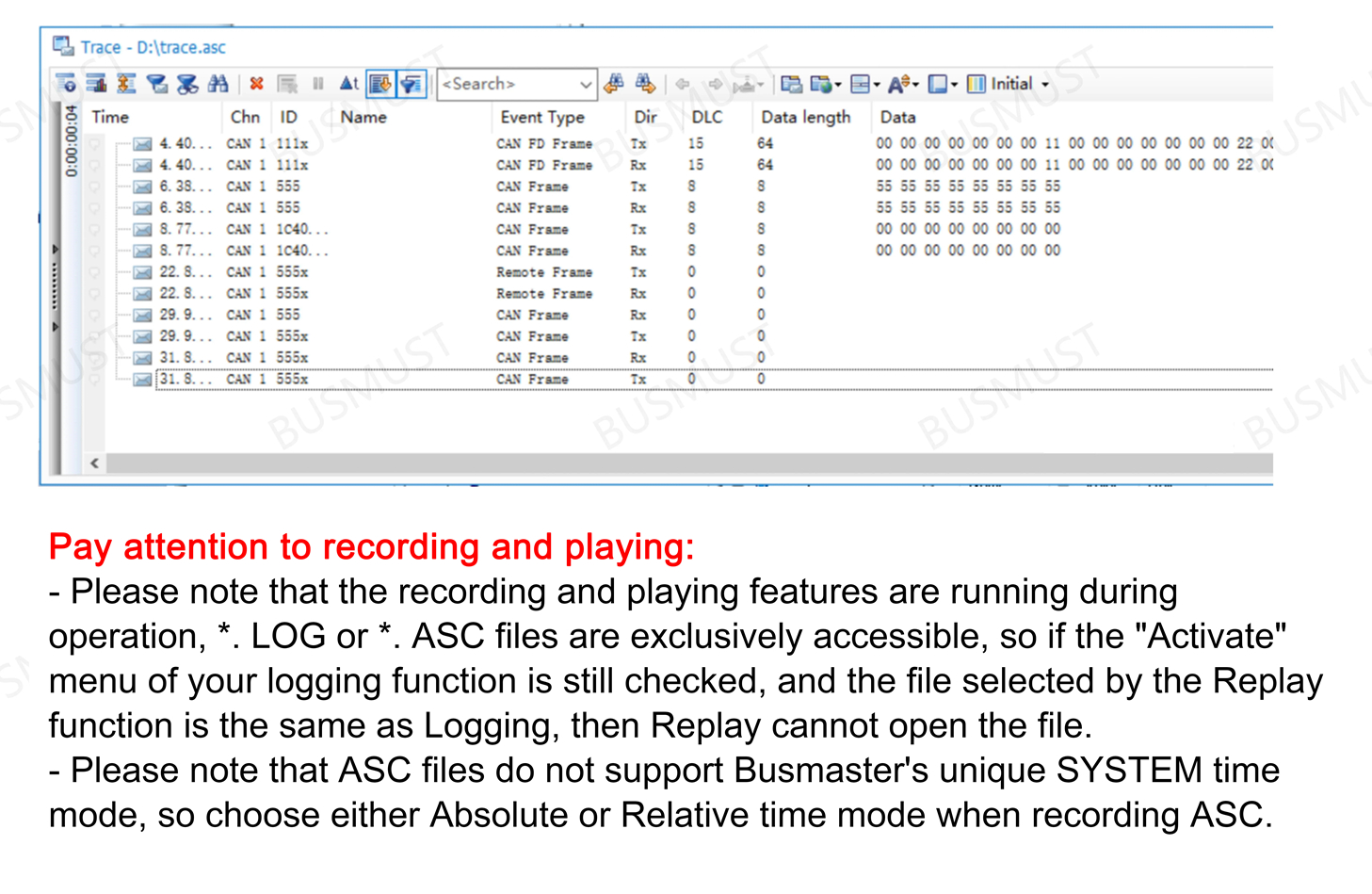

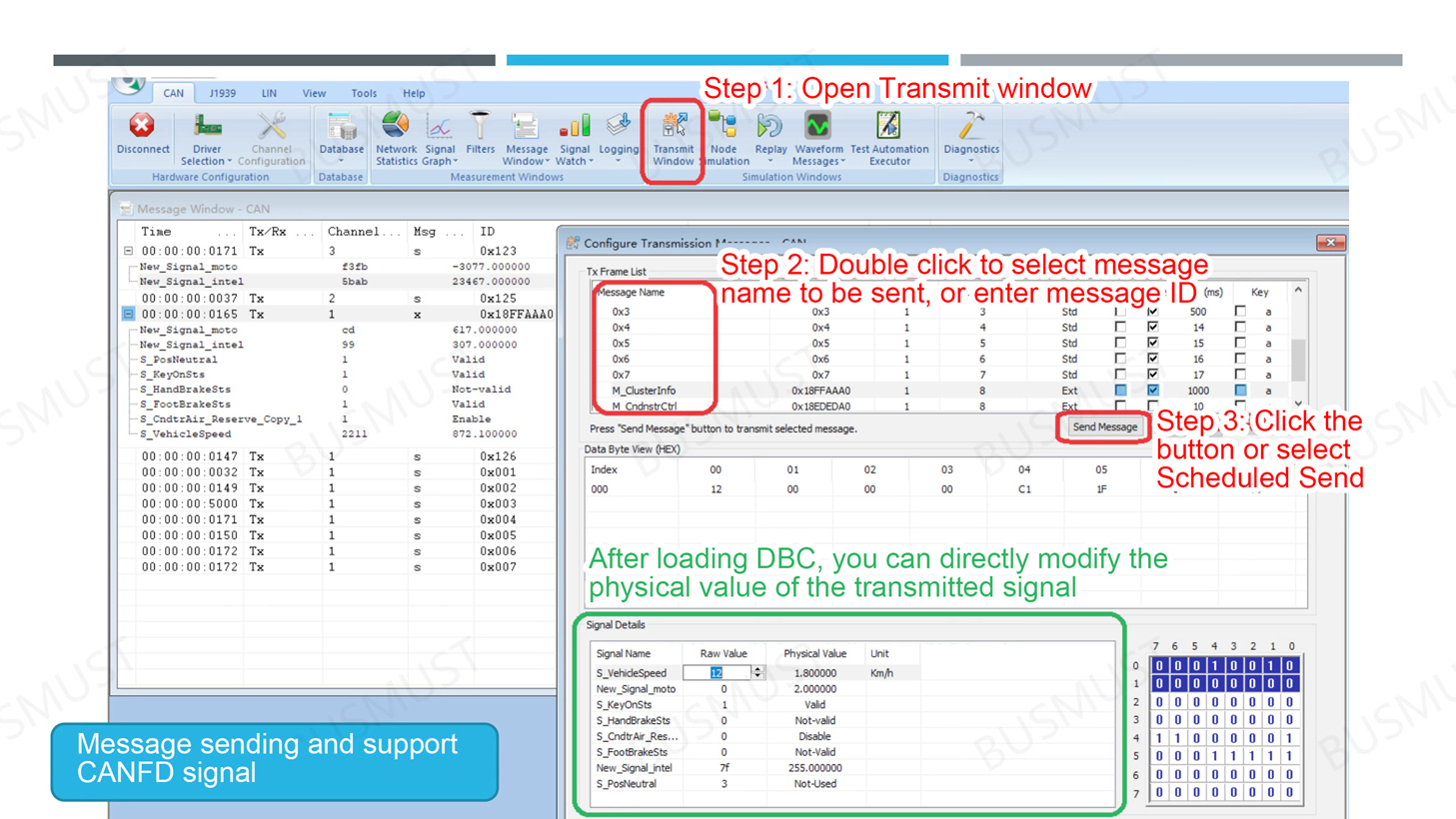

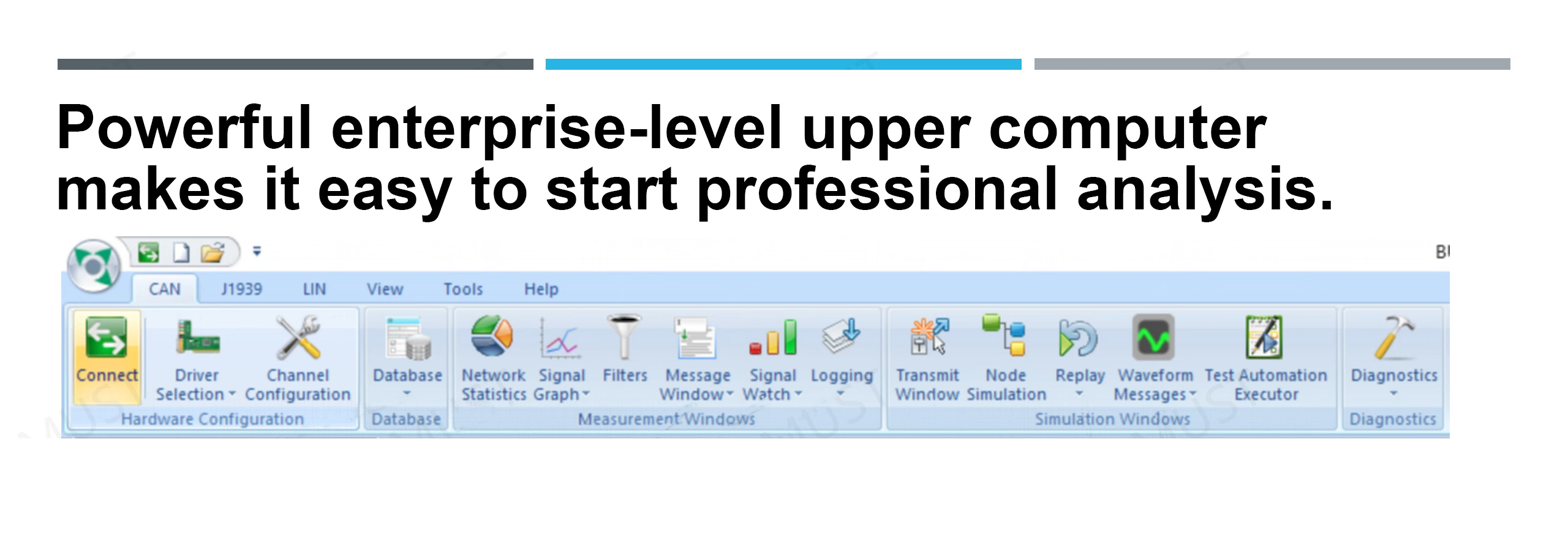

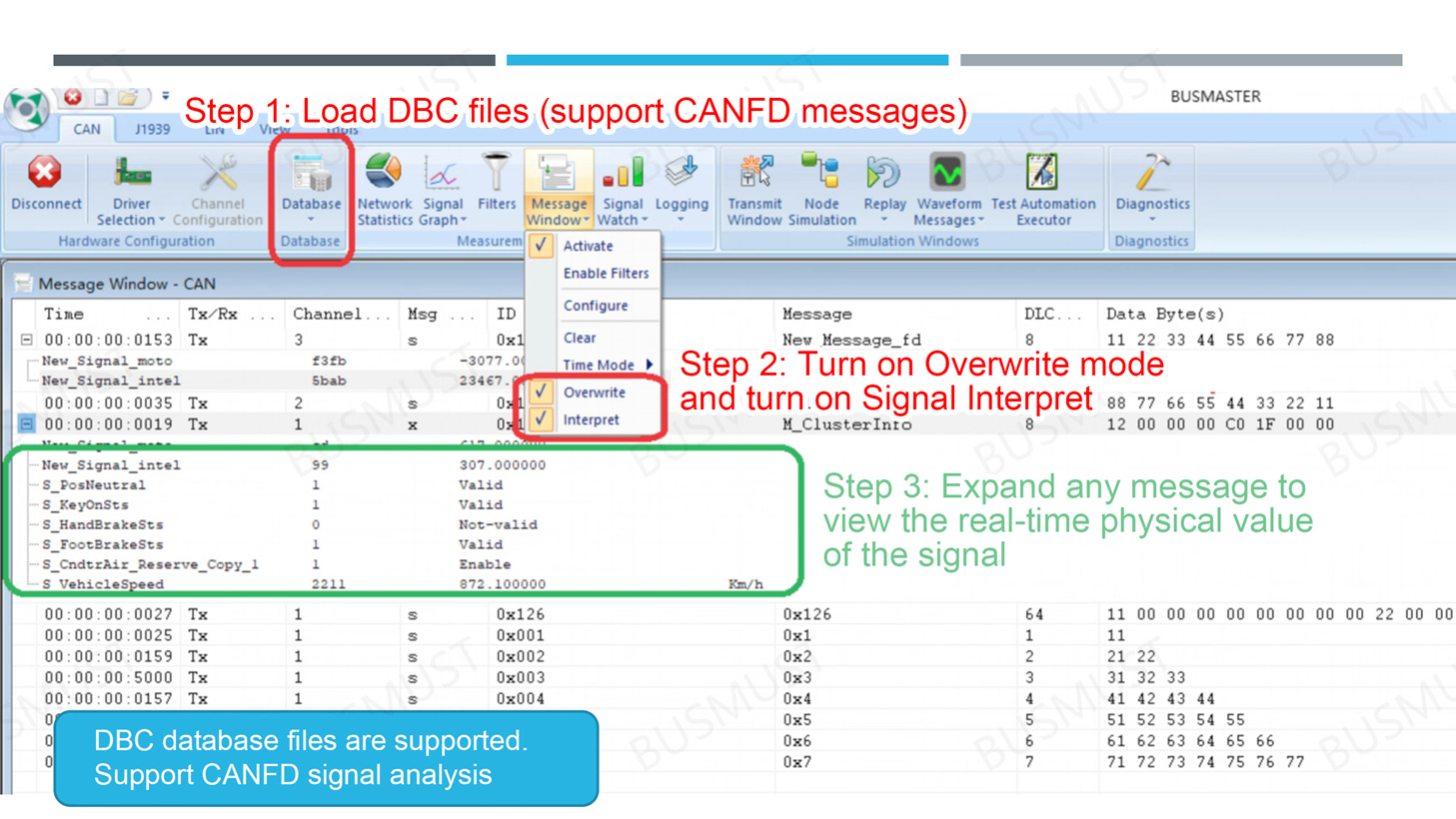

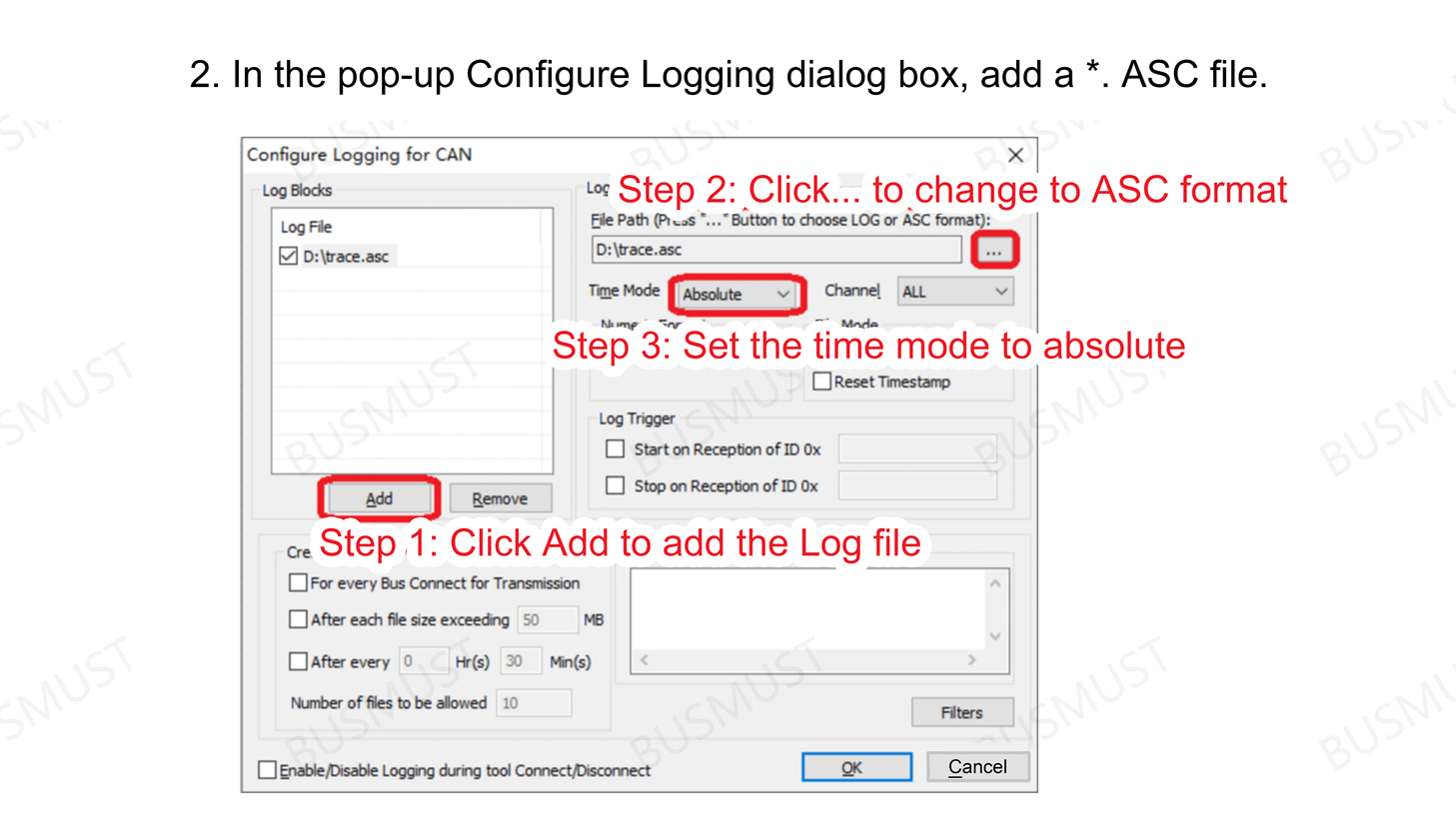

- Industry-leading host computer function: support enterprise-level functions such as DBC loading, recording playback, signal analysis, curve drawing, node simulation, UDS and automatic testing

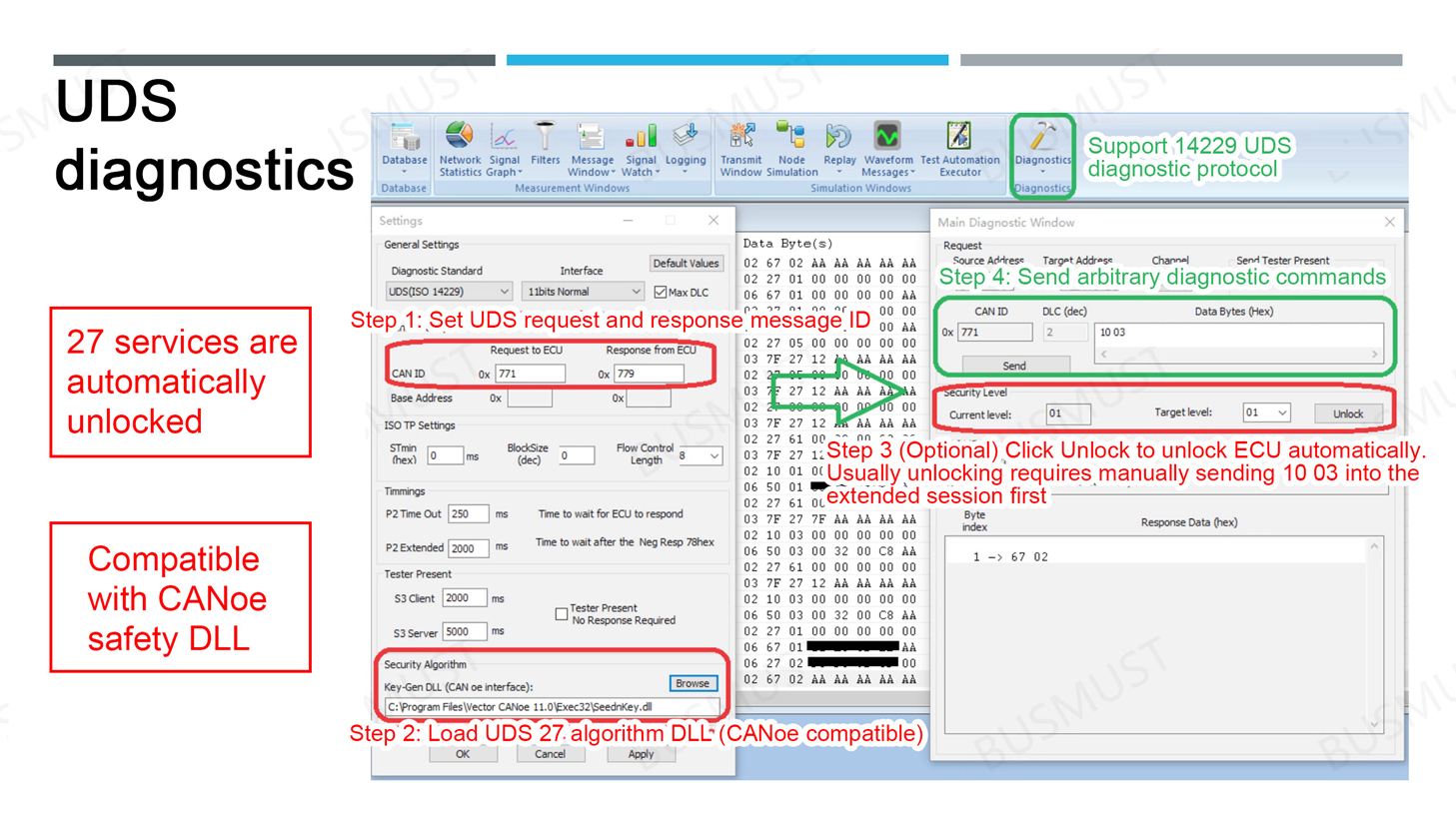

- Support loading UDS 27 security algorithm DLL automatic unlocking ECU (compatible with CANoe security DLL interface)

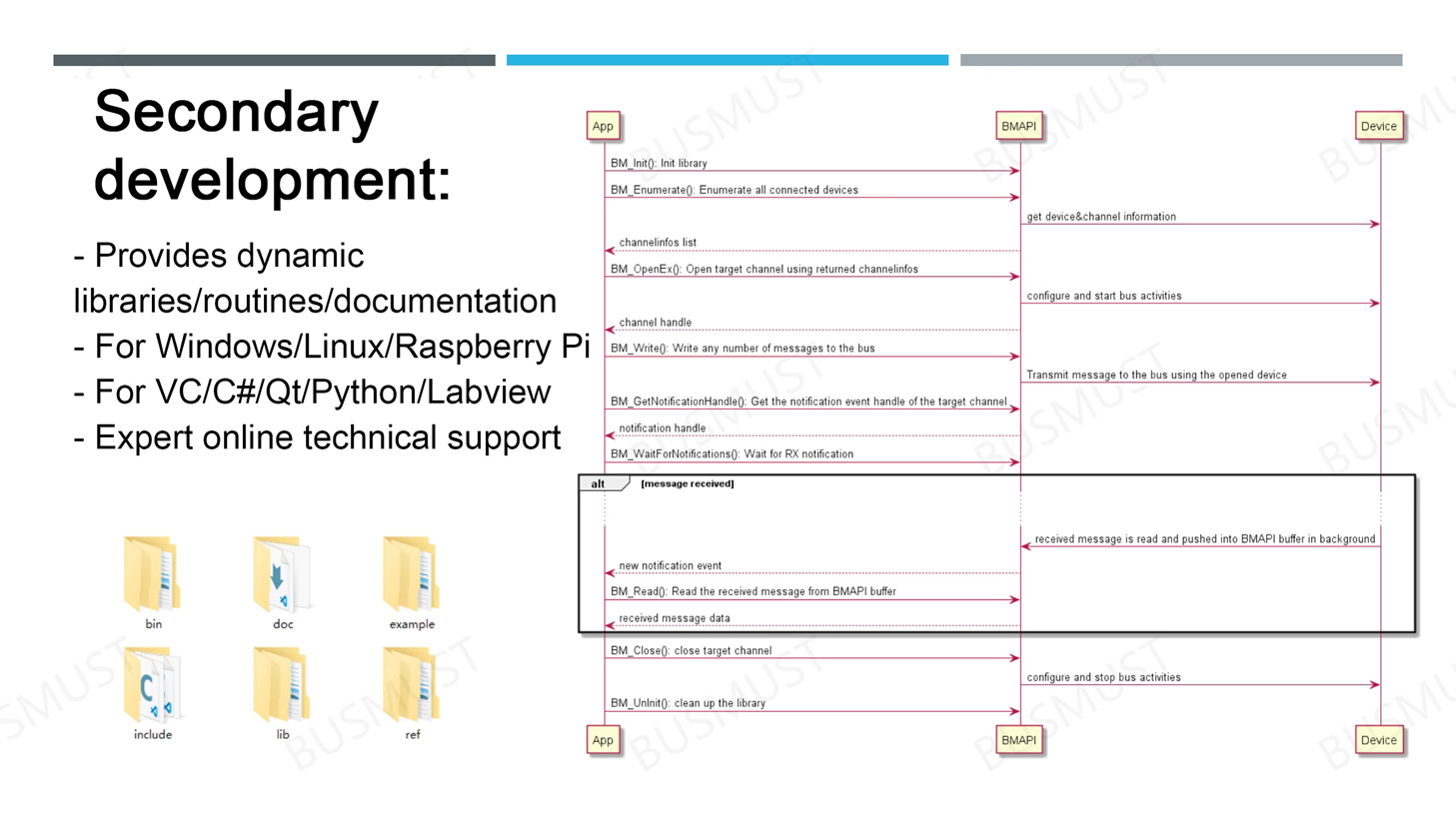

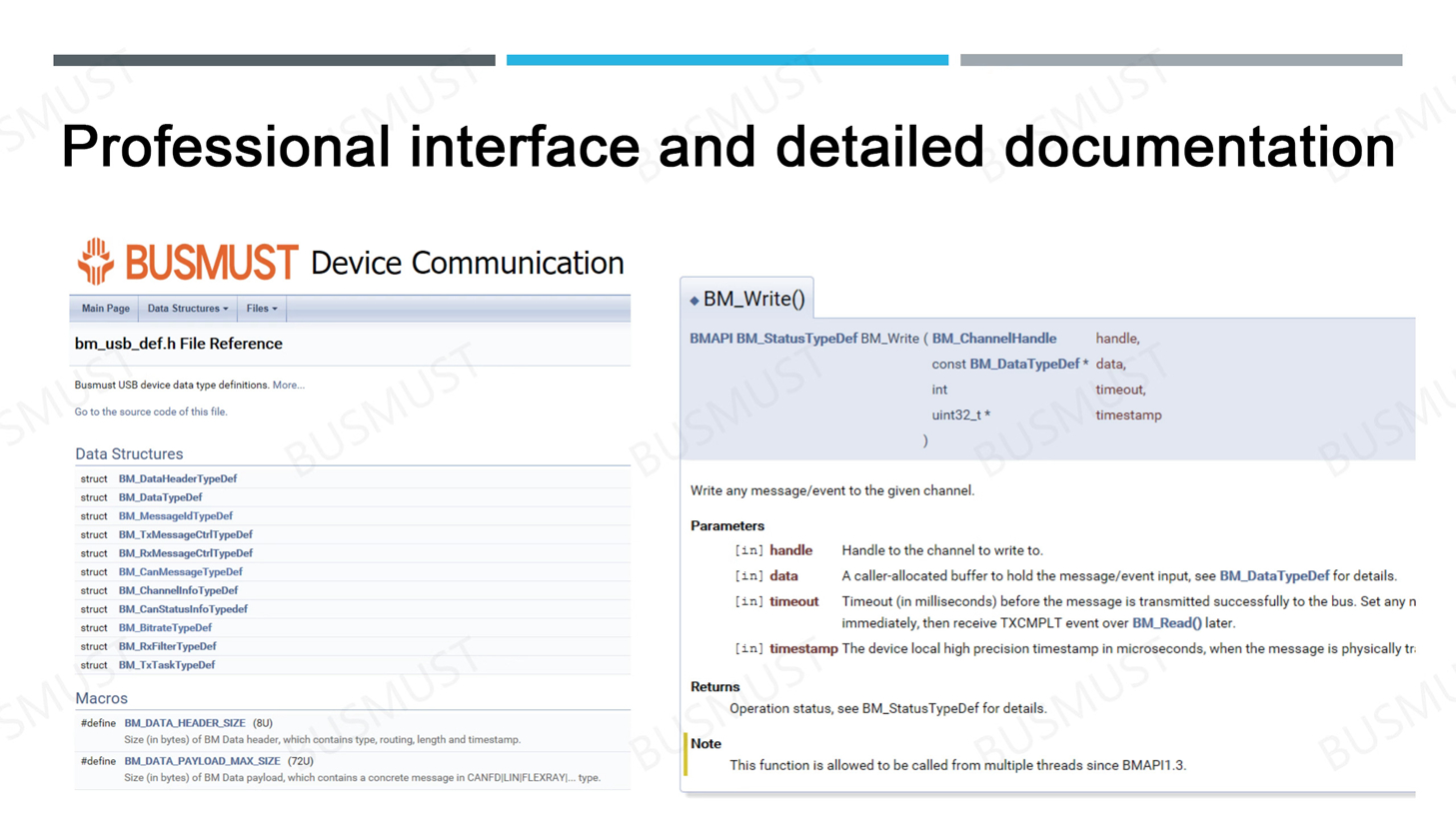

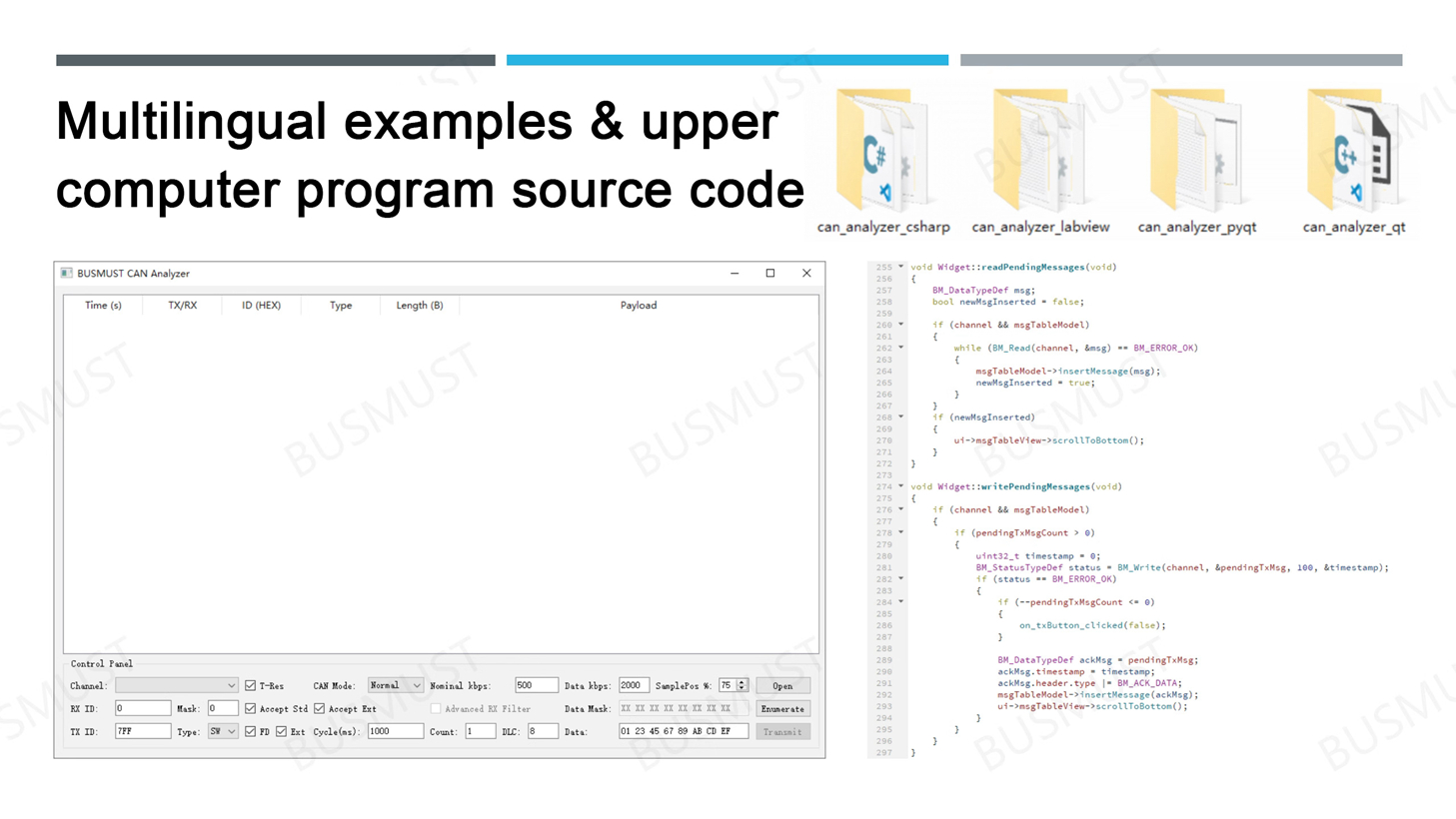

- Support secondary development: Powerful secondary development interface and rich example program source code. For PYTHON/C#/QT/RASPBERRY PI/LABVIEW/LINUX. Rich and practical example programs help you quickly customize enterprise-level upper-layer applications

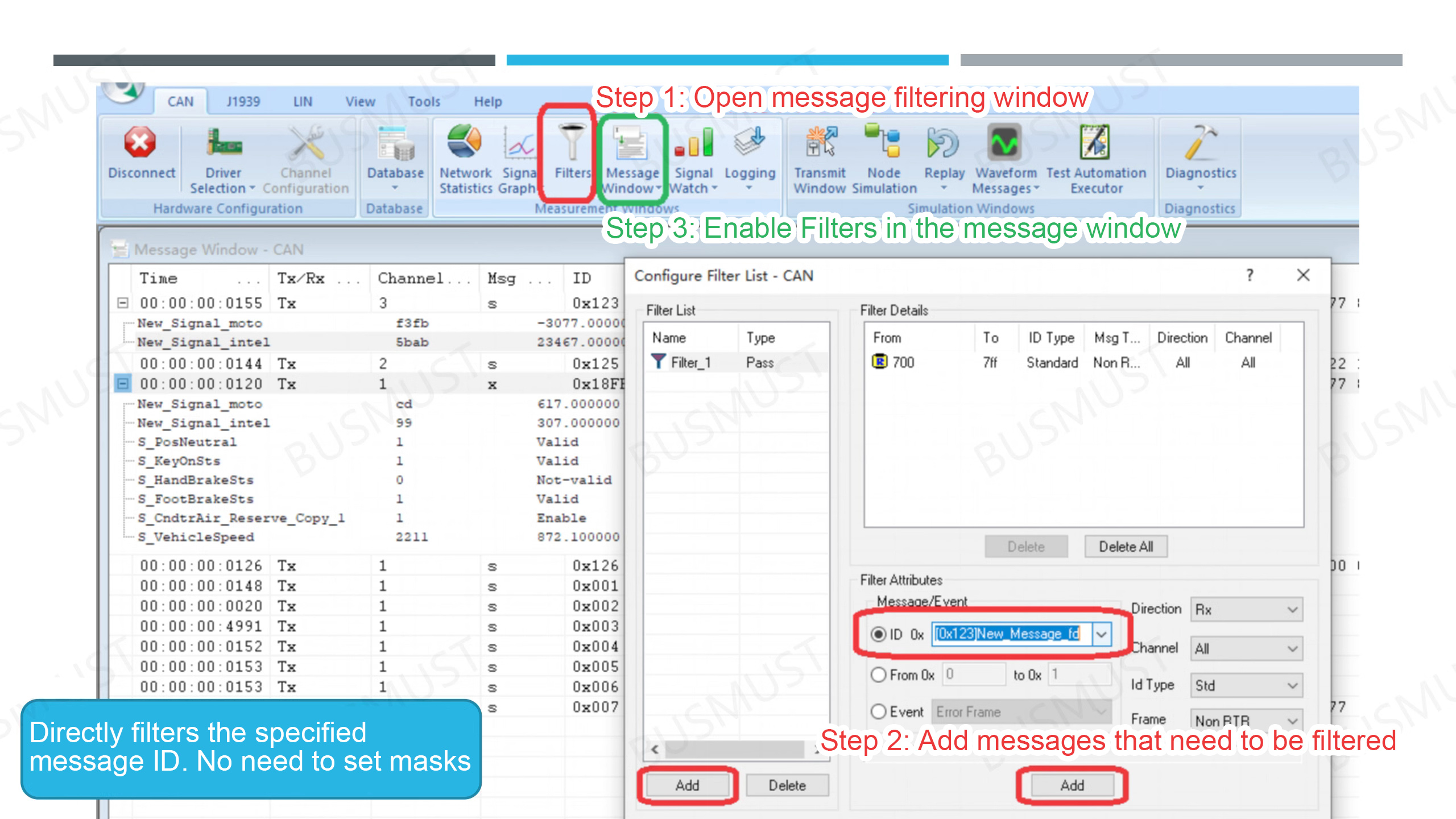

- Two hardware-level real-time receiving filters exclusively support message load content filtering
- One hardware-level scheduled sending task and auto-increment/random mode can be configured at will

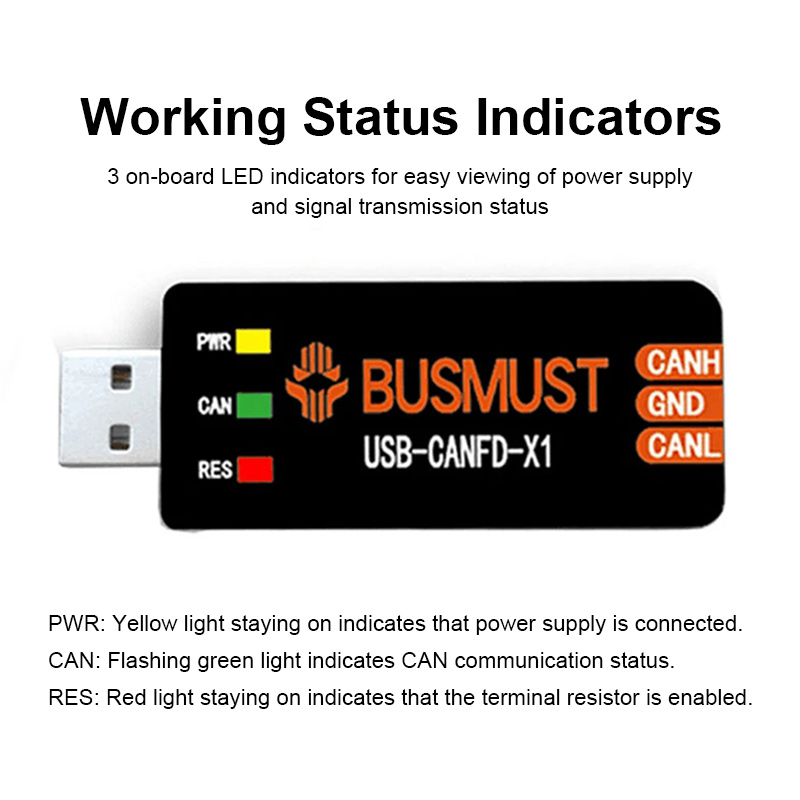

- Built-in 120Ω terminal resistor eliminates complex bus connections and reduces failure rates

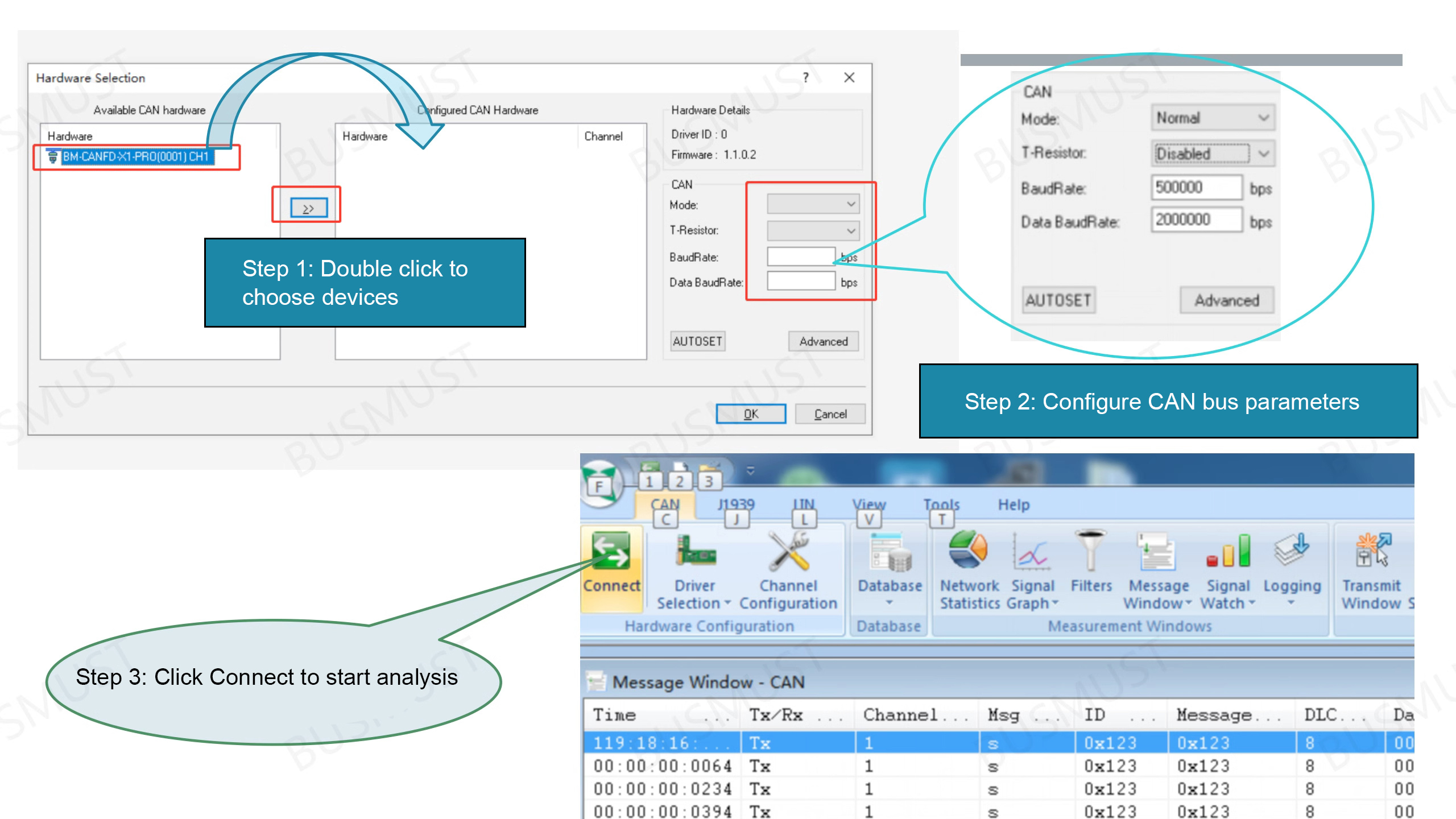

- Powerful baud rate and terminal resistor automatic detection help you eliminate complex software configuration and improve work efficiency
- Computer USB interface with over-current protection: strong protection of your computer security
- Bus ESD protection reduces bus interference caused by signal interference

Specifications:

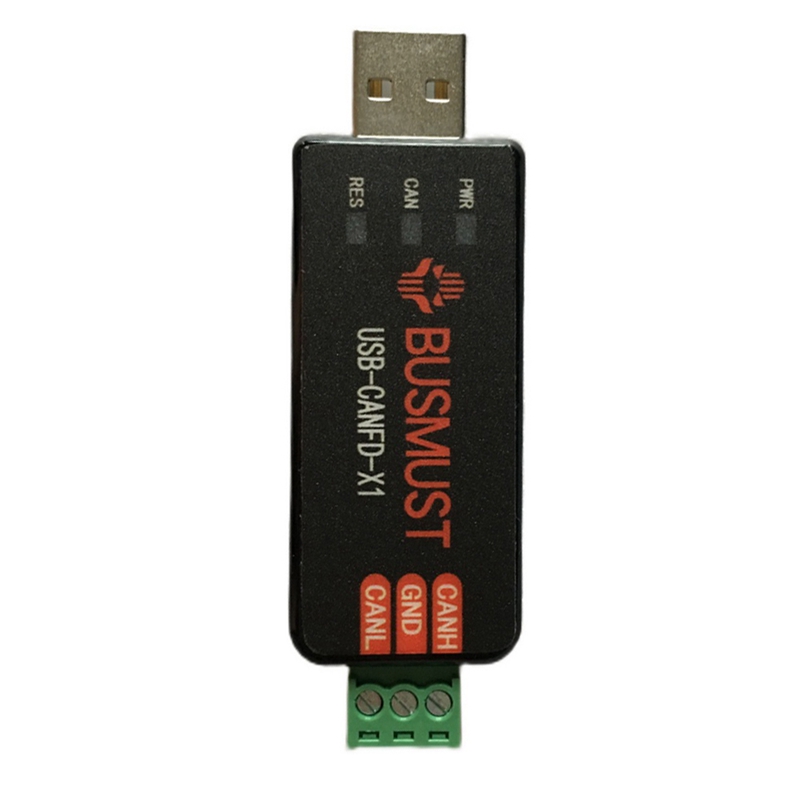

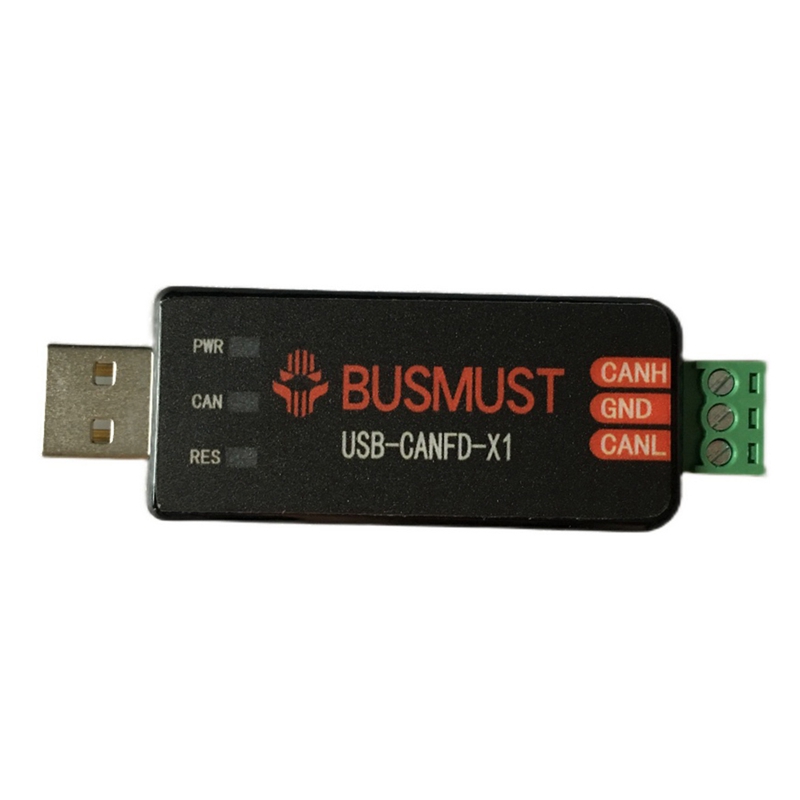

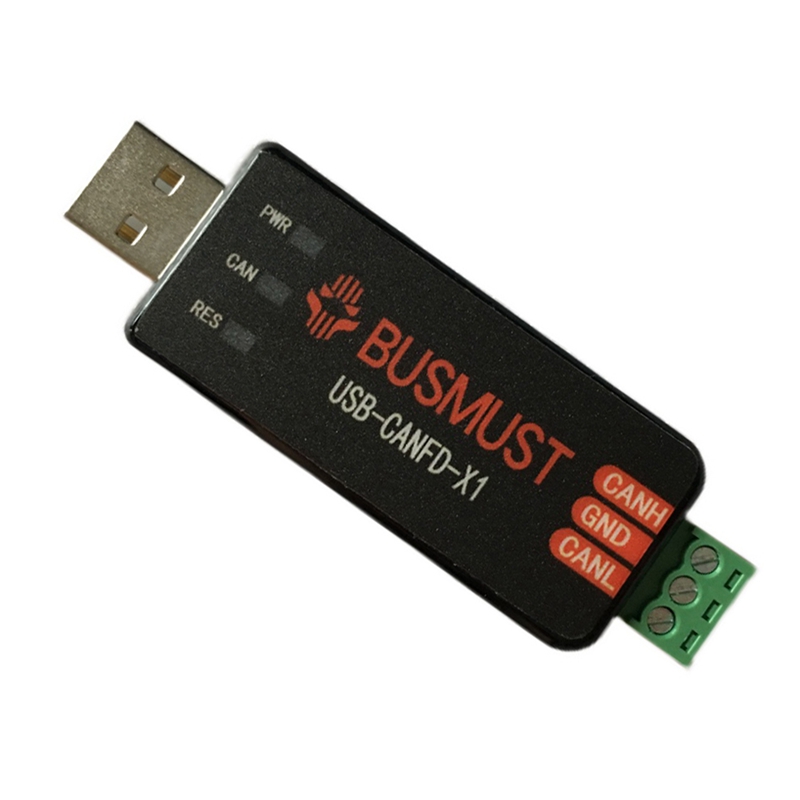

- Model number: USB-CANFD-X1
- Interface type: 3.5mm 3P terminal
- Number of CAN channels: 1
- CAN-FD: √
- Maximum baud rate: 8000kbps

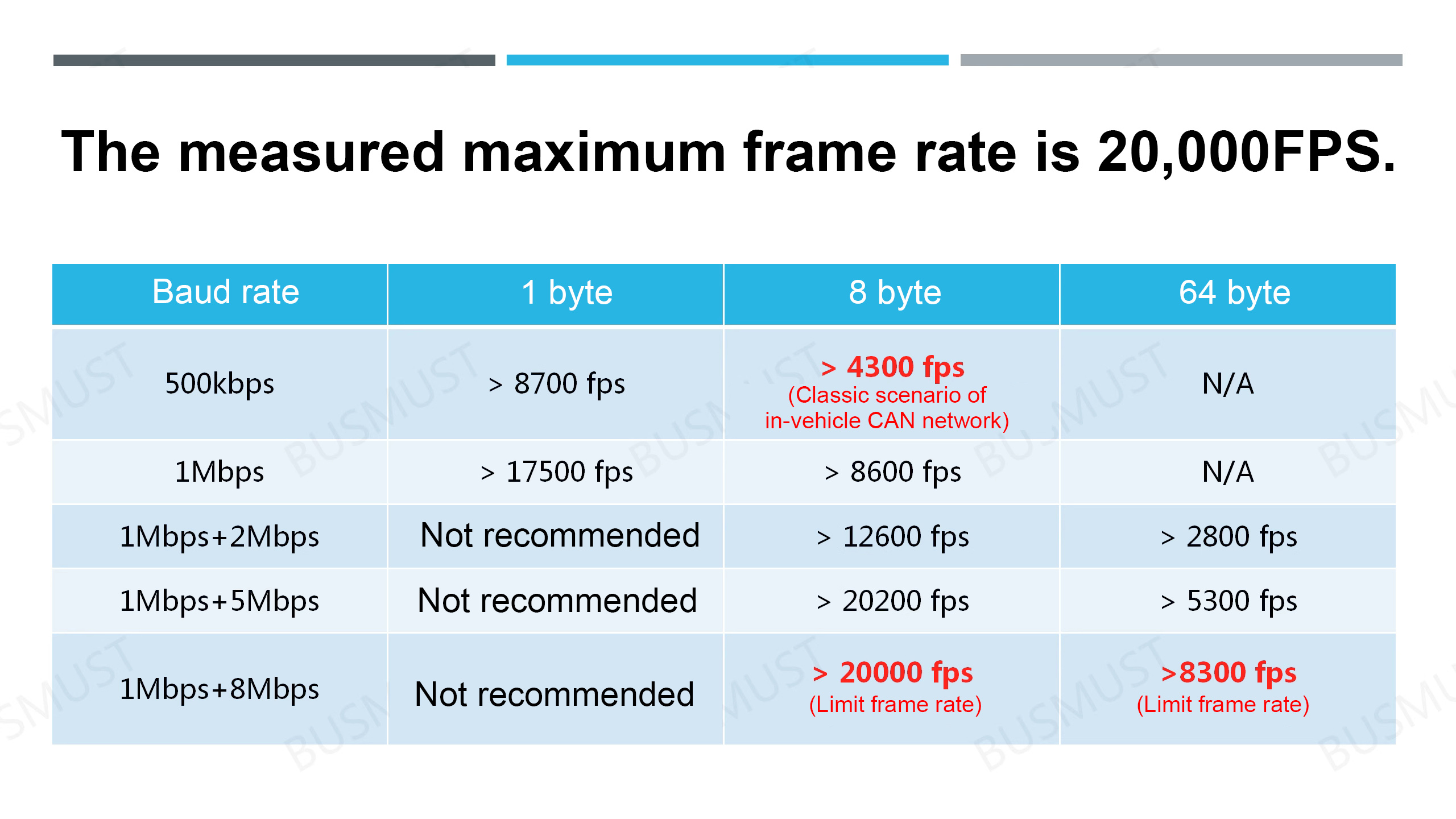

- Receiving frame rate: 20000fps
- Sending frame rate: 2500fps
- Secondary development library: Supported
- Program-controlled terminal resistor: Supported
- Computer over-current protection: √
- Industrial electrical isolation: only interfaces are protected

Package Included:
- 1 x Analyzer

Faster speed and more possibilities:
- Support 8000kbps baud rate
- Support CAN-FD bitrate switching (BRS)

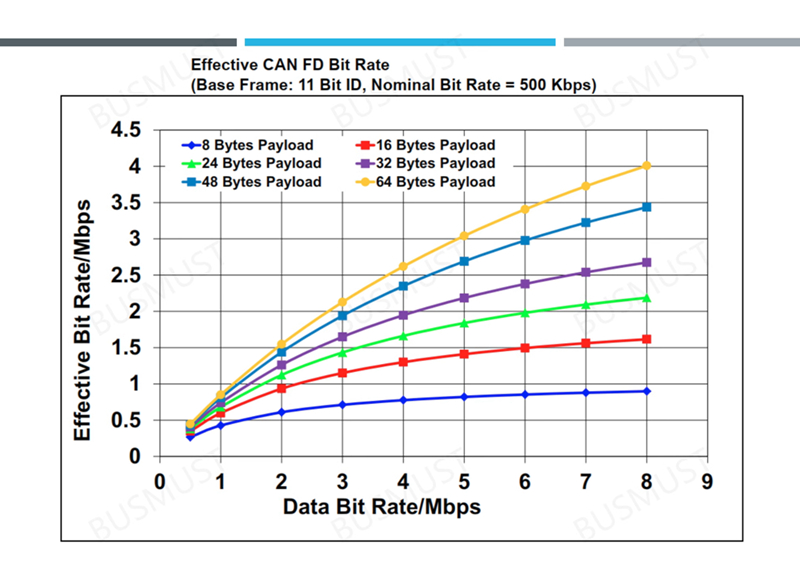

- Support CAN-FD ultra-large 64-byte message load: 64 bytes * 2500 packets/sec message sending and receiving without frame loss
- Each analyzer has passed the CAN-FD arbitration segment 500kbps + data segment 2000kbps classic vehicle scenario test before shipment

Customers who use ultra-high baud rates of over 2000kbps should pay attention:
- Use high-quality low-capacitance twisted pair cable with a total length of no more than 1.5m/4.9ft
- Each end of the twisted pair cable is connected with a 120-ohm terminal resistor
- Maintain good electromagnetic shielding of the twisted pair wire
- Set the sampling point location of the CANFD analyzer reasonably (75% recommended)

Attention:
- The above test data source is sent by imported PeakCAN-USB-Pro (supports CANFD) in PcanView, and the test condition is close to full load.
- The frame rate information for the above test comes from the automatic receiving statistics function in Network statistics in the BusMaster enterprise upper computer provided by this product.
- In the 64-byte long message mode, although the frame rate is less than 20,000fps, the data throughput is as high as 500kB/s, which is larger than the 8-byte short message!
