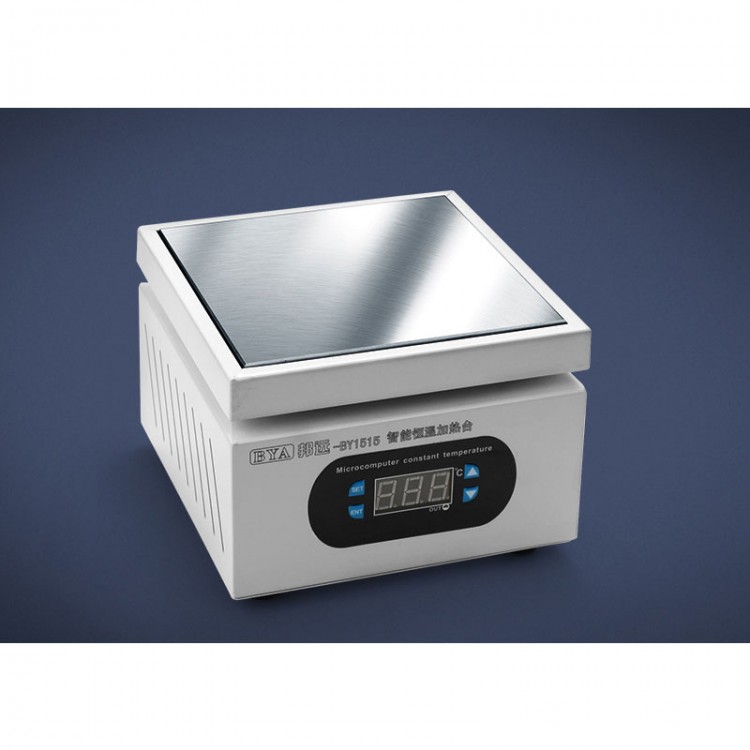

BYA BY1515 US 110V 150mmx150mm Preheating Station Preheating Plate for BGA Phone LCD Screen Repair

BYA BY1515 US 110V 150mmx150mm Preheating Station Preheating Plate for BGA Phone LCD Screen Repair

Features:
- Preheating station enables constant temperature: CPU intelligent temperature control and fast heating. Convenient to operate thanks to its simple structure and stable performance.
- Insulated and scald-resistant edging: The surrounding area of the heating table adopts a edging design to prevent burns caused by accidents during work.
- Easy to work with one machine in hand: It is cost-effective, enabling uniform heating.
- Heating plate made of aviation aluminum materials: It features high thermal conductivity, uniform heating, fast heating, and no deformation at high temperature. The aluminum plate is brushed.
- Intuitive digital display and uniform heating.
- Heat dissipation vents: It is fan-less. The vents of the shell help dissipate heat and improve the life of the chip's heating core.
- Adjustable temperature: You can set temperature via the buttons of the front panel.
- Three-pin power cord socket: The socket is designed with insulating material to prevent leakage. Next to the socket, there is a fuse to prevent burning, protect the heating core of the circuit, and facilitate replacement.
- Premium split power cord: 6.7mm thickened three-core power cord with a 3C certification is adopted. Its plug is not easy to fall off. The wire is anti-static, effectively eliminates the inductance, and is suitable for high-power equipment.
- Microcomputer chip: The chip makes the intelligent temperature control accurate and enables constant temperature.
- Set temperature: Press the SET button once for 1 second, then release the button. Set the temperature by pressing the up and down buttons on the right. Once you have set the desired temperature, press the ENT button once to save the temperature.
- Widely used thanks to stable performance.

Temperature & Applications:
300-400°C: Mold core preheating and for all kinds of metal materials.
200-300°C: BGA reballing.
200-250°C: LED bead welding and maintenance.
150-200°C: Electronic circuit board rework and preheating.
80-120°C: Melting, removing screens of mobile phones and frame removal.
30-100°C: Heating of laboratory reagents.
30°C: Medical trials, bacterial culture and liquid warming.

Specifications:
- Product model: BY1515
- Temperature range: 0-400°C
- Power: 500W
- Aluminum heating plate: 150mm x 150mm/5.9" x 5.9"
- Dimensions: 168mm x 168mm x 126mm/6.6" x 6.6" x 5"

Package Included:
- 1 x Preheating Station
- 1 x Power Cable

Packaging Details:
- G.W.: 2kg
