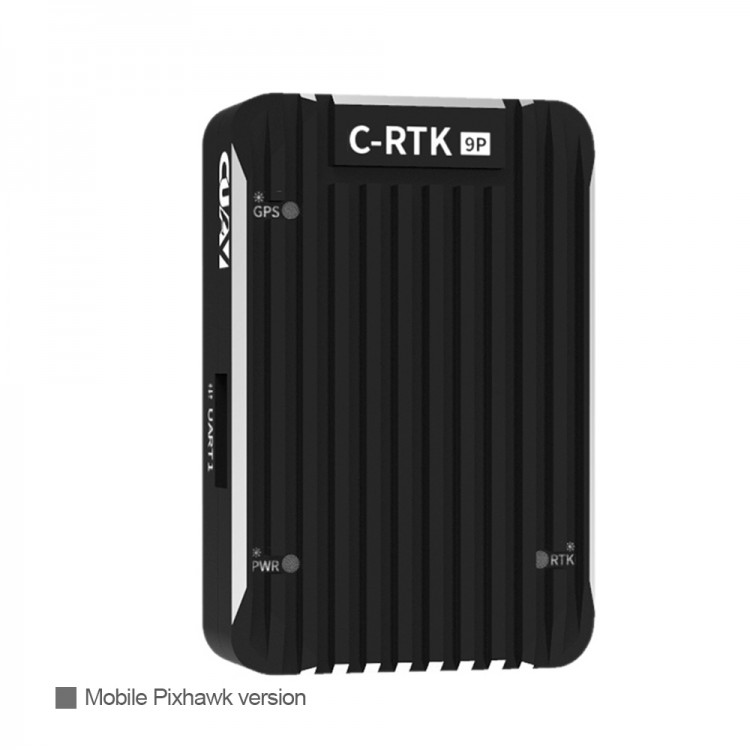

C-RTK 9P Mobile End GPS Positioning Module High Precision For Pixhawk Series Flight Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$688.00
  • Price in reward points: 6880 Reward Points: 69
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $674.24 $660.48 $639.84 $612.32 Contact US
Quantity:
Buy it now Add cart

You might like

C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For Pixhawk Flight Control Version

C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For Pixhawk Flight Control Version

$1,399.00

(0)
UM980 Module RTK Module High-Precision GNSS GPS Module for Drones Automobiles Surveying Mapping

UM980 Module RTK Module High-Precision GNSS GPS Module for Drones Automobiles Surveying Mapping

$198.54

(0)
C-RTK 9P Mobile End GPS Positioning Module High Precision For Pixhack Series Flight Control Version

C-RTK 9P Mobile End GPS Positioning Module High Precision For Pixhack Series Flight Control Version

$688.00

(0)
SwellPro Splash Drone 4 Waterproof Drone Quadcopter 2KG Load Capacity (Basic Version for Fishing)

SwellPro Splash Drone 4 Waterproof Drone Quadcopter 2KG Load Capacity (Basic Version for Fishing)

$2,544.13

(0)
SwellPro Splash Drone 4 Waterproof Drone Quadcopter 2KG Load Capacity (Basic Version for Rescue)

SwellPro Splash Drone 4 Waterproof Drone Quadcopter 2KG Load Capacity (Basic Version for Rescue)

$3,170.07

(0)
Ready-to-Fly DJI S800 EVO with A2 Autopilot + Zenmuse Z15 + Futaba 8FG + Futaba 7C

Ready-to-Fly DJI S800 EVO with A2 Autopilot + Zenmuse Z15 + Futaba 8FG + Futaba 7C

$7,999.99

(0)
C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For Pixhack Series Flight Control

C-RTK 9P Base & Mobile End GPS Positioning Module High Precision For Pixhack Series Flight Control

$1,399.00

(0)
SwellPro Splash Drone 4 Waterproof Drone Quadcopter Standard Version Load 2KG w/ Remote Control

SwellPro Splash Drone 4 Waterproof Drone Quadcopter Standard Version Load 2KG w/ Remote Control

$2,378.82

(0)

C-RTK 9P Mobile End GPS Positioning Module High Precision For Pixhawk Series Flight Control





Product Tutorial:
Please visit http://doc.cuav.net/gps/c-rtk/zh-hans/c-rtk-9p.html

Specifications:
- Satellite receiving: 184 channels; GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1| B2I, QZSS L1C/A L2C
- Navigation refresh rate: RTK up to 20 Hz
- Positioning accuracy: RTK 0.01M+1ppm CEP
- Convergence time: RTK＜10s
- Collection time:
* Cold start 24s
* Auxiliary start 2s
* Reacquisition 2s
- Sensitivity:
* Tracking and navigation: -167dBm
* Cold start: -148dBm
* Hot Start: -157dBm
* Reacquisition: -160dBm
- Anti-jamming: Active CW detection and removal; Onboard filter
- Security: Advanced anti-spoofing algorithm
- Communications port: UART x 2 & USB x 1
- Antenna: Multi-satellite and multi-frequency antenna
- Time pulse: Configurable: 0.25 Hz to 10 MHz
- Data protocols: For NMEA, UBX binary, RTCM version 3.3
- Voltage: 5V
- Temperature: -40℃ to +85℃
- Product size: 31.5mm x 48mm x 12mm
- Net Weight: 21g


Package Included:
Mobile End:
- 1 x C-RTK 9P
- 1 x Multi-Satellite Multi-Frequency Spiral Antenna
- 1 x MMCX-SMA Antenna Extension Cable 30cm & Bracket
- 1 x Type-C Data Cable For Pixhawk Series Flight Control
