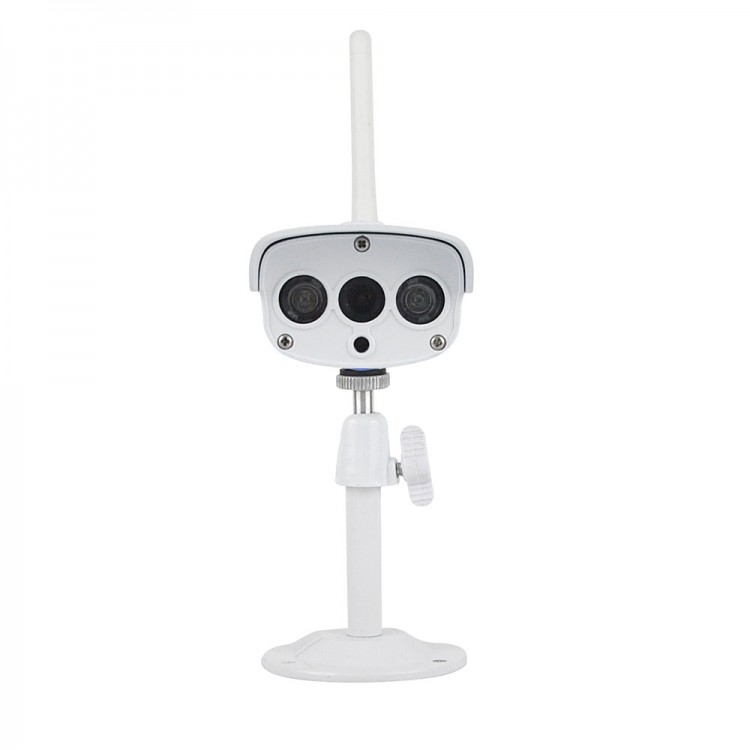

C7816WIP HD 720P WIFI IP Camera Outdoor IP67 Video CCTV Cam Onvif Wireless Support 64G TF Card
Product Specifications:
- Features:Fashionable design,small size, high rated waterproof grade, visible SD-card slot.
- System:O.S:Built in Linux
System security:Three level user authority management
Online visitor:Support 4 online visitors simultaneously
DDNS: No need domain name, support dynamic IP.
Protocol:ONVIF 2.0 protocol,high interoperability
Processor:Hisilicon processor, built in ARM926 @Max. 440MHz and high-speed video co-processor
Reset:Press 15s to reset back to factory default setting
- Collection:Image sensor:1/4inch 720p Progressive Scan CMOS
CMOS:Support AWB, AGC, BLC
Sensor size:3.84mm×2.16mm
SNR:≥39dB
Minimum illumination:0.8Lux/F1.4(colourful model),0.3Lux/F1.(B&W mode)
Lens/View Angle:3.6mm@F1.4/56.14˚
Night vision:Dual IR-CUT Filter auto switch, 2pcs 850nmΦ28Mil LED,15m IR distance
IR control:IR turned on: night vision view enabled, infrared ray, ICR auto detect.
IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
- Video:Compression format:H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding:Multi stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG
Resolution:720p/VGA/QVGA
Bit Rate:CBR/VBR, output bit rate range:128~4096kbps
Maximum frame rate:25fps
Image adjustment:Brightness, Contrast, Saturation, Chromaticity are adjustable
- Network:Port:10Mbps/100Mbps Adaptive/RJ45 port
Protocol:TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc
WIFI:WiFi802.11b/g/n
Security:WPS one-key setup WIFI
- Memory:Storage mode:Local storage/Client storage
Port:External Micro SD/TF card slot, no need disassemble to insert the SD card.
- Alarm:Detection:Motion detection
Action:Image E-mail/FTP video upload/mobile phone client
- Physical index:Rated voltage:DC12/2A±0.3V
Power consumption:Rated power:TBW W(IR opening )
Working environment:Working temperature:-20~70℃,working humidity :100%
Weight:Gross weight:(note:in kind prevail)
Package size:(L×W×H)
Installation:Wall mounted, drop ceiling, freely mounted bracket
IP Rating:IP67 (Waterproof soak)
Note:Only for reference
Package List:
- 1 x C7816WIP IP Camera
- 1 x Card slot
- 1 x Power supply AC
