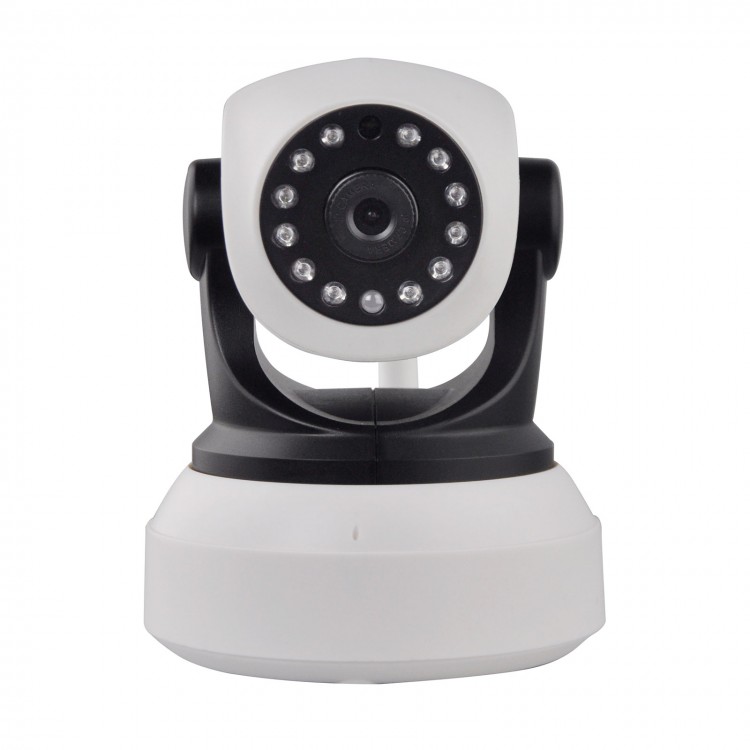

C7824WIP HD 720P Wireless IP Camera Wifi Onvif Video Surveillance Night Vision Security Network Infrared IR

C7824WIP HD 720P Wireless IP Camera Wifi Onvif Video Surveillance Night Vision Security Network Infrared IR





Product Specifications:
- Features:Software limit position, lower Pan Tilt failure rate
- System:OS:Embedded Linux OS
    System security:Three level user authority management
    Online users:Support 4 online visitors simultaneously
    DDNS:Free DDNS
    Control protocol:ONVIF 2.0 protocol, high interoperability
    Processor:Hisilicon:processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
    Reset:Long press for 15 seconds to restore back to factory settings
- Collection:Image sensor:1/4inch 720p Progressive scan CMOS sensor
    CMOS:Support AWB, AGC, BLC
    Imaging area:4.40mm×2.52mm
    SNR:≥41dB
    Minimum illumination:0.8Lux/F1.４（colourful model ）,0.3Lux/F1.（B&W mode）
    Lens/viewing angle:3.6mm@F1.４/56.14˚
    Night vision:Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
    IR control :IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
    IR turned off:night vision disabled, infrared ray off, ICR stay in day view mode.
- Video:Compression Format:H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
    Video coding process:Multi-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
    Resolution:720p/VGA/QVGA
    Bit Rate:CBR/VBR, output bit rate range:128～4096kbps
    Max.Frame rate:25fps
    Picture Adjustment:Contrast, brightness, saturation, chroma are adjustable.
- Audio:Input:Built in -48dB Microphone
    Output:Built in speaker(8Ω1Ｗ)`
    Sampling frequency / width:8KHz/16bit
    Compression format:ADPCM/32kbps
- Network Interface:10Base-T / 100Base-TX, RJ45 connector
    Network Protocol:TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIF.etc.
    WIFI:WiFi802.11b/g/n
    Antenna:3dBi antenna,stronger signal ,more stable
    Wireless network security:One key setup WiFi ,don't need network cable .
- Storage:Storage mode:Local storage / client storage
    Interface:Micro SD/TF,support 64G TF record.
- Pan-Tilt:P/T:Pan:270°,Tilt:80°
    Preset Postion :Support up to 15 preset postions
    Limit method:Software limit position, more accurate preset positions,lower Pan Tilt failure rate.
- Alarm:Motion detection:Support motion detection
    Alarm action:Video upload via email/FTP server,Mobile App alarm
- Physical index:Rated Voltage:DC5/2A±0.3V
    Power comsumption:Rated power:3.0Ｗ(IR ON)
    Working environment:Working Temperature:-20～70℃,Working Humidity 90%
    Weight:Gross Weight:330g(Note: in kind prevail)
    Housing material:ABS plastics
    Camera size:145 x 110 x 125 mm (L×W×H)
    Installation:Wall mounting, ceiling mounting

Package List:
- 1 x C7824WIP IP Camera
- 1 x Power supply
- 1 x Screw
- 1 x Hanging plate
- 1 x Instructions
