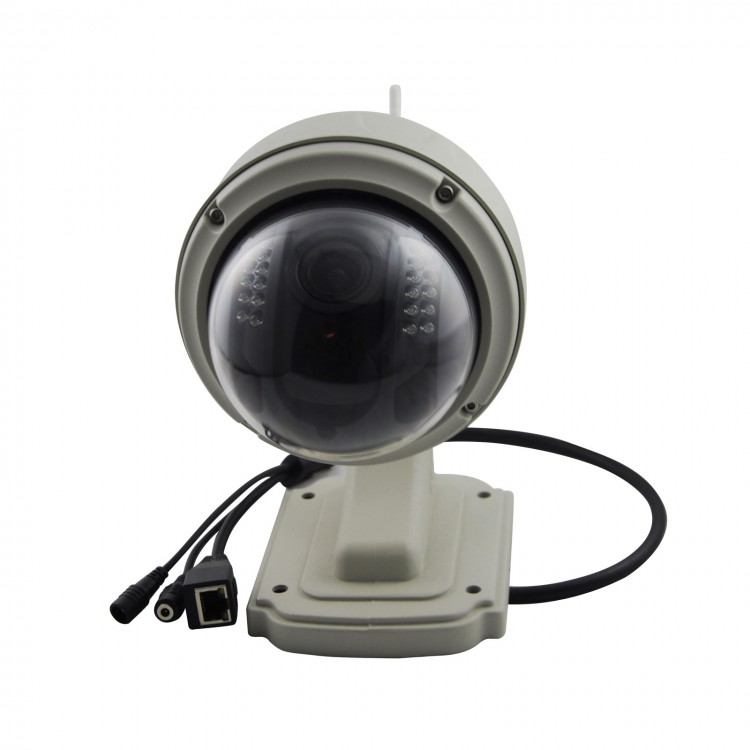

C7833WIP-X4 Outdoor ONVIF PTZ 4X Zoom P2P Plug Wireless WiFi HD 720P IP Dome Camera Micro SD Card

C7833WIP-X4 Outdoor ONVIF PTZ 4X Zoom P2P Plug Wireless WiFi HD 720P IP Dome Camera Micro SD Card


Product Features:
- Feature:Feature:Auto focusing
- System:OS:Linux  Built in Linux
    System security:Three level user authority management
    Online user:4 user view simultaneously
    DDNS:Free DDNS
    Protocol:ONVIF 2.4protocol
    Processor:Hisilicon processor,built in ARM926 @Max. 440MHz and high-speed video co-processor
- Collect:Image sensor:1/4inch 720p Progressive Scan CMOS
    Sensor performance:Support AWB, AGC, BLC
    Sensor size:3.84mm×2.16mm
    SNR:≥39dB
    Mini lumination:0.8Lux/F1.４（color mode）,0.3Lux/F1.(B&W mode)
    Lens/viewing angel: 2.8~12mm @ F1.4 Optical Power Zoom + Focus Lens,Focus can be synchronized when zoom.
    FOV: Horizontal:73--23.4 ° diagonal 87.6--27.8 °
    Night vision:Dual IR-Cut filter auto switch,22pcs 850nmΦ5mm LED,15m night vision
    IR control:"IR turned on: night vision view enabled, infrared ray, ICR auto detect.
   IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode."
- Video:Compression:H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
    Video coding :720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
    Resolution:720p/VGA/QVGA
    Bit rate:CBR/VBR output bit rate range:128～4096kbps
    Max frame rate:30fps/24fps（720p）
    Image adjust:Brightness, Contrast, Saturation, Sharpness are adjustable
- Network:Interface:10Mbps/100Mbps self-adaptable/RJ45 port
    Protocol:TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P,等
    WiFi:WiFi802.11b/g/n
    WiFi configuration:Software setup
- Storage:Storage mode:Local/client storage,up to 64GTF card.
    Interface:Micro SD
- PT:Rotate angel:Tilt：90°，Pan：355°
    Preset position:16 preset positions
- Alarm:Alarm detection:Motion detection
    Alarm action:image E-mail/FTP upload/smartphone push
- Physical index:Rated voltage:DC5±0.3V
    Power comsumption:Rated voltage:3.5Ｗ(IR turned on)/Max power consumption:7W(PT turned on)
    Working environment:Working temperature：-10～50℃，working humidity<90%
    Weight I Gross weight:1200g (only for reference)
    Packing size:250x170x260mm (LxWxH）
- Note: Only for reference

Package List:
- 1 x C7833WIP-X4
WIP IP Camera
- 1 x Network cable
- 1 x Power supply AC
- 1 x CD paper
- 4 x Screw
