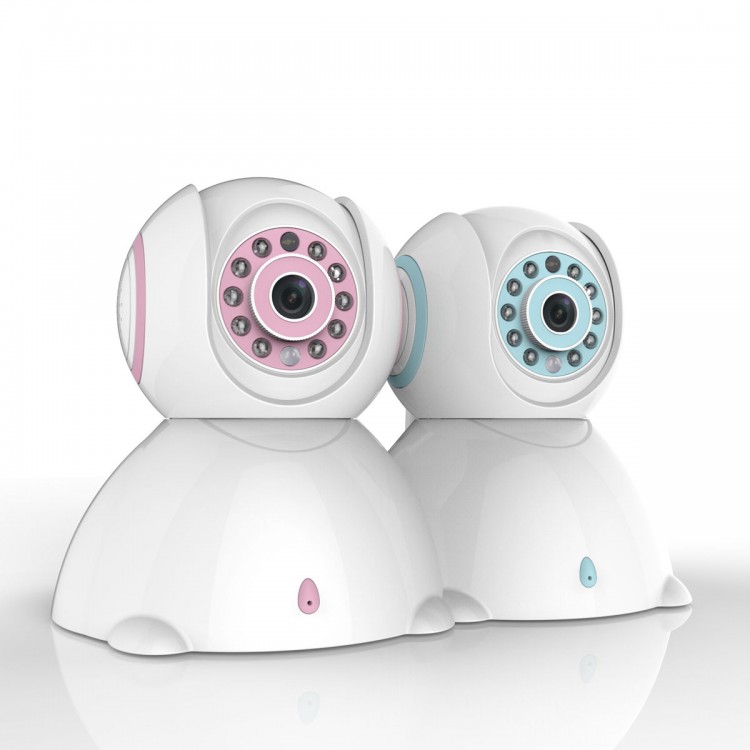

C7842WIP HD 720P Wireless IP Camera Wifi Network CCTV Security H.264 Indoor P2P Cam Baby Monitor Real View

C7842WIP HD 720P Wireless IP Camera Wifi Network CCTV Security H.264 Indoor P2P Cam Baby Monitor Real View


Product Specifications:
- Features:Function Feature:software limit  controlled PT rotator ensures low malfunction rate; One Key Wifi configuration.
- System:Operation System:Embedded Linux
    System Security:Three level user authority management
    Online Visitor:supports 4 online visitors simultaneously
    DDNS:Free DDNS
     Protocol:ONVIF 2.0, high interoperability
    Processor:Hisilicon:processor, integrated ARM926 @Max. 440MHz and high-speed video co-processor.
    Reset:Long press for 15 seconds to restore back to factory settings
- Image Capturing:Image Sensor:1/4 inch 720P progressive CMOS sensor
    Sensor Function:AWB, AGC, BLC supported
    Imaging Area:4.40mm×2.52mm
    SNR:≥41dB
    Minimum illumination:0.8Lux/F1.４ (full color mode), 0.3Lux/F1 (black white mode)
    Lens/viewing angle:3.6mm@F1.４/56.14˚
    Night Vision :dual IR-Cut filter automatic switch, 11pcs 850nm IR LEDs, 10m night vision distance
    IR Control: "IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
    IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. "
- Video:Compression standard:H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
    Video Coding:multiple video stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG screenshot
    Resolution:720p/VGA/QVGA
    Bit Rate:CBR/VBR,output bit rate is 128～4096kbps
    Maximum Frame rate:25fps
    Image Adjustment:brightness, contrast, saturation, chroma are adjustable
- Audio:Input:built-in 48db microphone
    Output:built-in speaker (8Ω1Ｗ)
    Sampling Frequency:/Bit Width:8KHz/16bit
    Compression Standard/Bit Rate:ADPCM/32kbps
- Network:Ethernet Socket:10Mbps/100Mbps self adaptable/RJ45 interface
    Internet Protocol:TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P etc.
    Wireless Internet:WiFi802.11b/g/n
    Antenna:3dBi antenna, stronger signal,  more stable
     Protocol:one key Wifi confugration, no network cable ever needed
- Storage:Storage:local storage/client terminal storage, maximum 64G storage
    Interface:Micro SD
- Pan/Tilt Rotation:Angle:Pan 355°/Tilt 80°
    Pre-set Position:15 pre-set positions
    Limit Position:software limited controlled rotator ensures more accurate pre-set positions and lower malfunction.
- Alarm:Alarm Detection:motion detection
              Alarm Action:E-mail image /FTP videos upload/smart phone APP action
- Physical Parameters:Rated Voltage:DC5/2A±0.3V
    Power comsumption:3.0Ｗ(with IR LEDs on)
    Working Environment :Working Environment: -20～70℃,working humidity: 90%
    Gross Weight:330g(subject to final products)
    Housing Material:ABS plastic
    Camera Size:110mm*130mm
    Installation:wall mounting, ceiling mounting

Package List:
- 1 x C7842WIP IP Camera
